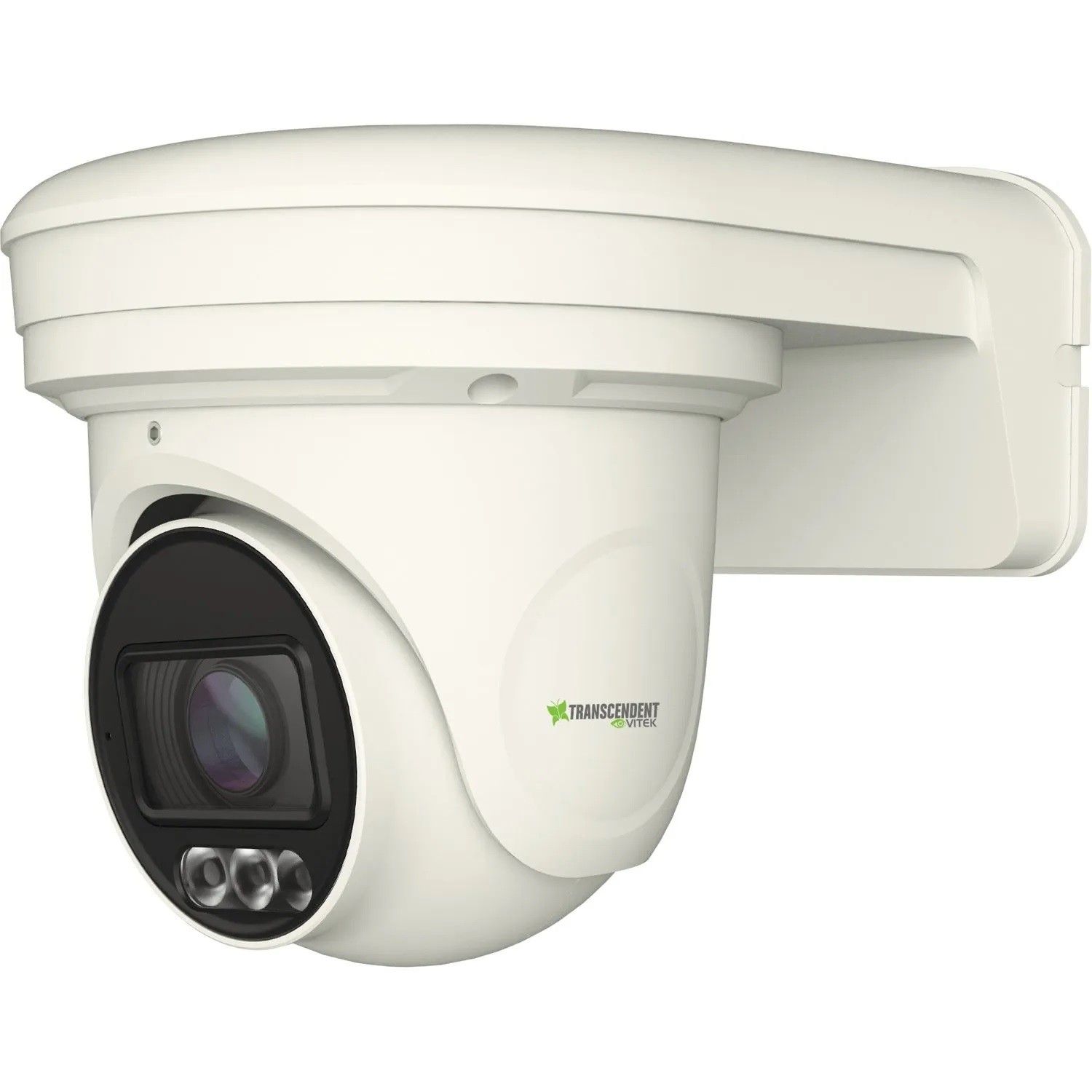

Vitek VTC-TNT4WFCS-2 4 Megapixel Outdoor Network IP Dome Camera with 2.8mm Lens
SKU
VTC-TNT4WFCS-2
Model No
VTC-TNT4WFCS-2
$315.00
Product Highlights
- 1/1.79” CMOS 4 MegaPixel Progressive Scan CMOS Sensors
- Up to 30fps live view @ 4MP (2688 × 1520)
- 2.8mm Fixed Iris Lens with F1.0 Aperture for ultra-low light sensitivity
- OPTI-COLOR offers unparalleled full-color night vision capabilities, capturing vivid, high-quality images in ultra-low light conditions— transforming nighttime security with clarity never before achieved in surveillance cameras!
- KNIGHT GUARD Illuminates the area with Bright White High-Intensity Light, making it difficult for any intruder to remain unseen
Speak to an expert
Discover the Vitek VTC-TNT4WFCS-2 4 Megapixel Outdoor Network IP Dome Camera, designed to ensure unparalleled surveillance performance regardless of lighting conditions. This advanced camera features 4MP resolution, intelligent analytics, and superior low-light capabilities, making it an ideal choice for all your security needs. With its robust analytics features and easy installation options, you'll have complete control and peace of mind over your surveillance environment.
Vitek VTC-TNT4WFCS-2 Camera Features
- 1/1.79” CMOS: Equipped with 4 MegaPixel Progressive Scan CMOS Sensors, delivering detailed imaging quality.
- High Frame Rate: Supports up to 30fps live view at 4MP resolution (2688 x 1520) for smooth video playback.
- 2.8mm Fixed Iris Lens: F1.0 aperture lens for enhanced performance in ultra-low light environments.
- OPTI-COLOR Technology: Ensures vivid, high-quality, full-color night vision capabilities, offering clarity that transforms nighttime security.
- KNIGHT GUARD: Bright White High-Intensity Light to illuminate areas, making it challenging for intruders to hide.
- Wide Illumination Range: Knight Guard effective range of up to 100’ for comprehensive coverage.
- Multiple Streaming Options: Supports five video streams (H.265+, H.265, H.264+, H.264 & MJPEG) for versatile compatibility.
- XD-DNR Noise Reduction: Advanced 3D & 2D-DNR to enhance video quality by reducing noise.
- Backlight and Highlight Compensation: Features such as DeFog and ROI improve overall video performance in challenging conditions.
- GEN IV Advanced Analytics: Includes various intelligent features like Human/Motor Vehicle Classification, Face A.I., and more for enhanced security monitoring.
- Face A.I. 4.0: Advanced facial recognition and detection capabilities for improved identification.
- Comprehensive Video Meta Data: Captures multiple attributes to analyze human and vehicle movements efficiently.
- Audio Capabilities: Includes 1 Ch. Audio In + 1 Ch. Audio Out + built-in microphone for enhanced audio monitoring.
- Alarm Integration: 1 Ch. Alarm In + 1 Ch. Alarm Out for additional security integration.
- Local Recording: Built-in MicroSD slot supports local recording up to 1TB for added data security.
- IP67 Weather Resistance: Designed to withstand harsh weather conditions, ensuring durability and reliability.
- Installation Flexibility: Optional J-Box and Mount Adapters available for customizable installation options.
- Power Options: Supports both 12VDC and PoE (Power over Ethernet) for convenient operation.
- Warranty: Comes with a 3-Year Warranty for peace of mind and assurance on your investment.
Vitek VTC-TNT4WFCS-2 Detailed Camera Specifications
| Camera Type | Outdoor Network IP Dome |
| Sensor Type | 1/1.79” CMOS |
| Resolution | 4 Megapixel (2688 x 1520) |
| Lens | 2.8mm Fixed Iris Lens |
| Aperture | F1.0 |
| Frame Rate | Up to 30fps |
| Low Light Technology | OPTI-COLOR |
| Illumination Range | Up to 100’ (Knight Guard) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Audio Inputs/Outputs | 1 Ch. Audio In + 1 Ch. Audio Out |
| Local Storage | MicroSD Card Slot (up to 1TB) |
| Weather Resistance | IP67 |
| Power Options | 12VDC & PoE |
| Warranty | 3 Years |
SKU  | VTC-TNT4WFCS-2 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Back Light Compensation, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.15” × 4.30” (130.8mm × 109.2mm) |
| Electronic Shutter | Auto or manual mode; manual mode: 1 / 2s ~ 1 / 100000 s |
| Image Device | 1/ 1.79 “CMOS |
| Operating Humidity | less than 95 % (non-condensing) |
| Power Consumption | < 5.5W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| S/N Ratio | ≥50dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | XD-DNR (3D & 2D-DNR) |
| Rotation Angle | 0°~360° |
| IR Distance | 30.48m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
