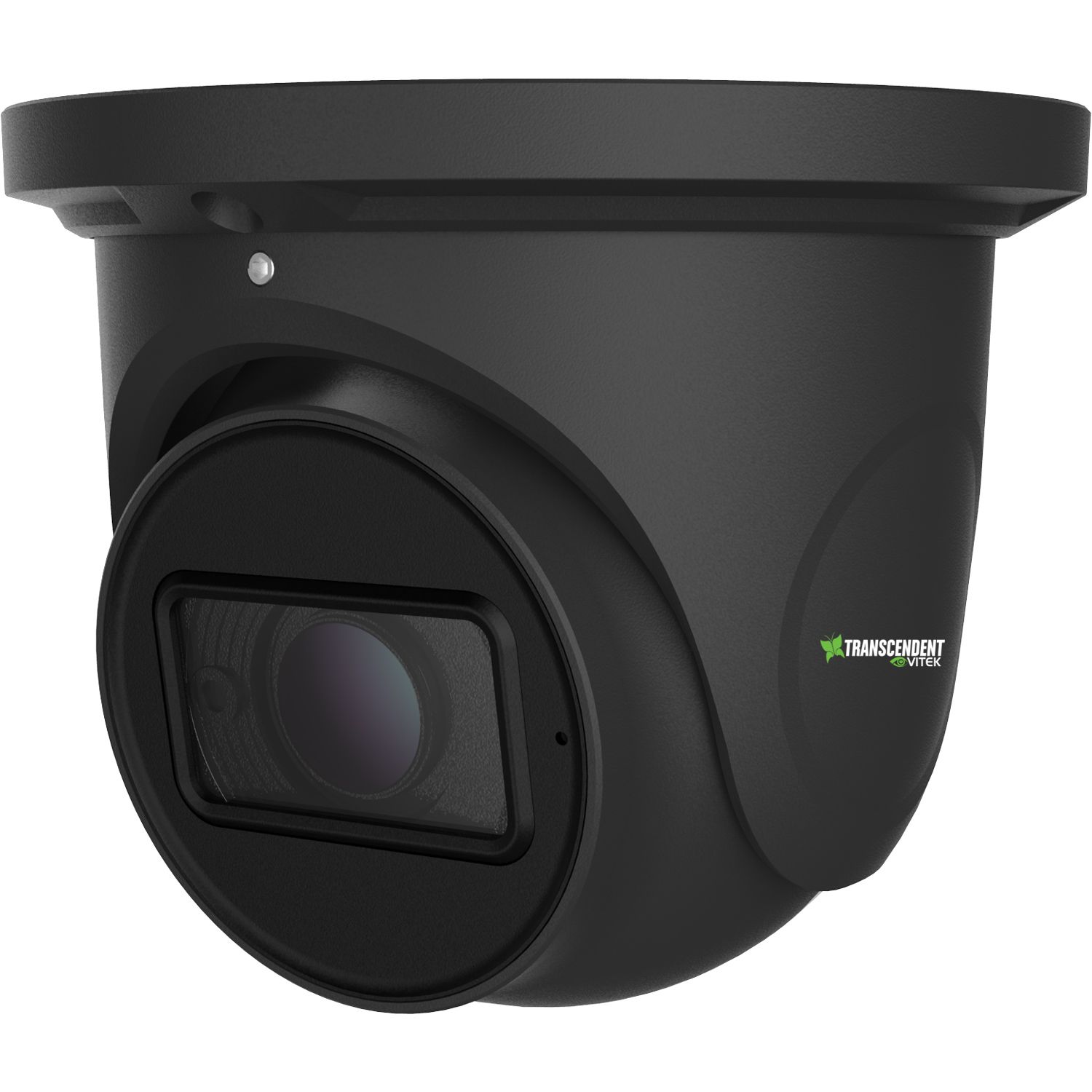

Vitek VTC-TNT4RMA4B 4 Megapixel Network Outdoor IR Dome Camera with 2.8-12mm Lens, Charcoal
SKU
VTC-TNT4RMA4B
Model No
VTC-TNT4RMA4B
$311.11
Product Highlights
- 1/3” 4 MegaPixel Progressive Scan Starlight CMOS Sensor
- NDAA Compliant
- Up to 30fps @ 4 MegaPixel (2592 × 1520)
- Matrix IR (up to 165' IR Range)
- True Wide Dynamic Range (120dB)

Speak to an expert
The Vitek VTC-TNT4RMA4B is an advanced 4 Megapixel network outdoor IR dome camera designed for security and surveillance needs. It features a 2.8-12mm varifocal lens that provides exceptional clarity and flexibility for diverse monitoring scenarios. With cutting-edge analytics including face detection and target counting, this camera ensures you never miss critical events. Its durable metal housing, IP67 weather resistance rating, and easy installation make it ideal for outdoor use, while remote viewing capabilities via CMS and mobile apps enhance its usability.
Vitek VTC-TNT4RMA4B Camera Features
- 1/3″ 4 megapixel Progressive Scan Starlight CMOS Sensor: Offers clear images, even in low-light conditions, ensuring reliable security monitoring at all times.
- NDAA Compliant: Guarantees adherence to national security standards, ensuring peace of mind for your surveillance investments.
- Up to 30fps @ 4 megapixel (2592-1520): Provides smooth video playback, essential for capturing fast-moving subjects.
- Matrix IR (up to 165' IR range): Ensures comprehensive nighttime visibility, making it suitable for monitoring expansive areas.
- True Wide Dynamic Range (120dB): Enhances image detail in high-contrast scenes, enabling better recognition of critical details.
- True Mechanical Day/Night function by ICR: Automatically switches between day and night modes for optimal image quality around the clock.
- 3D-DNR (Digital Noise Reduction): Reduces noise in low-light footage, enhancing overall image clarity and quality.
- Gen. IV Advanced Analytics: Includes features like face detection and target counting to optimize security monitoring and operational efficiency.
- Multiple Compression Formats (H.265+, H.265, H.264+, H.264, MJPEG): Provides flexibility in data storage and bandwidth management.
- 1 Ch. Audio In + Built-in Mic: Allows audio capture alongside video, adding an extra layer of surveillance detail.
- Remote Viewing via CMS, Internet Explorer, iOS & Android Apps: Allows convenient access and control from anywhere, enhancing the user experience.
- ONVIF Compliant: Ensures compatibility with a variety of third-party devices and systems.
- MicroSD Card Slot for Local Recording (256GB): Offers the ability to store footage locally, ensuring evidence is always accessible.
- IP67 Weather Resistance: Protects against dust and water, making the camera perfect for outdoor conditions.
- Optional Mounting Accessories: Offers various installation options to suit different environments and mounting needs.
- 12VDC & PoE (Power over Ethernet) Operation: Simplifies installation by allowing power and data to be transmitted over a single cable.
Vitek VTC-TNT4RMA4B Detailed Specifications
| Camera Sensor | 1/3″ 4 Megapixel Progressive Scan Starlight CMOS |
| Video Resolution | 2592-1520 |
| Frame Rate | Up to 30fps |
| IR Range | Up to 165' |
| Wide Dynamic Range | True Wide Dynamic Range (120dB) |
| Noise Reduction | 3D-DNR (Digital Noise Reduction) |
| Lens Type | Motorizied 2.8-12mm Varifocal Lens |
| Analytics | Gen. IV advanced analytics suite included |
| Audio Input | 1 Ch. Audio In + Built-in Mic |
| Remote Access | CMS, Internet Explorer, iOS & Android Apps |
| Storage | MicroSD Card Slot (up to 256GB) |
| Weather Rating | IP67 |
| Power Options | 12VDC & PoE |
| Dimensions | Compact design for versatile mounting |
| SKU | VTC-TNT4RMA4B |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Vitek |
| NDAA | Compliant |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.15” × 4.30” (130.8mm × 109.2mm) |
| Image Device | 1/3” 4.0 Megapixel Progressive Scan CMOS |
| Minimum Scene Illumination | 0.005 [email protected], AGC ON; 0 lux with IR |
| Operating Humidity | < 95% |
| Operating Temperature | -22° ~140° |
| Power Consumption | 350mA (LEDs Off) / 800mA (LEDs On), <8W |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D & 2D-DNR |
| IR Distance | 50.92m/165ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
