Vitek VTC-TNB8MEA 8 Megapixel Network IP Outdoor IR Bullet Camera with 2.8-12mm Lens
SKU
VTC-TNB8MEA
Model No
VTC-TNB8MEA
$373.92
Product Highlights
- 1/2.8” 8.0 MegaPixel (4K) CMOS Image Sensor
- Up to 20fps@8MP (3840 × 2160), Up to 30fps@6MP and below
- 2.8~12mm Motorized Varifocal Lens
- Matrix IR (up to 165’ IR Range), White Light (up to 130’)
- True Wide Dynamic Range (120dB)
Speak to an expert
Introducing the Vitek VTC-TNB8MEA 8 Megapixel Network IP Outdoor IR Bullet Camera, designed for high-performance surveillance and user-friendly features. This advanced camera delivers stunning 4K resolution, ensuring that you capture every detail. With its motorized varifocal lens and superior night vision capabilities, the VTC-TNB8MEA is perfect for all your outdoor monitoring needs.
Vitek VTC-TNB8MEA Camera Features
- 8.0 MegaPixel CMOS Sensor: Experience crystal clear 4K video quality, providing unparalleled detail for enhanced security monitoring.
- High Frame Rate: Capable of recording at up to 20fps in 8MP resolution and 30fps in lower resolutions, ensuring smooth and fluid video playback.
- Varifocal Lens: The 2.8~12mm motorized lens allows for flexible field of view adjustments, making it easier to focus on specific areas of interest.
- Impressive Night Vision: With a maximum IR range of 165 feet and white light range of 130 feet, this camera ensures visibility even in complete darkness.
- True Wide Dynamic Range: Boasting a 120dB WDR feature, you can expect improved clarity in high-contrast lighting conditions, making it ideal for varied environments.
Detailed Camera Specifications
| Sensor Type | 1/2.8” 8.0 MegaPixel (4K) CMOS |
| Resolution | Up to 3840 × 2160 (8MP) |
| Frame Rate | Up to 20fps@8MP, Up to 30fps@6MP and below |
| Lens Type | 2.8~12mm Motorized Varifocal Lens |
| IR Range | Up to 165 feet |
| White Light Range | Up to 130 feet |
| Dynamic Range | True Wide Dynamic Range (120dB) |
SKU  | VTC-TNB8MEA |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |

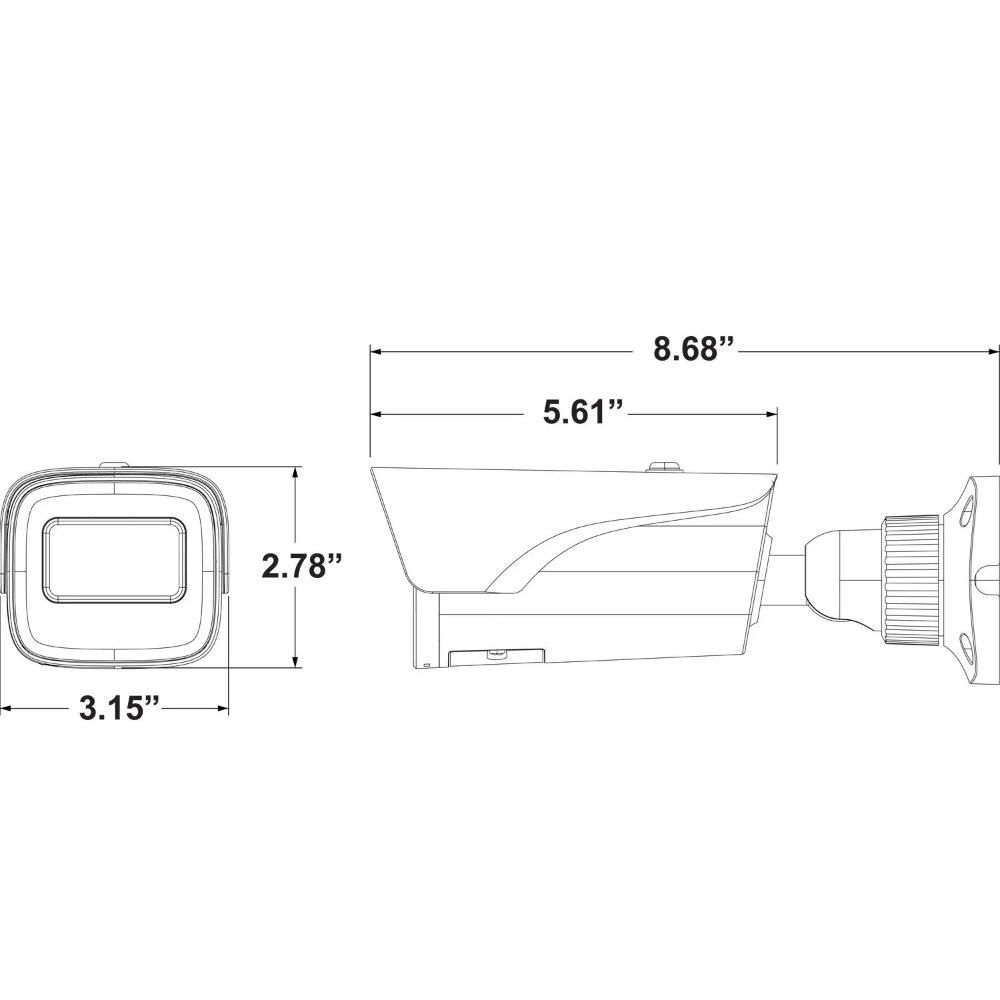

| Dimensions (W x H) | 8.68 × 3.15 × 2.78” (220.5 × 80.1 × 70.5mm) |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Image Device | 1/2.8” 8MP (4K) Progressive Scan CMOS |
| Minimum Scene Illumination | 0.02 lux @F1.6, AGC ON; 0 lux with illumination on |
| Operating Humidity | 95% (non-condensing) |
| Operating Temperature | -22°F~140°F (-30°C~60°C), |
| Power Consumption | ≤12W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Weatherproof | IP67 |
| Angle of View | Horizontal: 97.3°~34°, Vertical: 52.3°~17.7°, Diagonal: 116°~37° |
| Rotation Angle | 0°~360° |
| IR Distance | 50m/165ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
