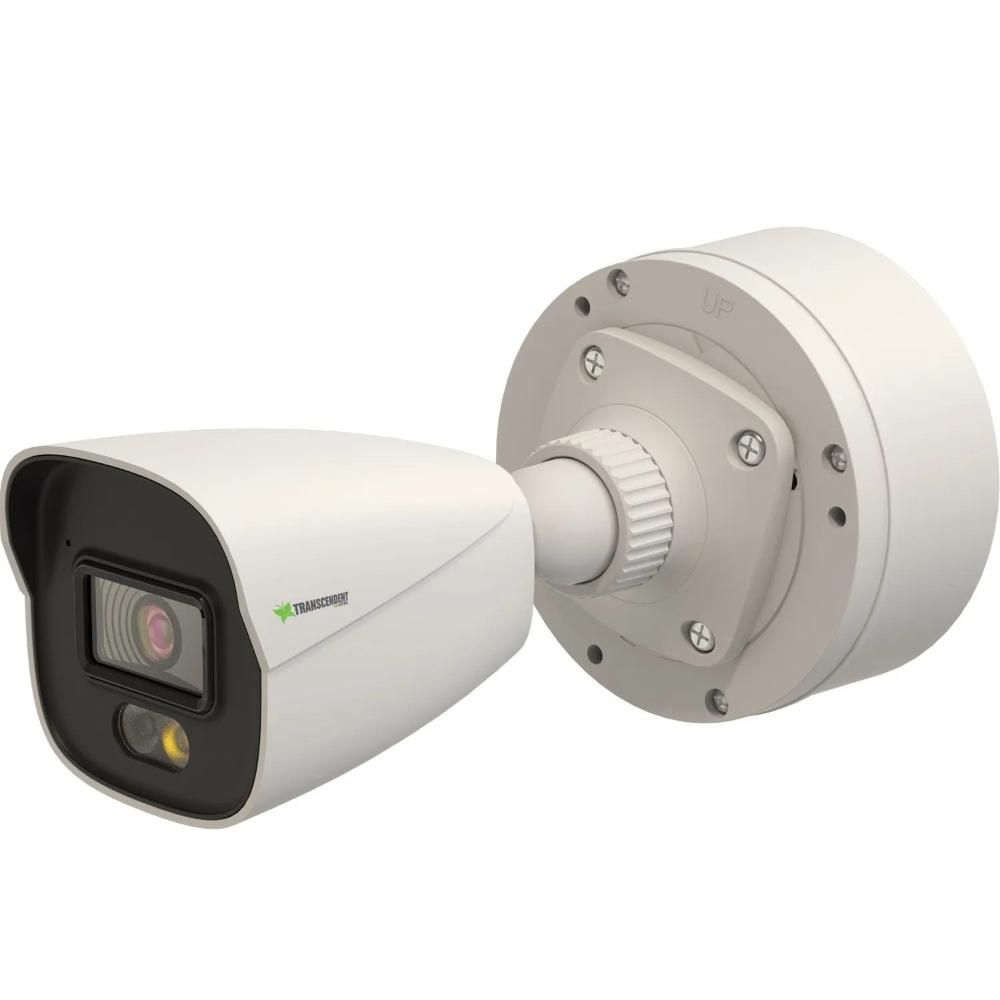

Vitek VTC-TNB8FEA-2 8 Megapixel Network IP Outdoor IR Bullet Camera with 2.8mm Lens
SKU
VTC-TNB8FEA-2
Model No
VTC-TNB8FEA-2
$248.00
Product Highlights
- 1/2.8” 8.0 MegaPixel CMOS Image Sensor
- Up to 20fps@8MP (3840 × 2160), Up to 30fps @ 6MP and Lower
- 2.8mm Fixed Iris Lens
- Dual illumination with Matrix IR and Knight Guard white light (up to 100’ Range)
- Full-color night vision powered by Knight Guard’s White Light LEDs
Speak to an expert
Introducing the Vitek VTC-TNB8FEA-2 8 Megapixel Network IP Outdoor IR Bullet Camera, a high-performance surveillance solution designed for reliable security in outdoor environments. With advanced imaging capabilities and robust night vision features, this camera ensures clear monitoring day and night, making it an essential addition to any security system.
Vitek VTC-TNB8FEA-2 Camera Features
- High-Resolution Imaging: 1/2.8” 8.0 MegaPixel CMOS Image Sensor delivers crisp, detailed images for optimal surveillance.
- Impressive Frame Rates: Captures video up to 20fps at 8MP (3840 × 2160) and up to 30fps at 6MP and lower for smooth motion clips.
- Wide-Angle Viewing: The 2.8mm Fixed Iris Lens provides a broad field of view, perfect for monitoring large areas.
- Advanced Night Vision: Dual illumination with Matrix IR and Knight Guard white light extends visibility up to 100’ for dependable night security.
- Full-Color Night Vision: Knight Guard’s White Light LEDs offer vibrant full-color images in low-light conditions, enhancing visibility at night.
Vitek VTC-TNB8FEA-2 Detailed Specifications
| Image Sensor | 1/2.8” 8.0 MegaPixel CMOS |
| Resolution | Up to 8MP (3840 x 2160) |
| Frame Rate | Up to 20fps at 8MP, 30fps at 6MP and lower |
| Lens Type | Fixed Iris 2.8mm Lens |
| Night Vision | Dual illumination (Matrix IR + Knight Guard White Light) |
| Night Vision Range | Up to 100 feet |
| Special Features | Full-color night vision with White Light LEDs |
SKU  | VTC-TNB8FEA-2 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 6.60” × 2.93” × 2.94” (167.6mm × 75mm x 74.6mm) |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Image Device | 1/2.8” CMOS |
| Minimum Scene Illumination | 0.02 lux @F1.6, AGC ON; 0 lux with illumination on |
| Operating Humidity | 95% (non-condensing) |
| Operating Temperature | -22°F~140°F (-30°C~60°C), |
| Power Consumption | ≤7W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Weatherproof | IP67 |
| Angle of View | Horizontal FoV: 106°, Vertical FoV: 57°, Diagonal FoV: 124° |
| Rotation Angle | 0°~360° |
| IR Distance | 30m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
