Vitek VTC-TNB8FADW-2 Transcendent 8 MegaPixel (4K) Knight Guard + Active Deterrence Fixed IP Bullet Camera

SKU
VTC-TNB8FADW-2
Model No
VTC-TNB8FADW-2
$368.89
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/1.8″ 8.0 MegaPixel (4K) CMOS Image Sensor
  • Up to 30fps live view @ 8 MegaPixel (4K) (3840 X 2160)
  • 2.8mm Fixed Iris Lens
  • Vitek Knight Guard Full Color at Night Camera
  • Active Deterrence: Alternate Flashing Red + Blue Warning Lights & User-
    Defined Warning / Command Voice Import

Transcendent Series 8MP (4K) Full Color @ Night + Active Deterrence Cameras boast rich color and clear details in all light conditions, including total darkness. Combined with Active Deterrence Capabilities, these Cameras employ revolutionary multi-layer security features to audibly warn and ward off intruders or trespassers in real-time, bringing advanced perimeter protection and strengthened deterrence to nearly any security application.

Vitek VTC-TNB8FADW-2 Camera Features

  • Image Sensor: 1/1.8” 8.0 MegaPixel (4K) CMOS - Captures stunning image quality with vibrant colors and fine details.
  • High Frame Rate: Up to 30fps live view @ 8 MegaPixel (4K) (3840 × 2160) - Ensures smooth video playback and real-time surveillance.
  • Fixed Iris Lens: 2.8mm - Provides a wide field of view, making it ideal for monitoring large areas.
  • Full Color at Night: Vitek Knight Guard Technology - Allows for clear, colored images even in low-light environments.
  • Active Deterrence: Flashing Red + Blue Lights & Custom Audio Alerts - Deters potential intruders with visible and audible warnings.
  • Illumination Range: White Light or Matrix IR / Up to 130’ - Enhances visibility in complete darkness, ensuring comprehensive coverage.
  • True Wide Dynamic Range: 120dB - Balances lighting conditions for clear imaging in both bright and dark areas.
  • Triple Streaming: H.265+, H.264+ & MJPEG Compression - Offers flexible video quality and bandwidth management options.
  • Noise Reduction: XD-DNR (3D & 2D-DNR) - Reduces image noise for clearer visuals in challenging conditions.
  • Advanced Features: GEN IV Analytics (Detection, Counting, Recognition) - Provides sophisticated monitoring capabilities for enhanced security awareness.
  • Audio Options: 1 Ch. Audio In/Out, Built-in Mic & Speaker - Facilitates interaction and recording capabilities for a complete surveillance experience.
  • Alarm Capabilities: 1 Ch. Alarm In/Out - Integrates with external security systems for increased safety.
  • Local Storage: Built-in MicroSD Slot (up to 256GB) - Allows for easy local recording and retrieval of footage.
  • Smart Alarm Features: Motion Detection, Sensor Alarms - Automatically alerts the user to security breaches.
  • Weather Resistance: IP66 Rating - Ensures durability and reliable operation in harsh weather conditions.
  • Power Options: 12VDC & PoE - Provides flexible and convenient power solutions for installation.

Vitek VTC-TNB8FADW-2 Detailed Specifications

FeatureDetails
Image Sensor1/1.8” 8.0 MegaPixel (4K) CMOS
Resolution3840 × 2160
Frame RateUp to 30fps
Lens Type2.8mm Fixed Iris Lens
Night ModeFull Color at Night
Active DeterrenceFlash Red + Blue Lights & Audio Alerts
Infrared RangeUp to 130’
Dynamic RangeTrue Wide Dynamic Range (120dB)
Streaming FormatsH.265+, H.264+, MJPEG
Noise ReductionXD-DNR (3D & 2D-DNR)
8MP AnalyticsAdvanced Video Analytics Features
Audio Support1 Ch. Audio In/Out, Built-in Mic, Speaker
Alarm Input/Output1 Ch. Alarm In/Out
Storage CapacityMicroSD Slot (up to 256GB)
Smart Alarm FeaturesMotion and Sensor Alarms
Weather RatingIP66 Weather Resistance
Power Requirements12VDC & PoE
SKU  VTC-TNB8FADW-2
Features  Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range
Manufacturer  Vitek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    8 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Weather Resistant
Voltage  12vDC, PoE

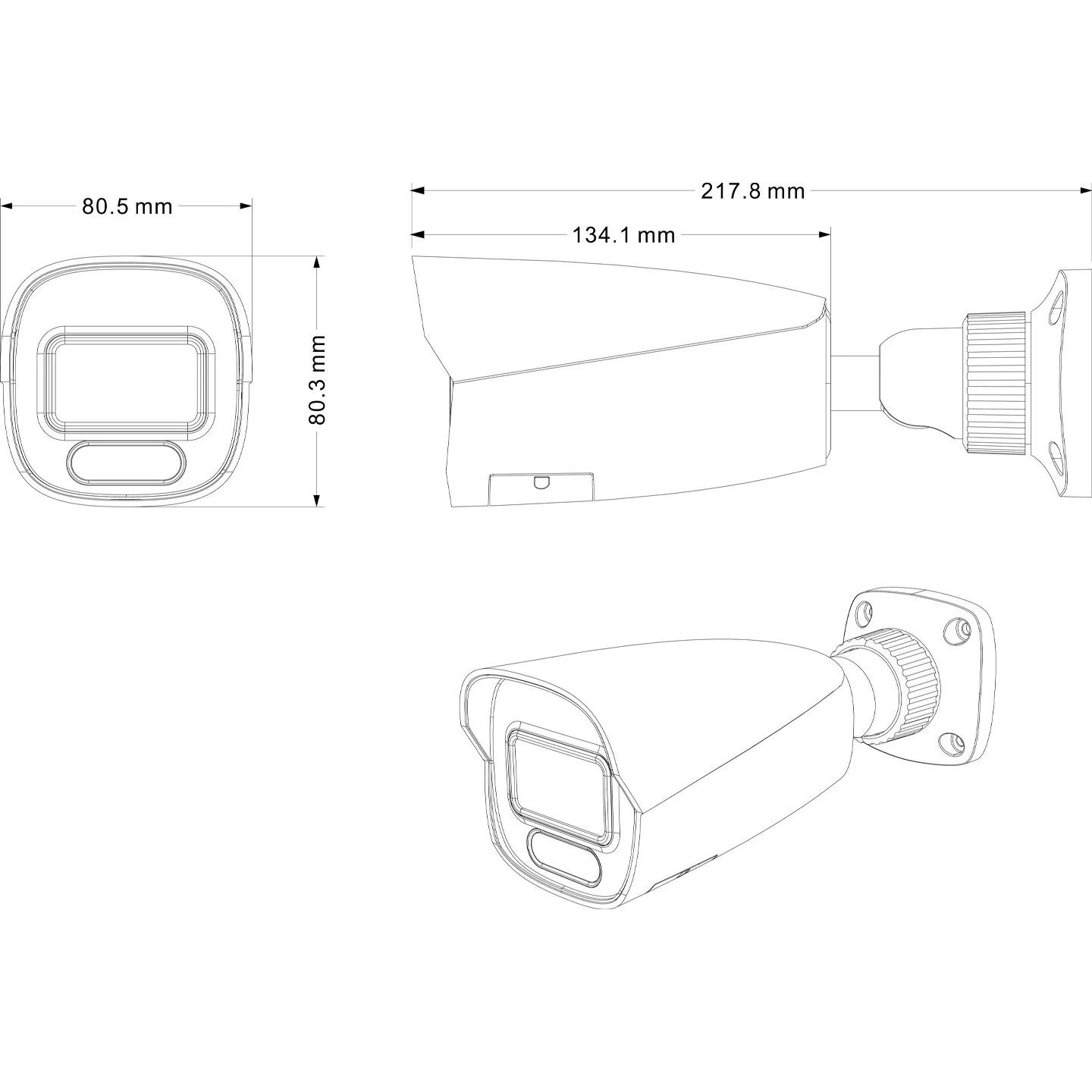

Dimensions (W x H)  8.57” × 3.20” × 3.16” (217.8mm × 80.5mm × 80.3mm)
Electronic Shutter    1/2s ~ 1/100,000s
Image Device    1/1.8” 8.0 MegaPixel (4K) Progressive Scan CMOS
Minimum Scene Illumination  0.008lux @ F1.6 with AGC ON, 0 lux with IR, 0 lux with LED
Operating Humidity    < 95% Humidity
Operating Temperature    -22° ~140°F (-30°~60°C)
Power Consumption   (PoE) <11.5W
Protocols  UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
S/N Ratio   ≥50dB
Weatherproof    IP66
Digital Noise Reduction    3D & 2D-DNR
Rotation Angle0°~180°
IR Distance  39m/130ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
