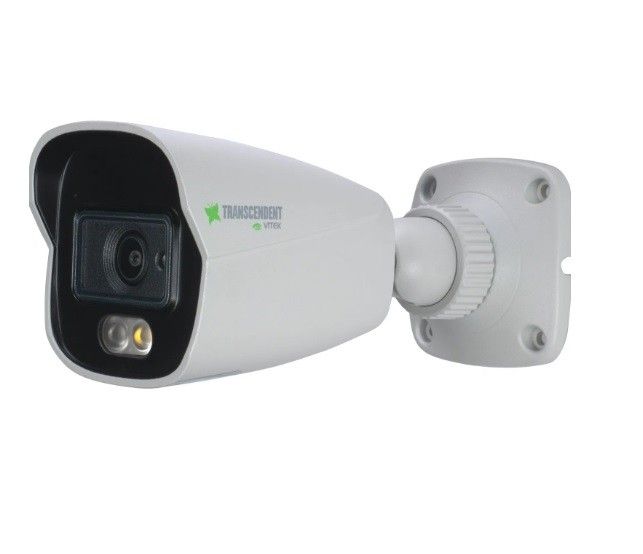

Vitek VTC-TNB6FEA-2 6 Megapixel Network IP Outdoor IR Bullet Camera with 2.8mm Lens

SKU
VTC-TNB6FEA-2
Model No
VTC-TNB6FEA-2
$138.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.5” 6.0 MegaPixel CMOS Image Sensor
  • Up to 20fps@6MP (3200 × 1800), Up to 30fps@4MP (2688 × 1520)
  • 2.8mm Fixed Iris Lens
  • KNIGHT GUARD Illuminates the area with Bright White High-Intensity Light, making it difficult for any intruder to remain unseen
  • Knight Guard White Light Range Up to 100’

Introducing the Vitek VTC-TNB6FEA-2 6 Megapixel Network IP Outdoor IR Bullet Camera, a cutting-edge security solution designed to deliver exceptional performance and value. This NDAA compliant camera features enhanced night vision with white light emitters and allows for remote viewing via multiple platforms, ensuring you never miss a moment. Easy to install and stylishly designed, this camera is perfect for both residential and commercial security needs.

Vitek VTC-TNB6FEA-2 Camera Features

  • 1/2.5” 6.0 MegaPixel CMOS Image Sensor: Provides high-definition video quality, enabling clear surveillance footage.
  • Up to 20fps@6MP: Smooth video recording at 6MP resolution ensures detailed images during critical moments.
  • 2.8mm Fixed Iris Lens: Offers a wide field of view, perfect for monitoring larger areas.
  • KNIGHT GUARD: High-intensity white light illuminates the area, deterring intruders and enhancing nighttime visibility.
  • White Light Range Up to 100’: Extended range ensures effective surveillance in darker environments.
  • True Wide Dynamic Range (120dB): Captures clear images in challenging lighting conditions, minimizing glare and shadows.
  • True Mechanical Day/Night function: ICR switches automatically to provide optimal performance in all lighting conditions.
  • Supports up to Five Streams: Versatile streaming options (H.265+, H.265, H.264+, H.264 & MJPEG) offer flexibility in configuration.
  • XD-DNR Noise Reduction: Advanced noise reduction ensures clearer images in low-light conditions.
  • Programmable Analytics: Advanced detection features allow for custom monitoring, enhancing security through smart alerts.
  • 1 Ch. Audio In + Built-in Mic: Two-way audio capabilities enhance communication and situational awareness.
  • Remote Viewing: Convenient access through VMS, web browser, and mobile apps keeps you connected to your surveillance feeds.
  • MicroSD Card Slot: Local recording option supports up to 256GB, ensuring no critical footage is lost.
  • IP67 Weather Resistance: Durable design ensures reliability in various weather conditions for outdoor use.
  • ONVIF Compliant: Compatible with a wide range of security systems for easy integration.
  • Optional Junction Box: VT-TJB08 offers additional mounting options tailored to your needs.
  • 12VDC & PoE Operation: Flexible power options simplify installation while reducing cabling costs.
  • 3-Year Warranty: Peace of mind with a lengthy warranty ensuring reliable performance.

Vitek VTC-TNB6FEA-2 Detailed Specifications

Image Sensor1/2.5” 6.0 MegaPixel CMOS
Video ResolutionUp to 6MP (3200 × 1800)
Frame RateUp to 20fps@6MP, Up to 30fps@4MP
Lens2.8mm Fixed Iris Lens
White Light RangeUp to 100’
Dynamic RangeTrue Wide Dynamic Range (120dB)
Audio Input1 Ch. Audio In + Built-in Mic
Remote AccessVMS, Web Browser, iOS & Android Apps
StorageMicroSD Card Slot (Up to 256GB)
Weather ResistanceIP67
Power Supply12VDC & PoE
Warranty3 Years
SKU  VTC-TNB6FEA-2
Features  Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vitek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    6 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  6.60” × 2.93” (167.6mm × 75mm)
Electronic Shutter    1/4s ~ 1/100000s
Image Device    1/2.5” CMOS
Operating Humidity    less than 95% (non-condensing)
Operating Temperature    -22°F~140°F (-30°C~60°C
Power Consumption  ≤6.5W
Protocols  UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS
S/N Ratio  ≥50dB
Weatherproof    IP67
Angle of View    Horizontal FoV: 104°, Vertical FoV: 55°, Diagonal FoV: 128°
Rotation Angle0°~360°
IR Distance  30.48m/100ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
