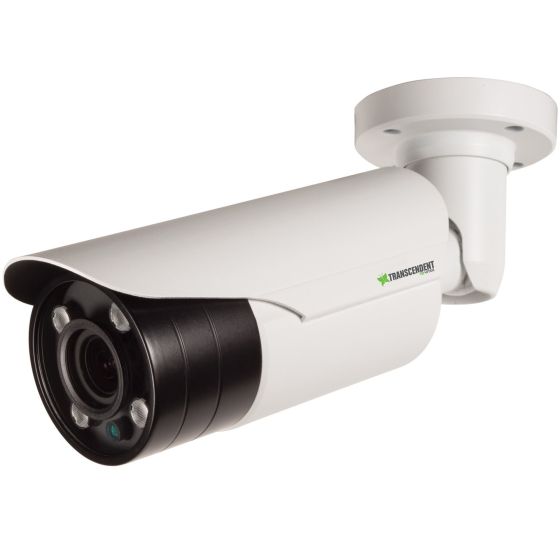

Vitek VTC-T4B4HR8MD 8 Megapixel 4K 4-in-1 Indoor / Outdoor Motorized Varifocal IR Bullet Camera, 2.8-12mm Lens
SKU
VTC-T4B4HR8MD
Model No
VTC-T4B4HR8MD
$200.00
Product Highlights
- 1/2.5" 8.51 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
- 15fps live view @ 3840 x 2160 [4K]
- True Day/Night by IR Cut Filter
- HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
- Motorized 2.8~12mm MegaPixel IR Corrected Auto Focus Varifocal Lens
Speak to an expert
The VTC-T4B4HR8MD from Vitek is a cutting-edge 8 Megapixel 4K 4-in-1 Indoor/Outdoor Motorized Varifocal IR Bullet Camera featuring a versatile 2.8-12mm lens. Ideal for surveillance, this camera combines high-resolution imaging with advanced features, ensuring exceptional performance in various environments.
Vitek VTC-T4B4HR8MD Camera Features
- High Resolution: 8 Megapixel Sony® Starvis™ sensor provides crystal-clear 4K live video at 15fps, enhancing surveillance detail.
- Versatile Lens: Motorized 2.8~12mm varifocal lens offers flexible focal length adjustments for optimal coverage.
- Excellent Night Vision: 4 integrated IR LEDs with a 165’ range ensure clear imaging in low-light conditions.
- Weather Resistant: IP66 rating protects the camera from harsh weather, making it suitable for outdoor use.
- Multiple Video Outputs: Selectable HD-TVI, HD-CVI, AHD, and 960H CVBS output options provide compatibility with various systems.
- Advanced Image Processing: Features like XD-DNR, True WDR, and Auto White Balance enhance image quality in varying light conditions.
- Long-Distance Transmission: Supports HD video transmission over distances up to 1500’, depending on cable integrity.
- Flexible Power Options: Operates on both 12VDC and 24VAC power, providing installation flexibility.
Detailed Camera Specifications
| Model | Vitek VTC-T4B4HR8MD |
| Sensor | 1/2.5" 8.51 Megapixel Sony® Starvis™ Progressive Scan CMOS |
| Resolution | 3840 x 2160 [4K] @ 15fps |
| Lens | Motorized 2.8~12mm MegaPixel IR Corrected Auto Focus Varifocal Lens |
| IR Range | Up to 165’ with 4 Integrated High Power LEDs |
| Noise Reduction | XD-DNR (3D & 2D-DNR) |
| WDR | True Wide Dynamic Range |
| Weather Resistance | IP66 |
| Video Output | HD-TVI / HD-CVI / AHD / 960H CVBS (Selectable) |
| Video Transmission | Over 1500’ (depending on cable characteristics and integrity) |
| Power | 12VDC / 24VAC Dual Voltage Operation |
| Optional Accessories | Optional Junction Box (VT-TJB04) |
SKU  | VTC-T4B4HR8MD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 3840 X 2160 |
| Sensor Option | 1/2.5" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Indoor, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Image Device | 1/2.5” 8.51 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor |
| Image Pixels-Effective | 3840 (H) × 2160 (V) [4K] |
| IR Distance | 50.29m/165ft |
| Minimum Scene Illumination | 0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON) |
| Operating Humidity | 90% or less |
| Operating Temperature | 14°~122° |
| Dimensions (W x H) | 2.97” × 3.07” × 11.17” (75.4 × 78.2 × 283.7mm) |
| Power Consumption | <7.5W |
| Privacy Zone | 16 Programmable Areas |
| S/N Ratio | ≥50dB (AGC Off) |
| Signal System | PAL/NTSC |
| Weatherproof | IP66 |
| Digital Noise Reduction | XD-DNR (2D-DNR & 3D-DNR) |
| Backlight Compensation | Adjustable |
| Automatic White Balance | Auto / Present / External / Manual |
| IR LEDs | 4 |
| Motion Detection | 4 Programmable Areas |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
