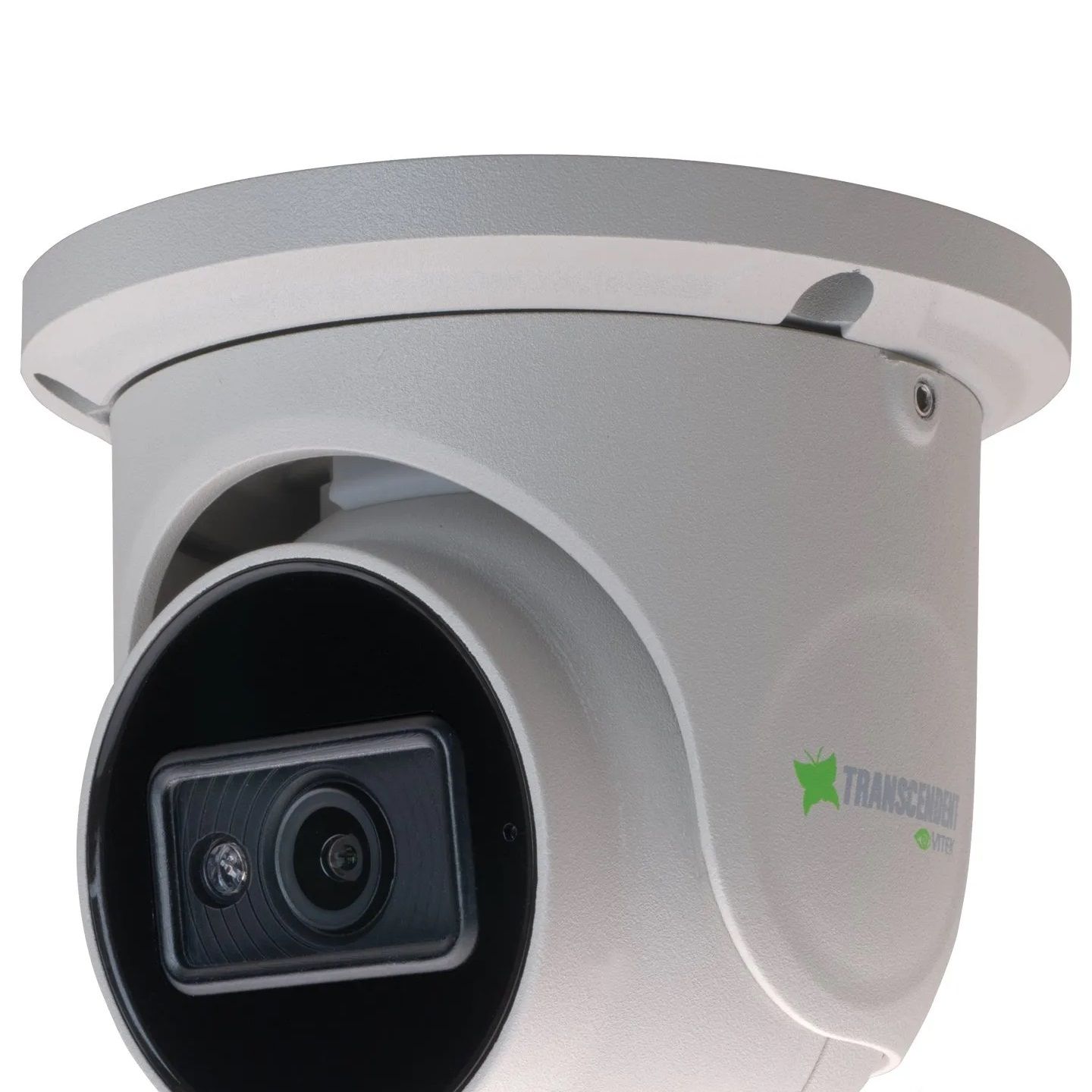

Vitek VT-TNT4CKTFLN-2 Transcendent Lite 4 MegaPixel Fixed Lens IP Turret Camera with Programmable Analytics

SKU
VT-TNT4CKTFLN-2
Model No
VT-TNT4CKTFLN-2
$333.35
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3″ 4.0 Megapixel CMOS Image Sensor
  • Up to 30fps @ 4MP (2560 X 1440), 3MP (2304 X 1296), 1080P (1920 X 1080), 720P (1280 X 720), D1, CIF, 480 X 240
  • 2.8mm Fixed Iris Lens
  • Matrix IR with up to 100' IR Range
  • True 120dB Wide Dynamic Range

Transcendent Series NDAA Compliant 4 Megapixel IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

Vitek VT-TNT4CKTFLN-2 Camera Features

  • 1/3” 4.0 Megapixel CMOS Image Sensor: Provides high image quality and clarity essential for security applications.
  • Up to 30fps @ 4MP: This ensures smooth video playback for all resolutions, enabling clearer and more detailed viewing.
  • 2.8mm Fixed Iris Lens: Delivers a wider field of view, making it ideal for monitoring large areas.
  • Matrix IR with up to 100’ IR Range: Ensures visibility even in complete darkness, providing all-time surveillance.
  • True 120dB Wide Dynamic Range: Manages challenging lighting conditions, producing well-balanced images.
  • True Mechanical Day/Night function by ICR: Enhances image quality in varying light conditions, ensuring 24/7 effectiveness.
  • XD-DNR (3D & 2D-DNR) Noise Reduction: Minimizes noise in low-light situations, improving image quality in challenging environments.
  • 1 Ch. Audio In + Built-in Mic: Adds an audio dimension to monitoring, enabling sound detection along with video surveillance.
  • Programmable Analytics: Features intelligent detection (e.g., line crossing and scene change) for proactive monitoring.
  • Compression - Main Stream: Supports multiple high-efficiency compression formats (H.265+/H.265/H.264+/H.264) to optimize storage without sacrificing quality.
  • MicroSD Card Slot: Enables local recording (up to 256GB), providing backup and security for recorded footage.
  • Remote Viewing: Allows access through various platforms (VMS, Internet Explorer, iOS & Android apps), ensuring flexible monitoring.
  • ONVIF Compliant: Ensures compatibility with other security devices and systems, enhancing integration capabilities.
  • IP67 Weather Resistance: Provides durability against harsh environmental conditions, ideal for both indoor and outdoor use.
  • 12VDC & PoE Operation: Offers flexible power options for installation convenience.

Vitek VT-TNT4CKTFLN-2 Detailed Specifications

Image Sensor1/3” 4.0 Megapixel CMOS
Frame RateUp to 30fps at multiple resolutions
Lens2.8mm Fixed Iris
IR RangeUp to 100 feet
Dynamic RangeTrue 120dB Wide Dynamic Range
Night FunctionMechanical Day/Night with ICR
Noise ReductionXD-DNR (3D & 2D-DNR)
Audio1 Ch. Audio In + Built-in Mic
AnalyticsProgrammable (Various Features)
Main Stream CompressionH.265+/H.265/H.264+/H.264
MicroSD SupportUp to 256GB
Remote ViewingCMS, Internet Explorer, iOS & Android Apps
ComplianceONVIF Compliant
Weather ResistanceIP67 Rated
Power Supply12VDC & PoE
SKU  VT-TNT4CKTFLN-2
Features  Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Weather Resistant, Wide Dynamic Range
Manufacturer  Vitek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    4 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265, H.264+, H.265+
Durability    Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  3.77 × 4.25” [95.7 × 108mm]
Image Device    1/3” 4.0 Megapixel CMOS Image Sensor
Minimum Scene Illumination  0.005 lux @F1.6, AGC ON; 0 lux with IR
Operating Humidity    < 95%
Operating Temperature     -22°~140°F (-30°C ~ 60°C)
Power Consumption  (12VDC) 300mA (LEDs Off) / 600mA (LEDs On), (PoE) <5W
Protocols  ONVIF
Weatherproof    IP67
Digital Noise Reduction    2D-DNR & 3D-DNR
IR Distance  30m/100ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
