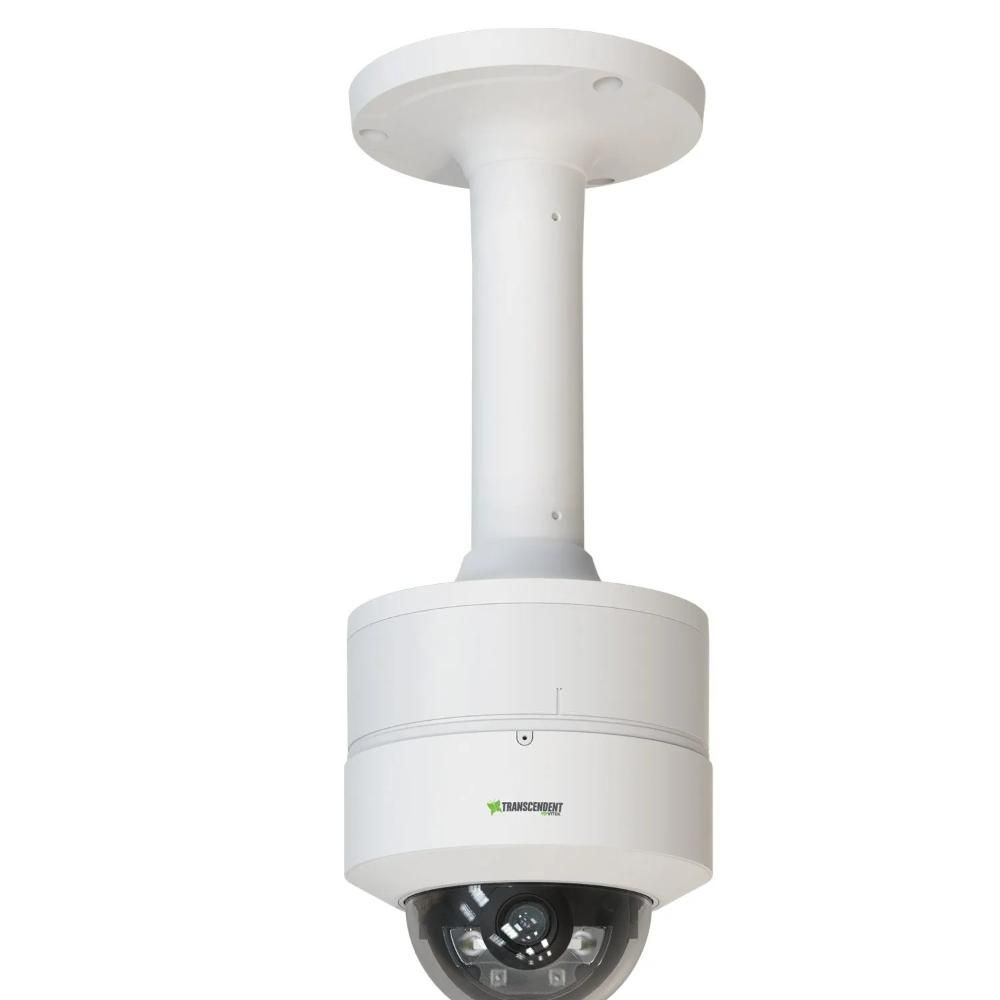

Vitek VT-TND4CKTFN-2 4 Megapixel Network IP Outdoor IR Dome Camera with 2.8mm Lens
SKU
VT-TND4CKTFN-2
Model No
VT-TND4CKTFN-2
$447.48
Product Highlights
- 1/3” 4.0 MegaPixel CMOS Image Sensor
- Up to 30fps@4MP (2560×1440)
- 2.8mm Fixed Iris Lens
- Dual illumination with Matrix IR and Knight Guard white light (up to 100’ Range)
- True Wide Dynamic Range (120dB)
Speak to an expert
The Vitek VT-TND4CKTFN-2 is a robust 4 Megapixel Network IP Outdoor IR Dome Camera designed to deliver high-quality surveillance with exceptional clarity and performance. Its advanced imaging technology, combined with versatile lighting capabilities, makes it an ideal choice for both indoor and outdoor security applications.
Vitek VT-TND4CKTFN-2 Camera Features
- Resolution: 1/3” 4.0 MegaPixel CMOS Image Sensor for crisp and clear images.
- Frame Rate: Up to 30fps@4MP (2560×1440) ensuring smooth video playback.
- Lens Type: 2.8mm Fixed Iris Lens with a wide viewing angle for extensive coverage.
- Illumination Technology: Dual illumination with Matrix IR and Knight Guard white light for effective night vision up to 100’ range.
- Dynamic Range: True Wide Dynamic Range (120dB) to capture detailed images in high-contrast lighting conditions.
Vitek VT-TND4CKTFN-2 Detailed Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/3” 4.0 MegaPixel CMOS |
| Maximum Resolution | 2560×1440 |
| Frame Rate | Up to 30fps @ 4MP |
| Lens | 2.8mm Fixed Iris |
| Illumination Range | Up to 100’ with dual lighting |
| Dynamic Range | 120dB True Wide Dynamic Range |
SKU  | VT-TND4CKTFN-2 |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø4.69 × 3.44” (119 × 87.4mm) |
| Electronic Shutter | 1/1s ~ 1/100000s |
| Image Device | 1/3” CMOS |
| Minimum Scene Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with illumination on |
| Operating Humidity | 95% (non-condensing) |
| Operating Temperature | -22°F~140°F (-30°C~60°C), |
| Power Consumption | ≤5.5W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
| Weatherproof | IP67 |
| Angle of View | Horizontal FoV: 94°, Vertical FoV:50°, Diagonal FoV:115° |
| Rotation Angle | 0°~180° |
| IR Distance | 30m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
