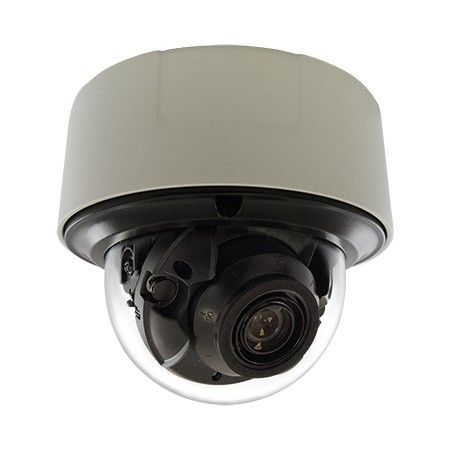

ACTi VMGB-605 4 Megapixel Network IR Outdoor Dome Camera with 8.0-32mm Lens
SKU
VMGB-605
Model No
VMGB-605
$6,547.50
Product Highlights
- 4 Megapixel Metadata Camera
- Day & Night with IR LED
- Built-in Face Recognition
- Event trigger, response and notification
Speak to an expert
The VMGB-605 from ACTi is a high-performance 4 megapixel network IR outdoor dome camera designed for enhanced security and surveillance. Its face recognition capabilities ensure precise identification, while the 4x zoom lens allows for versatile monitoring in various environments. With features such as built-in analytics, PoE support, and robust weatherproofing, this camera provides reliable performance for all outdoor surveillance needs.
ACTi VMGB-605 Camera Features
- 4 Megapixel Metadata Camera: Offers exceptional image clarity and detail, allowing for accurate security monitoring and evidence capture.
- Day & Night with IR LED: Ensures continuous surveillance in low-light conditions, providing reliable footage around the clock.
- Built-in Face Recognition: Enhances security by identifying individuals, enabling swift responses to potential threats.
- Event Trigger, Response and Notification: Automatically detects events and can send immediate alerts, ensuring timely action can be taken.
Detailed Camera Specifications for ACTi VMGB-605
| Feature | Details |
|---|---|
| Resolution | 4 Megapixel |
| Lens | 8.0-32mm, f1.7-1.73 |
| Field of View | HOV: 42.5°-15.1° |
| Compression | H.265/H.264 |
| Noise Reduction | 3D DNR |
| Storage | MicroSD support |
| Power Options | PoE, DC 12V, AC 24V |
| Weather Resistance | IK10 rated |
| Connectivity | DI/DO, RS-485 |
| Analytics | Built-in |
SKU  | VMGB-605 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 8-32mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | (Ø x L): 140.5mm x 122.6mm (5.5" x 4.8") |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| Image Device | 1/1.8 " Progressive Scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.0005 lux at F1.2 (AGC on); B/W: 0.0001 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | 12.4 W (DC), 12.5 W (PoE) |
| Protocols | IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, ARP, UPnP, Bonjour, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal Viewing Angle: 42.5° - 15.1°, Vertical Viewing Angle: 23.3° - 8.64° |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
