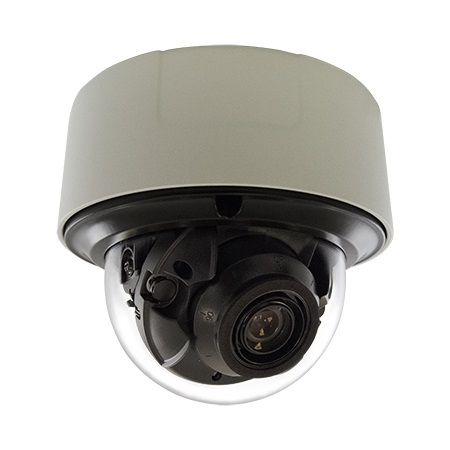

ACTi VMGB-604 4 Megapixel Indoor IR Network Dome Camera, 2.8-12mm Lens
SKU
VMGB-604
Model No
VMGB-604
$4,357.80
Product Highlights
- 4 Megapixel Metadata Camera
- Day & Night with IR LED
- Built-in Face Recognition, Face Counting, Hard Hat Detection, Queue management
- Event trigger, response and notification
Speak to an expert
The ACTi VMGB-604 is a high-performance 4 megapixel indoor IR network dome camera featuring a versatile 2.8-12mm lens, ideal for security and surveillance applications. This camera not only delivers superior image quality but also integrates advanced capabilities like face recognition and event management, ensuring you are always equipped with the right tools for effective monitoring.
ACTi VMGB-604 Camera Features
- 4 Megapixel Metadata Camera: Enjoy crystal-clear images and detailed video recordings, enhancing your security coverage.
- Day & Night with IR LED: Automatic switching between day and night modes allows for 24/7 surveillance, ensuring visibility in low-light conditions.
- Built-in Face Recognition: Advanced technology enables accurate identification and tracking of individuals for heightened security measures.
- Event Trigger and Notification: Customize your surveillance system to respond instantly to specific events, providing real-time alerts and increasing situational awareness.
ACTi VMGB-604 Detailed Camera Specifications
| Model | ACTi VMGB-604 |
| Image Sensor | 4 Megapixel |
| Lens | 2.8-12mm |
| IR LED | Yes |
| Features | Face Recognition, Face Counting, Hard Hat Detection, Queue Management |
| Power Supply | Standard PoE |
| Video Compression | H.264/MJPEG |
SKU  | VMGB-604 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 140.5mm x 122.6mm (5.5" x 4.8") |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| Image Device | 1/1.8" Progressive Scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.001 lux at F1.2 (AGC on); B/W: 0 (IR LED on) |
| Operating Humidity | 10% - 95% RH |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | 9.96 W (DC), 12 W (AC), 12 W (PoE) |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X, SSL/TLS |
| Video Output | RJ-45 |
| Zoom Ratio | 4.3x optical |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal Viewing Angle: 114.5° - 41.8°, Vertical Viewing Angle: 59.3° - 23.6° |
| Rotation Angle | 0°-355° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
