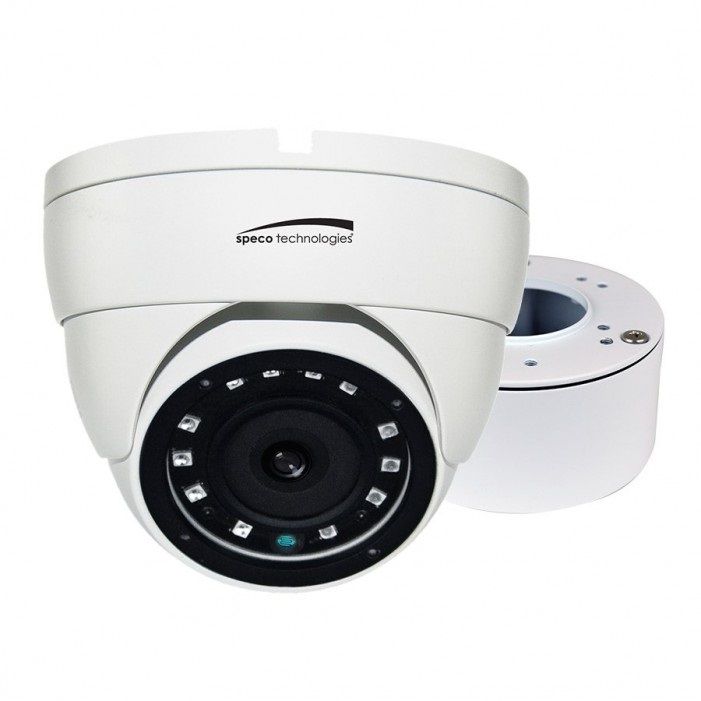

Speco VLDT4W 1080p HD-TVI/AHD/CVI Outdoor Analog Dome Camera, 3.6mm Lens
SKU
VLDT4W
Model No
VLDT4W
$62.90
Product Highlights
- 1/2.9″ 2MP Sony CMOS
- Supports multiple video signal outputs (TVI / AHD / CVI / CVBS)*
- 18 built-in IR LEDs
- IP66 compliant, weather resistant
- Full OSD operation through onboard control and UTC (up the coax)
Speak to an expert
The VLDT4W from Speco is a 1080p HD-TVI/AHD/CVI outdoor analog dome camera featuring a 3.6mm lens designed for high-quality surveillance. With its impressive array of features and durable construction, it ensures reliable performance in various outdoor environments.
Speco VLDT4W Camera Features
- 1/2.9” 2MP Sony CMOS: Provides crystal-clear video quality, enhancing the detail and clarity of your surveillance footage.
- Supports multiple video signal outputs: Flexibly connects with various formats (TVI / AHD / CVI / CVBS) to accommodate different installations and requirements.
- 18 built-in IR LEDs: Enables effective night vision, allowing for monitoring in low-light conditions up to a specified distance.
- IP66 compliant, weather resistant: Ensures the camera operates reliably in harsh outdoor conditions, protecting it from dust and moisture.
- Full OSD operation: Simplifies the setup and management of camera settings through onboard control and UTC (up the coax) functionality.
- Junction box included: Provides an easy installation solution that accommodates cable management without extra purchases.
- UL Listed: Meets safety and quality standards, ensuring peace of mind for users.
Detailed Specifications of Speco VLDT4W
| Feature | Details |
|---|---|
| Camera Type | Outdoor Analog Dome |
| Resolution | 1080p |
| Lens | 3.6mm |
| CMOS Sensor | 1/2.9” 2MP Sony CMOS |
| Video Outputs | TVI, AHD, CVI, CVBS |
| IR LEDs | 18 built-in |
| Weather Resistance | IP66 compliant |
| Control | Full OSD operation via onboard control and UTC |
| Included Accessories | Junction box |
| Safety Standard | UL Listed |
SKU  | VLDT4W |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | NTSC:1/60-1/100,000, PAL: 1/50-1/100,000 |
| Gamma Correction | 0.45 typ |
| Image Device | 1/2.9” 2MP Sony CMOS |
| IR Distance | 19.81m/65ft |
| Minimum Scene Illumination | 0 lux |
| Operating Temperature | -22°F - 104°F |
| Dimensions (W x H) | 3.7” (W) x 3.15” (H) |
| Power Consumption | Max. 400mA |
| Scanning System | Progressive |
| Signal System | NTSC/PAL |
| Video Output | HD-TVI / AHD / CVI / CVBS |
| Weatherproof | IP66 |
| Digital Noise Reduction | On/Off |
| Automatic White Balance | ATW |
| Auto Gain Control | On/Off |
| IR LEDs | 18 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
