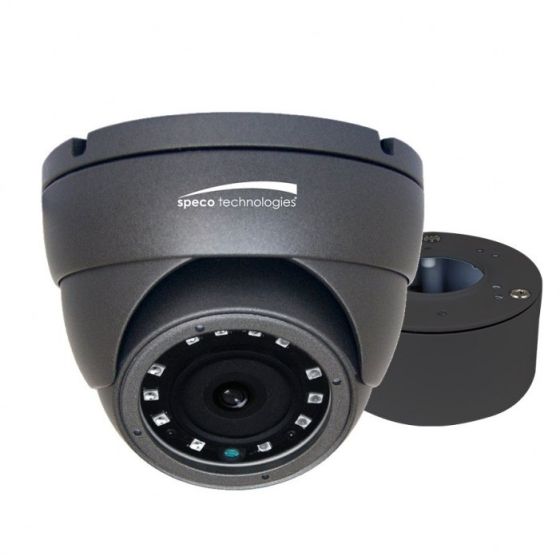

Speco VLDT4G 1080p HD-TVI/AHD/CVI Outdoor Analog Dome Camera, 3.6mm Lens
SKU
VLDT4G
Model No
VLDT4G
$76.50
Product Highlights
- 1/2.9″ 2MP Sony CMOS
- Supports multiple video signal outputs (TVI / AHD / CVI / CVBS)*
- 18 built-in IR LEDs
- IP66 compliant, weather resistant
- Full OSD operation through onboard control and UTC (up the coax)
Speak to an expert
The VLDT4G from Speco is a 1080p HD-TVI/AHD/CVI outdoor analog dome camera featuring a 3.6mm lens, designed for versatility and durability. With advanced image processing and weather-resistant design, this camera ensures high-quality video capture in various environments, making it an excellent choice for your security needs.
Speco VLDT4G Camera Features
- 1/2.9” 2MP Sony CMOS: Provides crystal-clear imaging with excellent low-light performance for reliable monitoring.
- Supports multiple video signal outputs: Offers compatibility with TVI, AHD, CVI, and CVBS systems, ensuring integration with existing infrastructure.
- 18 built-in IR LEDs: Enables effective night vision capabilities, allowing for clear footage even in complete darkness.
- IP66 compliant, weather resistant: Guarantees protection against dust and water, making it suitable for outdoor installations in various weather conditions.
- Full OSD operation: Allows for easy configuration and control through onboard settings or UTC (up the coax), simplifying user experience.
- Junction box included: Facilitates easy installation and setup, providing convenience right out of the box.
- UL Listed: Meets safety standards, ensuring a reliable and trustworthy product for security applications.
Speco VLDT4G Detailed Specifications
| Image Sensor | 1/2.9” 2MP Sony CMOS |
| Video Output | TVI / AHD / CVI / CVBS |
| IR LEDs | 18 built-in |
| Weather Resistance | IP66 compliant |
| Operating Control | Full OSD operation |
| Junction Box | Included |
| Certification | UL Listed |
SKU  | VLDT4G |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | NTSC:1/60-1/100,000, PAL: 1/50-1/100,000 |
| Gamma Correction | 0.45 typ |
| Image Device | 1/2.9” 2MP Sony CMOS |
| IR Distance | 19.81m/65ft |
| Minimum Scene Illumination | 0 lux |
| Operating Temperature | -22°F - 104°F |
| Dimensions (W x H) | 3.7” (W) x 3.15” (H) |
| Power Consumption | Max. 400mA |
| Scanning System | Progressive |
| Signal System | NTSC/PAL |
| Video Output | HD-TVI / AHD / CVI / CVBS |
| Weatherproof | IP66 |
| Digital Noise Reduction | On/Off |
| Automatic White Balance | ATW |
| Auto Gain Control | On/Off |
| IR LEDs | 18 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
