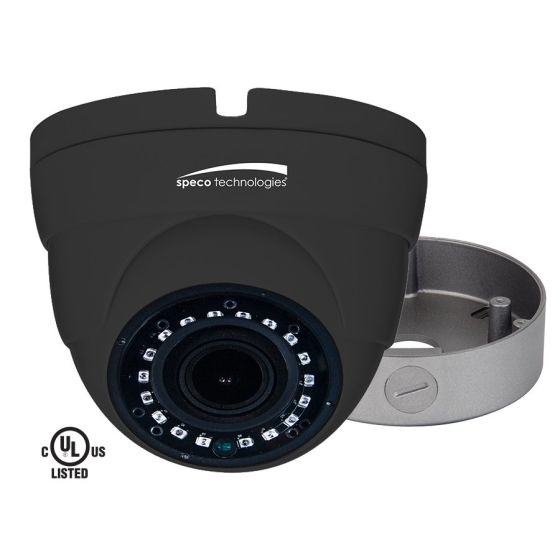

Speco VLDT3GM 1080p HD-TVI/AHD/CVI Outdoor Analog Dome Camera, 2.8-12mm Lens, Dark Gray Housing
SKU
VLDT3GM
Model No
VLDT3GM
$122.52
Product Highlights
- 1/2.9″ 2MP Sony CMOS
- Supports multiple video signal outputs (TVI / AHD / CVI / CVBS)*
- 18 built-in IR LEDs
- IP66 compliant, weather resistant
- Full OSD operation through onboard control and UTC (up the coax)
Speak to an expert
The VLDT3GM from Speco is a 1080p HD-TVI/AHD/CVI outdoor analog dome camera designed for exceptional performance and clarity in surveillance. With a versatile 2.8-12mm lens and robust features, this camera delivers high-quality video in various environments, while its durable construction ensures longevity and reliability.
Speco VLDT3GM Camera Features
- Image Sensor: 1/2.9” 2MP Sony CMOS for outstanding image quality and low light performance.
- Multi-format Support: Supports multiple video signal outputs (TVI / AHD / CVI / CVBS), allowing integration with various systems.
- Night Vision: 18 built-in IR LEDs provide enhanced visibility in complete darkness, ensuring 24/7 surveillance.
- Weather Resistance: IP66 compliant, ensuring protection against dust and water, perfect for outdoor use.
- On-Screen Display: Full OSD operation through onboard control and UTC (up the coax) for easy configuration and management.
- Included Accessories: Junction box included for convenient installation and reduced complexity.
- Safety Standards: UL Listed for added assurance in safety and performance.
Detailed Specifications for Speco VLDT3GM
| Model | VLDT3GM |
| Type | Analog Dome Camera |
| Video Resolution | 1080p HD |
| Lens | 2.8-12mm |
| Image Sensor | 1/2.9” 2MP Sony CMOS |
| IR LEDs | 18 Built-in |
| Weather Rating | IP66 |
| Output Types | TVI / AHD / CVI / CVBS |
| Included Accessories | Junction Box |
| Certification | UL Listed |
SKU  | VLDT3GM |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | NTSC:1/60-1/100,000, PAL: 1/50-1/100,000 |
| Gamma Correction | 0.45 typ |
| Image Device | 1/2.9” 2MP Sony CMOS |
| IR Distance | 19.81m/65ft |
| Minimum Scene Illumination | 0 lux |
| Operating Temperature | -22°F - 104°F |
| Dimensions (W x H) | 4.72” (W) x 3.94” (H) |
| Power Consumption | Max. 430mA |
| Scanning System | Progressive |
| Signal System | NTSC/PAL |
| Video Output | HD-TVI / AHD / CVI / CVBS |
| Weatherproof | IP66 |
| Digital Noise Reduction | On/Off |
| Automatic White Balance | ATW |
| Auto Gain Control | On/Off |
| IR LEDs | 18 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
