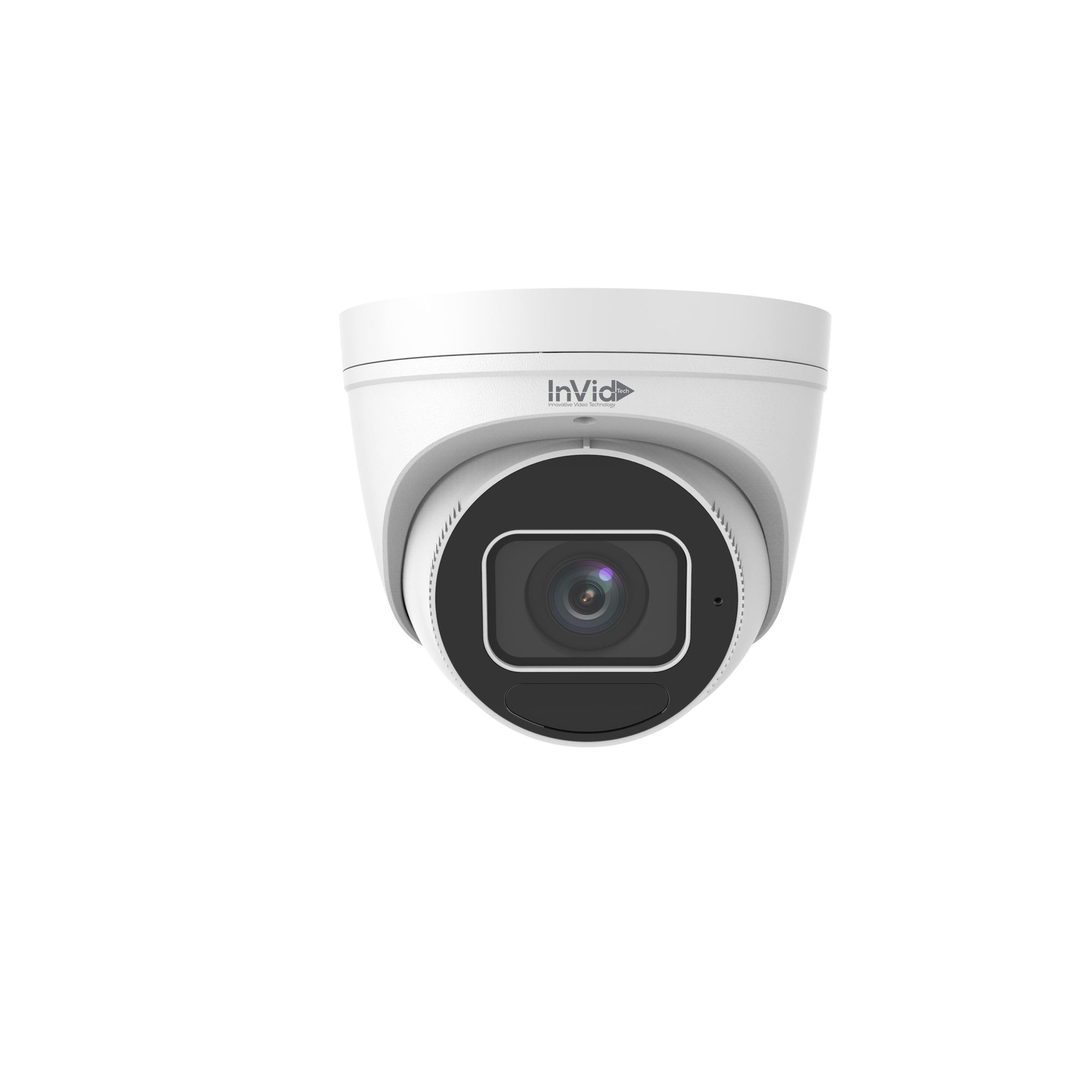

InVid VIS-P5TXIRA27135NH 5 Megapixel IP Plug & Play Outdoor IR Turret Camera with 2.7-13.5mm Lens
SKU
VIS-P5TXIRA27135NH
Model No
VIS-P5TXIRA27135NH
$322.00
Product Highlights
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 5 Megapixel Resolution
- Motorized Auto-Focus 2.7-13.5mm Lens
- True Day/Night with IR Range up to 131'
- Smart IRs
Speak to an expert
The VIS-P5TXIRA27135NH from InVid is a 5 megapixel IP plug & play outdoor IR turret camera designed for exceptional surveillance performance. It features advanced AI technology for reliable detection, superior night vision capabilities, and a versatile lens to ensure clarity in all conditions.
InVid VIS-P5TXIRA27135NH Camera Features
- True AI Classification: Accurately detects humans and vehicles, enhancing security through intelligent alerts.
- 5 Megapixel Resolution: Delivers crystal-clear images for comprehensive monitoring.
- Motorized Auto-Focus 2.7-13.5mm Lens: Enables flexible zoom adjustments for detailed viewing across various distances.
- True Day/Night with IR Range: Provides visibility up to 131 feet in complete darkness, ensuring 24/7 monitoring.
- Smart IRs: Automatically adjusts the intensity of IR lights, preventing overexposure while capturing clear night images.
- Starlight Illumination: Enhances low-light performance for vivid color images under minimal light conditions.
- Ultra Compression Formats: Supports multiple encoding formats (H.265/H.264/MJPEG) for efficient storage and bandwidth management.
- 25 FPS Recording: Ensures smooth video playback and real-time monitoring without lag.
- True WDR 120dB: Balances lighting conditions to provide clear images in high contrast environments.
- Micro SD Slot: Supports storage expansion up to 256GB for video recording and playback.
- Built-in Mic: Provides audio capabilities for enhanced security monitoring.
- IP67 Weatherproof: Ensures durability and reliability in harsh outdoor environments.
- IK10 Vandal Resistant: Designed to withstand vandalism and physical damage for robust security.
- Power Options: Operates on 12VDC/PoE for flexible installation.
- ONVIF Compatibility: Integrates seamlessly with other security devices and software.
- Free Mobile Apps: Allows remote access and control via iOS & Android smartphones and tablets.
- Free CMS and MAC Client: Provides comprehensive management and monitoring solutions at no extra cost.
InVid VIS-P5TXIRA27135NH Detailed Camera Specifications
| Model | VIS-P5TXIRA27135NH |
| Megapixels | 5 Megapixels |
| Lens Type | Motorized Auto-Focus 2.7-13.5mm |
| IR Range | Up to 131ft |
| Compression Format | Ultra H.265/H.265/H.264/MJPEG |
| Recording Speed | 25 FPS |
| True WDR | 120dB |
| Weatherproof Rating | IP67 |
| Vandal Rating | IK10 |
| Power Supply | 12VDC/PoE |
| Micro SD Support | Up to 256GB |
| Audio | Built-in Mic |
| Mobile App | iOS & Android |
SKU  | VIS-P5TXIRA27135NH |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Ø5.1” x 4.3” (Φ129 x 110mm) |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Image Device | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Colour: 0.002Lux (F1.35, AGC ON) 0Lux with IR |
| Operating Humidity | ≤95% RH (non-condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| OSD Menu | Up to 8 OSDs |
| Power Consumption | Max 8.16W |
| Privacy Zone | Up to 4 areas |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| S/N Ratio | >56dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D/3D DNR |
| Motion Detection Tracking | Up to 4 areas |
| Back Light Compensation | Supported |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
