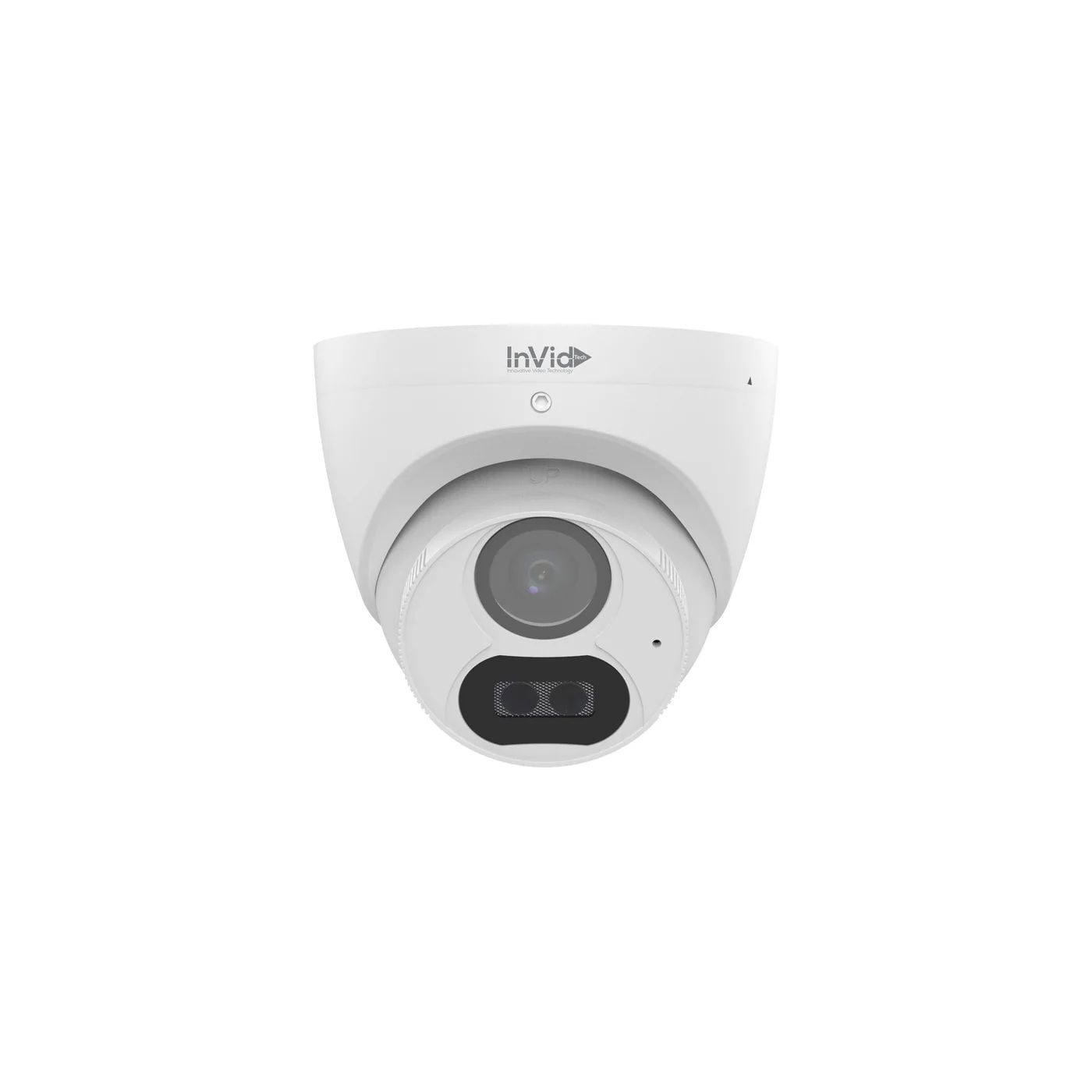

InVid VIS-C8TXIR28 8 Megapixel HD-TVI/AHD/CVI/Analog Outdoor IR Turret Camera with, 2.8mm Lens
SKU
VIS-C8TXIR28
Model No
VIS-C8TXIR28
was $110.00 Special Price $96.00
Product Highlights
- 8 Megapixel Resolution
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Fixed Lens
- True Day/Night with IR Range up to 131’
- True WDR 120dB
Speak to an expert
Introducing the InVid VIS-C8TXIR28, an advanced outdoor IR turret camera designed to deliver stunning 8 Megapixel resolution. This versatile camera supports multiple technologies, including HD-TVI, AHD, CVI, and Analog, making it a reliable choice for various security needs. Equipped with a true day/night capability and impressive infrared range, it ensures high-quality surveillance around the clock.
InVid VIS-C8TXIR28 Camera Features
- 8 Megapixel Resolution: Provides exceptional detail for accurate identification in both day and night conditions.
- All-in-One Technology (TVI/AHD/CVI/Analog 960h): Easily integrates with various systems, offering enhanced flexibility and installation options.
- Fixed Lens: 2.8mm lens ensures a broad field of view, making it ideal for capturing large areas without distortion.
- True Day/Night with IR Range up to 131’: This feature guarantees clear visibility even in complete darkness, ensuring reliable performance 24/7.
- True WDR 120dB: Wide dynamic range technology helps mitigate light imbalance, producing clear images in challenging lighting conditions.
Detailed Camera Specifications
| Specification | Details |
|---|---|
| Camera Type | Outdoor IR Turret |
| Maximum Resolution | 8 Megapixels |
| Lens | 2.8mm Fixed Lens |
| Infrared Range | Up to 131 feet |
| Wide Dynamic Range | 120dB |
| Supported Formats | TVI, AHD, CVI, Analog 960h |
SKU  | VIS-C8TXIR28 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
| NDAA | Compliant |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 8 Megapixel |
| Sensor Option | 1/2.7" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s |
| Image Device | 1/2.7" CMOS |
| IR Distance | 39m/131ft |
| Minimum Scene Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Operating Temperature | -22 °F ~ 140 °F (-30°C ~ 60°C) |
| Dimensions (W x H) | Φ4.4 x 3.9 in (Φ111mm*98mm) (diameter*height) |
| Power Consumption | Max 4.8W |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D/3D |
| Angle of View | Angle of View (H) 109.1°/Angle of View (V) 61.0°/Angle of View (D) 126.7° |
| Automatic White Balance | Two modes: Auto (default), Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
