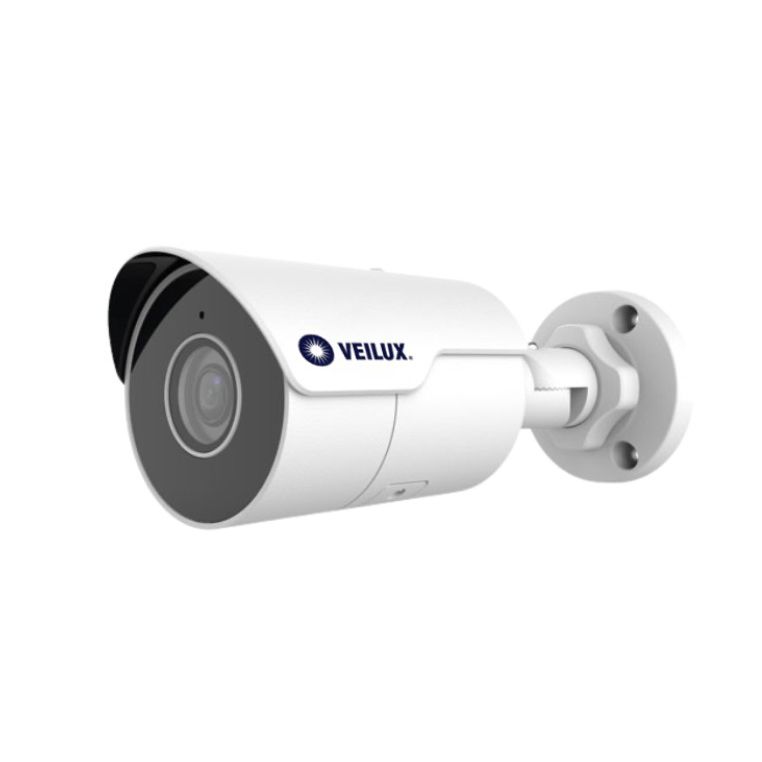

Veilux VBIP-8B-PRO-U 8 Megapixel Outdoor Bullet Camera with 2.8mm Lens
- Day/night functionality
- 8MP (3840x2160)@20fps; 5MP (3072x1728)@30/25fps; 4MP (2560x1440)@30/25fps; 2MP (1920x1080) @30/25fps
- Smart IR, up to 50m (164ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
Designed for demanding surveillance environments, the VBIP-8B-PRO-U 8 megapixel Fixed lens IP bullet camera combines high-resolution imaging, wide field of view, and AI-based analytics in a compact, vandal-resistant housing. Whether you’re securing commercial buildings, campuses, or municipal properties, this camera delivers exceptional clarity and reliability, day or night.
Ultra HD 8 megapixel Imaging with 2.8mm Wide-Angle lens
Featuring a 1/2.7” 8.0-megapixel progressive scan CMOS sensor, the VBIP-8B-PRO-U records footage at up to 3840 × 2160 resolution, capturing crisp, high-detail visuals at 20fps. The 2.8mm fixed lens provides a horizontal field of view of 112.9°, making it ideal for monitoring wide open areas such as plazas, lobbies, and retail spaces.
Reliable Performance in Low light and Night Conditions
With 0.005 Lux minimum illumination and 850nm IR LEDs, the camera ensures clear video even in complete darkness up to 30 meters (98 ft.)
Intelligent Video Analytics for Smarter Monitoring
Security teams can configure up to 4 privacy masks and 8 regions of interest (ROI) to focus on critical zones and reduce unnecessary alerts.
High-Efficiency Compression & Smooth Streaming
It delivers real-time playback with flexible resolutions including 8 megapixel @ 20fps, 5MP/4 megapixel/1080p @ 30fps, and multiple sub-stream options for remote access.
Compact, Rugged, and Built for Harsh Environments
The camera includes full 360° rotation, 70° tilt, and 360° pan for versatile installation on ceilings, walls, or poles.
Ideal Applications
With its high-res image sensor, smart analytics, and durable housing, the VBIP-8B-PRO-U is your go-to solution for modern, proactive video surveillance.
Features
- Day/night functionality
- 8 megapixel (3840x2160)@20fps; 5MP (3072x1728)@30/25fps; 4 megapixel (2560x1440)@30/25fps; 2 megapixel (1920x1080) @30/25fps
- Smart IR, up to 50m (164ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Supports 256 G Micro SD card
- Built-in Mic
- IP67
- 3-Axis
SKU  | VBIP-8B-PRO-U |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Veilux |
| Connection Type | Wired |
Infrared Distance  | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 190 x 73 x 71mm (7.5 "x 2.9" x 2.8") |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Image Device | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Minimum Scene Illumination | Color: 0.005 Lux (F1.6, AGC ON) 0 Lux with IR |
| Operating Humidity | ≤95% RH (non-condensing) |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ 140°F) |
| OSD Menu | Up to 4 OSDs |
| Power Consumption | Max 6.5W |
| Privacy Zone | Up to 4 areas |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| S/N Ratio | >56dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D/3D DNR |
| Angle of View | Angle of View (H) 98.3°, Angle of View (V) 53.3°, Angle of View (O) 103.1° |
| Rotation Angle | 0° ~ 360° |
| Back Light Compensation | Supported |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
VBIP-8B-PRO-U-Specsheet
