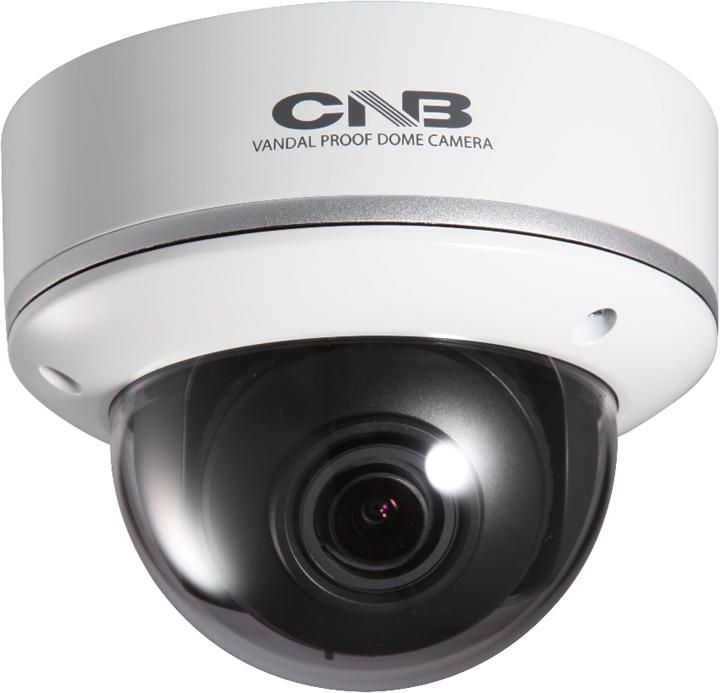

CNB VBF-44VF 700TVL Outdoor WDR Dome Camera, 2.8-10.5mm
SKU
VBF-44VF
Model No
VBF-44VF
$213.67
Product Highlights
- 1/3 inch Double Scan CCD (960H)
- Ultra High Resolution : 700 TV Lines
- Built in DC Iris Vari-focal Lens (f=2.8~10.5mm)
- TDN(ICR), DSS
- 16x Digital Zoom (On/Off)
The VBF-44VF from CNB is a 700TVL Outdoor True D/N WDR Dome Camera, 2.8-10.5mm.
Features
- 1/3 inch Double Scan CCD (960H)
- Ultra High Resolution : 700 TV Lines
- Built in DC Iris Vari-focal Lens (f=2.8~10.5mm)
- TDN(ICR), DSS
- 16x Digital Zoom (On/Off)
- Min. Illumination : 0.00001Lux (DSS On, B/W)
- WDR (Max. 54dB)
- OSD, Privacy Zone, Motion Detection
- Digital Slow Shutter (off ~512x)
- Stabilizer, D-Effect, Eclipse Function
- RS-485(Pelco-D) Interface
- 24VAC/12VDC Dual Voltage
SKU  |
VBF-44VF |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
CNB |
Camera Signal  |
Analog |
| Resolution |
700 TVL |
| Sensor Option |
1/3" CCD |
| Lens Type |
Varifocal |
| Lens Size |
2.8-10.5mm |
| Infrared Distance |
Non Infrared |
| Durability |
Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC, 24vAC |
| Electronic Shutter |
1/60~1/100,000 Sec. |
| Image Device |
1/3 Inch Double Scan CCD (960H) |
| Image Pixels Total | 1028(H) x 508(V) 520K |
| Image Pixels-Effective | 976(H) x 494(V) 480K |
| Minimum Scene Illumination |
0.1Lux(Color), 0.00001Lux (DSS On, B/W), F1.2, 20IRE |
| Operating Humidity |
30% ~ 80% RH |
| Operating Temperature |
-10°C~ +50°C |
| Dimensions (W x H) |
100.0 x 114.9 x 109.1 mm |
| OSD Menu |
16 Languages (English, Korean, Simplified Chinese, Traditional Chinese, Japanese, Spanish, French, Italian, German, Polish, Portuguese, Czech, Turkish, Russian, Hungarian, Greek) |
| Power Consumption |
Max. 4W |
| Privacy Zone |
On / Off (15 Programmable Zone) |
| S/N Ratio |
More than 50dB(AGC Off) |
| Scanning Horizontal |
15.734 KHz |
| Scanning System |
2:1 Interlace |
| Scanning Vertical | 59.94 Hz |
| Signal System |
NTSC |
| Video Output |
1.0V p-p (75?, Composite) |
| Digital Noise Reduction |
Off / 2D / 3D |
| Automatic White Balance |
ATW/ PUSH/ USER1/ USER2/ ANTI CR/ MANUAL/ PUSH LOCK |
| Auto Gain Control |
0~20 |
| Motion Detection |
On / Off (4 Programmable Zone) |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Mirror |
Yes |
| On Screen Display Menu |
Yes |
| Wide Dynamic Range |
Yes |
| Privacy Masking |
Yes |
| Auto Gain Control |
Yes |
| Motion Detection Tracking |
Yes |
| Digital Zoom | Yes |
