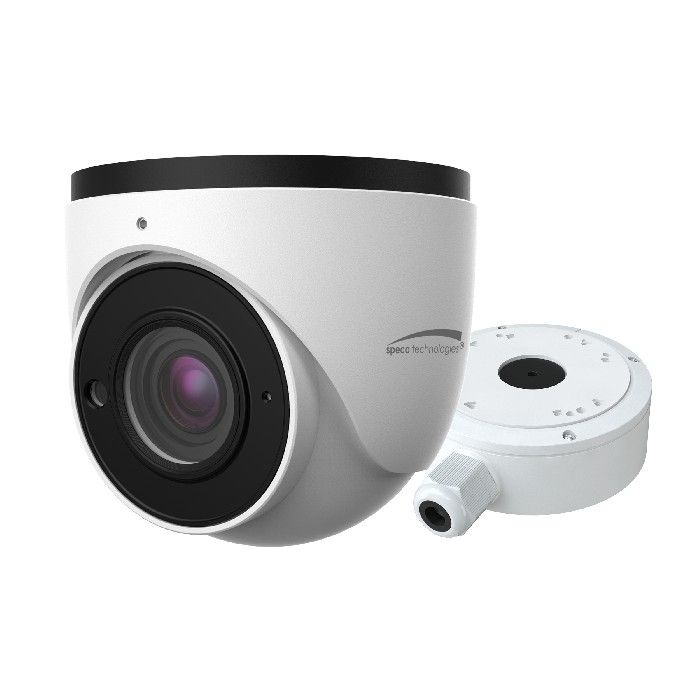

Speco V5T1M 5 Megapixel HD-TVI IR Lens Turret Camera with Included Junction Box 2.8-12mm Lens
SKU
V5T1M
Model No
V5T1M
$122.40
Product Highlights
- Supports up to 5MP @ 20FPS
- Up to 4x optical zoom
- IR Distance: 165' (depending on scene reflection)
- DWDR
- Motorized lens with auto focus
Speak to an expert
Speco V5T1M Camera Features
The V5T1M from Speco is a 5 megapixel HD-TVI IR lens turret camera with included junction box 2.8-12mm lens, designed to deliver high-definition video surveillance with exceptional clarity and detail in various environments.
Features
- 5MP Resolution: Supports up to 5MP @ 20FPS for sharp, high-definition images that capture every detail.
- Optical Zoom: Up to 4x optical zoom allows for detailed monitoring of distant areas without loss of quality.
- IR Night Vision: IR Distance of 165’ enables clear surveillance even in complete darkness, making it ideal for 24/7 monitoring.
- Dynamically Wide Dynamic Range (DWDR): Provides enhanced visibility in high-contrast lighting conditions.
- Motorized Lens: Features a motorized lens with auto focus for quick and precise adjustments, enhancing operational efficiency.
- Power Supply: Designed for 12VDC operation (power supply not included), offering flexibility in installation.
- IP67 Weather Resistance: Guaranteed protection against dust and water, making it suitable for outdoor use in various weather conditions.
Speco V5T1M Detailed Camera Specifications
| Camera Resolution | 5 Megapixel |
| Frame Rate | 20FPS |
| Optical Zoom | Up to 4x |
| IR Night Vision Distance | 165’ (depending on scene reflection) |
| DWDR | Yes |
| Lens Type | Motorized lens with auto focus 2.8-12mm |
| Operation Voltage | 12VDC (power supply not included) |
| Weather Resistance Rating | IP67 |
SKU  | V5T1M |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
Camera Signal  | Analog, HD-TVI |
| Resolution | 5 Megapixel |
| Sensor Option | 1/2.7" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) |
| Image Device | Progressive scan 1/2.7” CMOS |
| IR Distance | 50m/165ft |
| Minimum Scene Illumination | Color: 0.01lux @ F1.2(AGC ON); B/W: 0 lux @ IR ON |
| Operating Humidity | 10% ~ 90% |
| Operating Temperature | -22°F - 122°F |
| Dimensions (W x H) | 3.5”(H) x 4.4”(Dia.) |
| Power Consumption | IR OFF ≤ 1W; IR ON ≤ 6W |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Video Output | AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) |
| Weatherproof | IP67 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
