Speco V5T1 5 Megapixel HD-TVI IR Turret Camera with Included Junction Box 2.8mm Lens
SKU
V5T1
Model No
V5T1
$112.93
Product Highlights
- Supports up to 5MP @ 20FPS
- IR Distance: 98™ (depending on scene reflection)
- DWDR
- 12VDC Operation (power supply not included)
- IP67 weather resistance
Speak to an expert

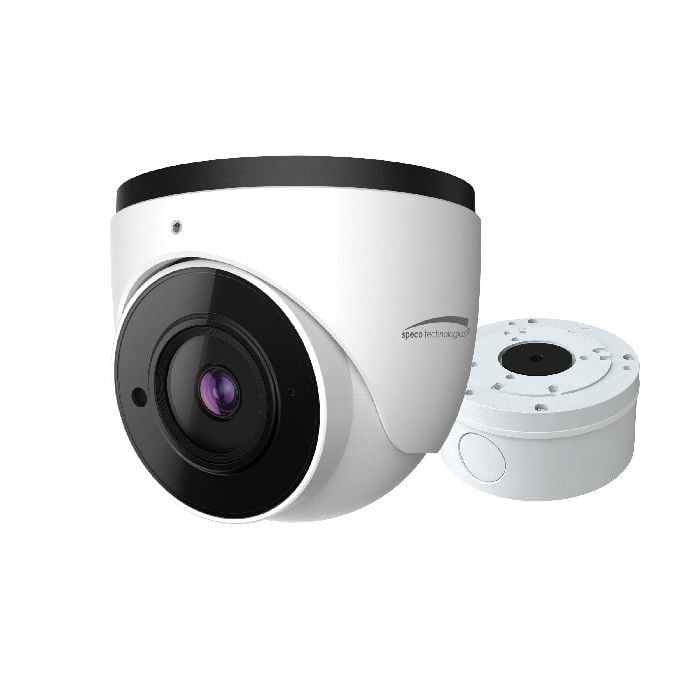

The V5T1 from Speco is a 5 megapixel HD-TVI IR turret camera with included junction box and a 2.8mm lens, designed to deliver high-quality video footage and enhance security measures in various environments.
Speco V5T1 Camera Features
- Supports up to 5MP @ 20FPS: Enjoy crystal-clear images and smooth motion capture, ensuring that every detail is visible.
- IR Distance: 98’: Provides superior night vision capabilities, allowing for effective surveillance even in low-light conditions, based on scene reflection.
- DWDR: Digital Wide Dynamic Range technology enhances visibility in challenging lighting conditions, offering improved image clarity in both bright and dark areas.
- 12VDC Operation: Flexibility in installation with compatibility for standard power supplies (not included), giving you options for power management.
- IP67 Weather Resistance: Built to withstand harsh weather conditions, ensuring durability and reliable performance in outdoor applications.
Detail Specifications for Speco V5T1
| Feature | Details |
|---|---|
| Image Sensor | 5 Megapixel HD-TVI |
| Lens | 2.8mm |
| Frame Rate | 20FPS at 5MP |
| Night Vision | Infrared up to 98’ (distance depends on scene reflection) |
| Dynamic Range | Digital Wide Dynamic Range (DWDR) |
| Power Supply | 12VDC (not included) |
| Weatherproof Rating | IP67 |
SKU  | V5T1 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
Camera Signal  | Analog, HD-TVI |
| Resolution | 5 Megapixel |
| Sensor Option | 1/2.7" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) |
| Image Device | Progressive scan 1/2.7” CMOS |
| IR Distance | 29m/98ft |
| Minimum Scene Illumination | Color: 0.01lux @ F1.2(AGC ON); B/W: 0 lux @ IR ON |
| Operating Humidity | 10% ~ 90% |
| Operating Temperature | -22°F - 122°F |
| Dimensions (W x H) | 3.3”(H) x 3.7”(Dia.) |
| Power Consumption | IR OFF ≤ 1W; IR ON ≤ 4W |
| S/N Ratio | ≥ 52dB (AGC OFF) |
| Video Output | AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) |
| Weatherproof | IP67 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
