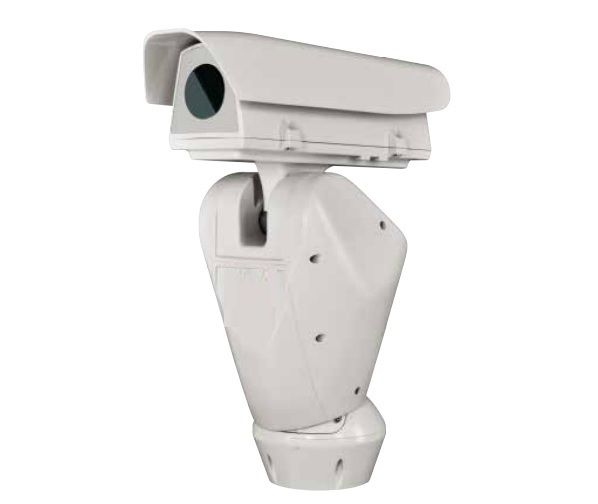

Pelco UPKT2AFSAN00AH 640 X 512 Network IR Outdoor PTZ Camera with 3X Lens, 24vAC
SKU
UPKT2AFSAN00AH
Model No
UPKT2AFSAN00AH
$28,002.63
Product Highlights
- PTZ unit with factory-assembled and pre-configured thermal camera and lens
- Continuous zoom lens, 3x thermal optics, 35-105mm and digital zoom up to 8x, 24x total zoom
- Sensor: Uncooled Microbolometer (VOx), 17 µm pixel dimension
- Analogue or IP (ONVIF S) versions
- Advanced Autofocus system
Speak to an expert
2 Megapixel Network IR Outdoor Bullet Camera
- The Hikvision DS-2CD2025FHWD-I-6MM Outdoor IR Fixed Network Bullet Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage. The camera is equipped with a 6 mm lens and offers an EXIR 2.0 range of up to 100 ft (30 m). Smart features such as line crossing, intrusion, unattended luggage, and scene change detection are also supported.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
Onvif
Privacy Masking
Weather Resistant
WDR
Camera Features
| 1/2.8" (2 MP) Progressive Scan CMOS | H.265+, H.265, H.264+, H.264 |
| Up to 1920 x 1080 Resolution @ 60 fps | 120 dB True WDR |
| Minimum Illumination Color: 0.009 lux @ (F1.6, AGC on), 0 lux with IR | MicroSD Card Slot Supports 128 GB |
| Darkfighter Technology | IP67 Protection |
| Up to 100 ft (30 m) EXIR 2.0 Range | 12 VDC and PoE (802.3af) |
| 6 mm Lens |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | UPKT2AFSAN00AH |
|---|---|
| Features | Auto Gain Control, Digital Zoom, ONVIF, Weather Resistant |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 512 |
| Lens Type | Motorized Zoom |
| Lens Size | 3X |
| Mount Type | Bracket Required |
| Compression Method | H.264, JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Dimensions (W x H) | 66x33x57cm (26x13x22in) - |
| Electronic Shutter | Internal shutter (only for sensor compensation): Video stop < 1sec. |
| Operating Humidity | 10% to 95% (no condensation) |
| Operating Temperature | -40°C (-40°F) to +65°C (149°F) |
| Power Consumption | 100W max |
| Protocols | AMERICAN DYNAMICS, ERNITEC, PANASONIC, PELCO D, MACRO |
| Weatherproof | IP66 |
| Angle of View | Wide: 17.97°H, 14.33°V, Zoom tele: 5.93°H, 4.75°V |
| Auto Gain Control | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
