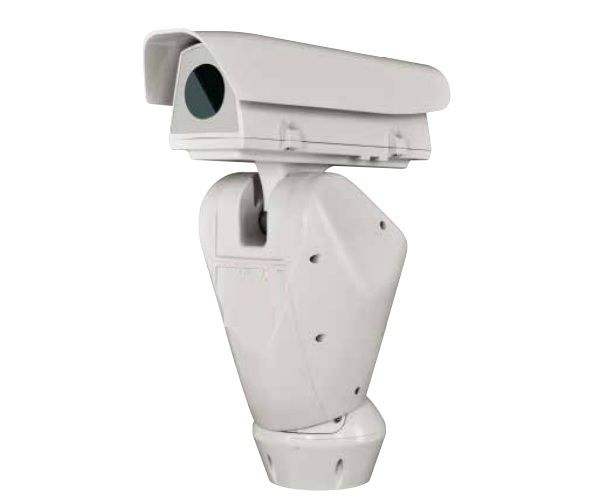

Pelco UPKT1BFSA000A 640 X 512 Network IR Outdoor PTZ Camera with 3X Lens, 230vAC
SKU
UPKT1BFSA000A
Model No
UPKT1BFSA000A
$19,100.94
Product Highlights
- PTZ unit with factory-assembled and pre-configured thermal camera and lens
- Continuous zoom lens, 3x thermal optics, 35-105mm and digital zoom up to 8x, 24x total zoom
- Sensor: Uncooled Microbolometer (VOx), 17 μm pixel dimension
- Analogue or IP (ONVIF S) versions
- Advanced Autofocus system
Speak to an expert
Introducing the Pelco UPKT1BFSA000A, a high-performance 640 x 512 network IR outdoor PTZ camera designed to provide exceptional surveillance capabilities. With its 3X lens and robust outdoor functionality, this camera ensures reliable performance in various conditions, making it ideal for both commercial and residential security needs.
Pelco UPKT1BFSA000A Camera Features
- High Resolution: 640 x 512 resolution for crisp image quality, ensuring that every detail is captured clearly for enhanced monitoring.
- IR Capabilities: Equipped with infrared technology, this camera can capture clear images in complete darkness, ensuring 24/7 surveillance.
- PTZ Functionality: Pan-tilt-zoom capabilities allow for flexible monitoring and the ability to track moving objects with ease.
- Weatherproof Design: Built for outdoor use, this camera is resistant to various environmental conditions, guaranteeing durability and reliability.
- 230vAC Power: Utilizes standard power supply for easy installation and less maintenance hassle, ensuring consistent performance.
Detailed Camera Specifications for Pelco UPKT1BFSA000A
| Resolution | 640 x 512 |
| Lens Type | 3X Optical Zoom |
| IR Range | Up to 30 meters |
| Power Supply | 230vAC |
| Outdoor Rating | IP66 |
| PTZ Control | Full 360-degree rotation |
SKU  | UPKT1BFSA000A |
|---|---|
| Features | Auto Gain Control, Digital Zoom, ONVIF, Weather Resistant |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 512 |
| Lens Type | Motorized Zoom |
| Lens Size | 3X |
| Mount Type | Bracket Required |
| Compression Method | H.264, JPEG |
| Durability | Weather Resistant |
| Voltage | 230vAC |
| Dimensions (W x H) | 66x33x57cm (26x13x22in) - |
| Electronic Shutter | Internal shutter (only for sensor compensation): Video stop < 1sec. |
| Operating Humidity | 10% to 95% (no condensation) |
| Operating Temperature | -40°C (-40°F) to +65°C (149°F) |
| Power Consumption | 100W max |
| Protocols | AMERICAN DYNAMICS, ERNITEC, PANASONIC, PELCO D, MACRO |
| Weatherproof | IP66 |
| Angle of View | Wide: 17.97°H, 14.33°V, Zoom tele: 5.93°H, 4.75°V |
| Auto Gain Control | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
