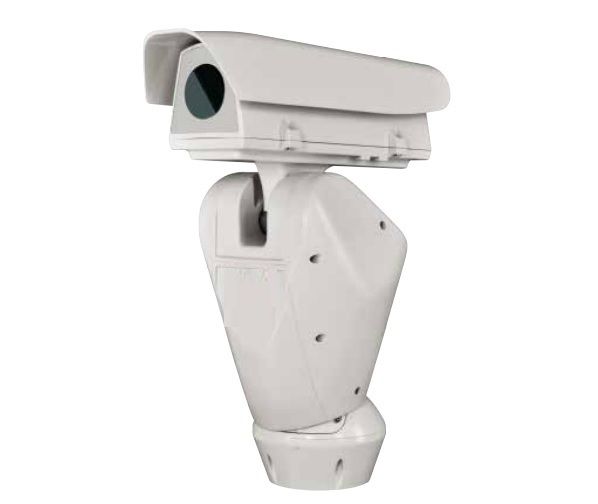

Pelco UPKT1AFSA000A 640 X 512 Network IR Outdoor PTZ Camera with 3X Lens, 230vAC
SKU
UPKT1AFSA000A
Model No
UPKT1AFSA000A
$32,126.20
Product Highlights
- PTZ unit with factory-assembled and pre-configured thermal camera and lens
- Continuous zoom lens, 3x thermal optics, 35-105mm and digital zoom up to 8x, 24x total zoom
- Sensor: Uncooled Microbolometer (VOx), 17 μm pixel dimension
- Analogue or IP (ONVIF S) versions
- Advanced Autofocus system
Speak to an expert
The Pelco UPKT1AFSA000A is a cutting-edge thermographic thermal and optical bi-spectrum network bullet camera designed for various industrial applications such as substations, hydropower stations, and manufacturing workshops. This device provides accurate temperature measurement and exception alarms to enhance safety and loss prevention.
Pelco UPKT1AFSA000A Camera Features
- Resolution: 384 - 288 resolution ensures clear and detailed thermal images for accurate monitoring.
- Temperature Exception Alarm: The camera provides early fire prevention alerts, enhancing safety protocols and risk management.
- Wide Temperature Range: Operates between -20° to 550° C (-4° to 1022° F) with a maximum accuracy of ±2° C and ±2%, making it suitable for various environments.
- Advanced Image Processing: Utilizes Linear, Histogram, Self-Adaptive Thermal AGC Mode, and DDE technologies to improve image clarity and reliability under different conditions.
- Fire Detection Algorithm: Incorporates specialized algorithms for effective fire detection, ensuring rapid response to potential hazards.
Pelco UPKT1AFSA000A Detailed Specifications
| Resolution | 384 - 288 |
| Temperature Measurement Range | -20° to 550° C (-4° to 1022° F) |
| Measurement Accuracy | ±2° C, ±2% |
| NETD | ≤35 mK (25° C, F# = 1.0) |
| Image Processing Technology | Linear, Histogram, Self-Adaptive Thermal AGC Mode, DDE, 3D DNR |
| Fire Detection Algorithm | Yes |
SKU  | UPKT1AFSA000A |
|---|---|
| Features | Auto Gain Control, Digital Zoom, ONVIF, Weather Resistant |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 512 |
| Lens Type | Motorized Zoom |
| Lens Size | 3X |
| Mount Type | Bracket Required |
| Compression Method | H.264, JPEG |
| Durability | Weather Resistant |
| Voltage | 230vAC |
| Dimensions (W x H) | 66x33x57cm (26x13x22in) - |
| Electronic Shutter | Internal shutter (only for sensor compensation): Video stop < 1sec. |
| Operating Humidity | 10% to 95% (no condensation) |
| Operating Temperature | -40°C (-40°F) to +65°C (149°F) |
| Power Consumption | 100W max |
| Protocols | AMERICAN DYNAMICS, ERNITEC, PANASONIC, PELCO D, MACRO |
| Weatherproof | IP66 |
| Angle of View | Wide: 17.97°H, 14.33°V, Zoom tele: 5.93°H, 4.75°V |
| Auto Gain Control | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
