Pelco UPK3PEWAN00B 2 Megapixel Network Outdoor PTZ Camera with 33X
SKU
UPK3PEWAN00B
Model No
UPK3PEWAN00B
$30,046.55
Product Highlights
- PTZ unit with a factory-assembled and pre-configured camera and 500mm lens
- Minimum Illumination, Colour (ICR-OFF): 0.041 lx 1/25s F3.0, 50 IRE, Minimum Illumination, B/W (ICR-ON): 0.005 lx 1/25s F3.0, 50 IRE
- IR corrected lens
- Advanced Autofocus system
- Thermal Compensation System and Visible Cut Filter
Speak to an expert
2 Megapixel Network Outdoor PTZ Camera
- ULISSE RADICAL is the first PTZ Full HD Pelco network system ready for use that integrates exceptional lens and pre-configured camera combinations, Full HD 1080p,60fps and CMOS 1/2.8" sensors, for night and day broadcast quality video in extensive outdoor areas.
- To meet more specific video surveillance needs, the PTZ unit is equipped with a 33x lens with advanced autofocus which allows and automatically maintains focus on a subject that is very far away with clear details. ULISSE RADICAL is certified ONVIF Profile S and is compatible with most VMS on the market. The Pelco's PTZ ASSISTANT plug-in software supports any VMS with the control of all special functions such as a wiper, washer pump, IR, and Auto Focus.

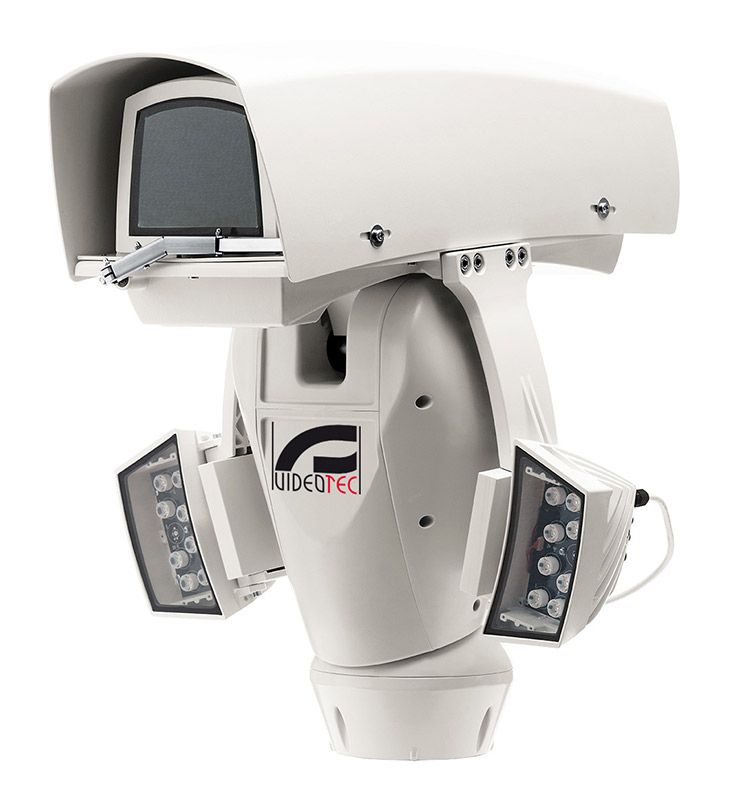

- Powerful motors guarantee exceptionally smooth tracking, even at a minimum speed of 0.02°/sec.The performance remains optimal in complete darkness thanks to powerful LED illuminators that can reach distances of over 300m (985ft) with two UPTIRN illuminators (10°, 850nm). ULISSE RADICAL with 33x zoom features a Thermal Compensation System and a Visible Cut Filter. Due to its characteristics of accuracy, reliability, and robustness, this PTZ camera is the ideal solution for the visual control of large outdoor areas, such as border patrol, harbor surveillance, long-distance perimeter surveillance, traffic and highway control, and military installations.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
Onvif
Weather Resistant
WDR
Camera Features
| PTZ unit with a factory-assembled and pre-configured camera and 500mm lens | Total control of the auxiliary functions through the Pelco PTZ ASSISTANT |
| Minimum Illumination, Colour (ICR-OFF): 0.041 lx 1/25s F3.0, 50 IRE | Horizontal continuous rotation |
| Minimum Illumination, B/W (ICR-ON): 0.005 lx 1/25s F3.0, 50 IRE | Optical sensors for absolute positioning feedback |
| IR corrected lens | Position accuracy: 0.02° |
| Advanced Autofocus system | Up to 250 Presets |
| Thermal Compensation System and Visible Cut Filter | Integrated wiper |
| Pre-wired camera and lens through Snap-On connector for easy installation and maintenance | Power supply: 230Vac, 24Vac or 120Vac |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Pelco Products
SKU  | UPK3PEWAN00B |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 33X |
| Mount Type | Bracket Required |
| Compression Method | H.264, JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC, 120vAC, 230vAC |
| Dimensions (W x H) | 76x41x67cm (30x16x26.4in) |
| Electronic Shutter | Automatic Electronic Shutter (AES, Automatic Electronic Shutter); Fixed shutter (from 1/25 [30] up to 1/15000)selectable; Default shutter |
| Image Device | 1/2.8" sensor CMOS |
| Image Pixels-Effective | 2 Megapixel |
| Operating Humidity | 10% up to 95% (no condensation) |
| Operating Temperature | -40°C (-40°F) up to +60°C (140°F) |
| Power Consumption | 24W, P&T static (stand-by), heating switched off, 100W, P&T in motion, heating switched on |
| Protocols | ONVIF, Profile S (TCP/IPv4, UDP/IPv4, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, RTSP, RTCP, RTP |
| S/N Ratio | Over 55 dB |
| Weatherproof | IP66 |
| Angle of View | Horizontal Viewing Angle: from 20.51° (wide end) up to 0.65° (tele end), Vertical Viewing Angle: from 11.58° (wide end) up to 0.36° (tele end) |
| Back Light Compensation | On/Off/Intelligent Auto Exposure (IAE) |
| Automatic White Balance | 2500K up to 10000K, 4 automatic modes (base, standard, sodium lamp, dominant colour), Manual mode and Hold mode |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
