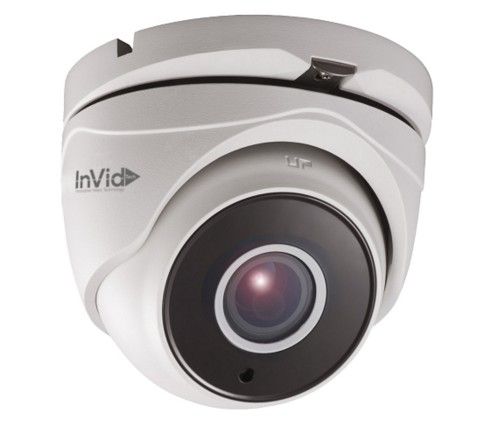

InVid ULT-C3TXIRM2812 3 Megapixel HD-TVI Outdoor IR Turret Camera, 2.8-12mm Lens
SKU
ULT-C3TXIRM2812
Model No
ULT-C3TXIRM2812
$173.00
Product Highlights
- 3 Megapixel (2052 x 1536) Resolution
- Motorized 2.8-12mm Lens
- True Day/Night
- True WDR 120dB
- 150’ IR Range with EXIR Technology
The ULT-C3TXIRM2812 from InVid is a 3 megapixel TVI outdoor turret with 2.8-12mm motorized lens, WDR, 150’ EXIR range, 12VDC.
Features
- 3 Megapixel (2052 x 1536) Resolution
- Motorized 2.8-12mm Lens
- True Day/Night
- True WDR 120dB
- 150’ IR Range with EXIR Technology
- Up The Cable (UTC) Function
- IP66 Weather Resistant
- Withstand up to -40° Operation
- 12VDC Only Operation
SKU  |
ULT-C3TXIRM2812 |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer |
InVid |
Camera Signal  |
HD-TVI |
| Resolution |
2052 X 1536 |
| Sensor Option |
3 MP CMOS |
| Lens Type |
Varifocal |
| Lens Size |
2.8-12mm |
| Infrared Distance |
101 Feet + |
| Durability |
Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC |
| Electronic Shutter |
1/25 s to 1/50,000 s |
| Image Device |
3MP CMOS |
| Image Pixels-Effective | 2052 (H)*1536 (V) |
| IR Distance |
45m/150ft |
| Minimum Scene Illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Operating Humidity |
90% or less (non-condensing) |
| Operating Temperature |
-40 °F – 140 °F (-40 °C – 60 °C) |
| Dimensions (W x H) |
5.29 x 4.88 x 4.39in (134.3 x 123.9 x 111.5mm) |
| OSD Menu |
English, Japanese, CHN1, CHN2, Korean, German,French, Italian, Spanish, Polish, Russian, Portuguese,Dutch, Turkish, Hebrew and Arabic |
| Power Consumption |
Max. 6W |
| Privacy Zone |
On/Off, maximum 8 zones |
| S/N Ratio |
More than 62dB |
| Signal System |
PAL / NTSC |
| Video Output |
1 Analog HD output |
| Weatherproof |
IP66 |
| Synchronization |
Internal |
| Angle of View |
Pan: 0 – 360°, Tilt: 0 – 75° |
| Backlight Compensation |
Support |
| Rotation Angle | 0 – 360° |
| Automatic White Balance |
ATW, MWB |
| Auto Gain Control |
Support |
| Flickerless |
On/Off |
| Motion Detection |
On/Off, maximum 4 zones |
| Back Light Compensation |
Yes |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Mirror |
Yes |
| On Screen Display Menu |
Yes |
| Wide Dynamic Range |
Yes |
| Privacy Masking |
Yes |
| Auto Gain Control |
Yes |
| Flickerless |
Yes |
| Motion Detection Tracking |
Yes |
