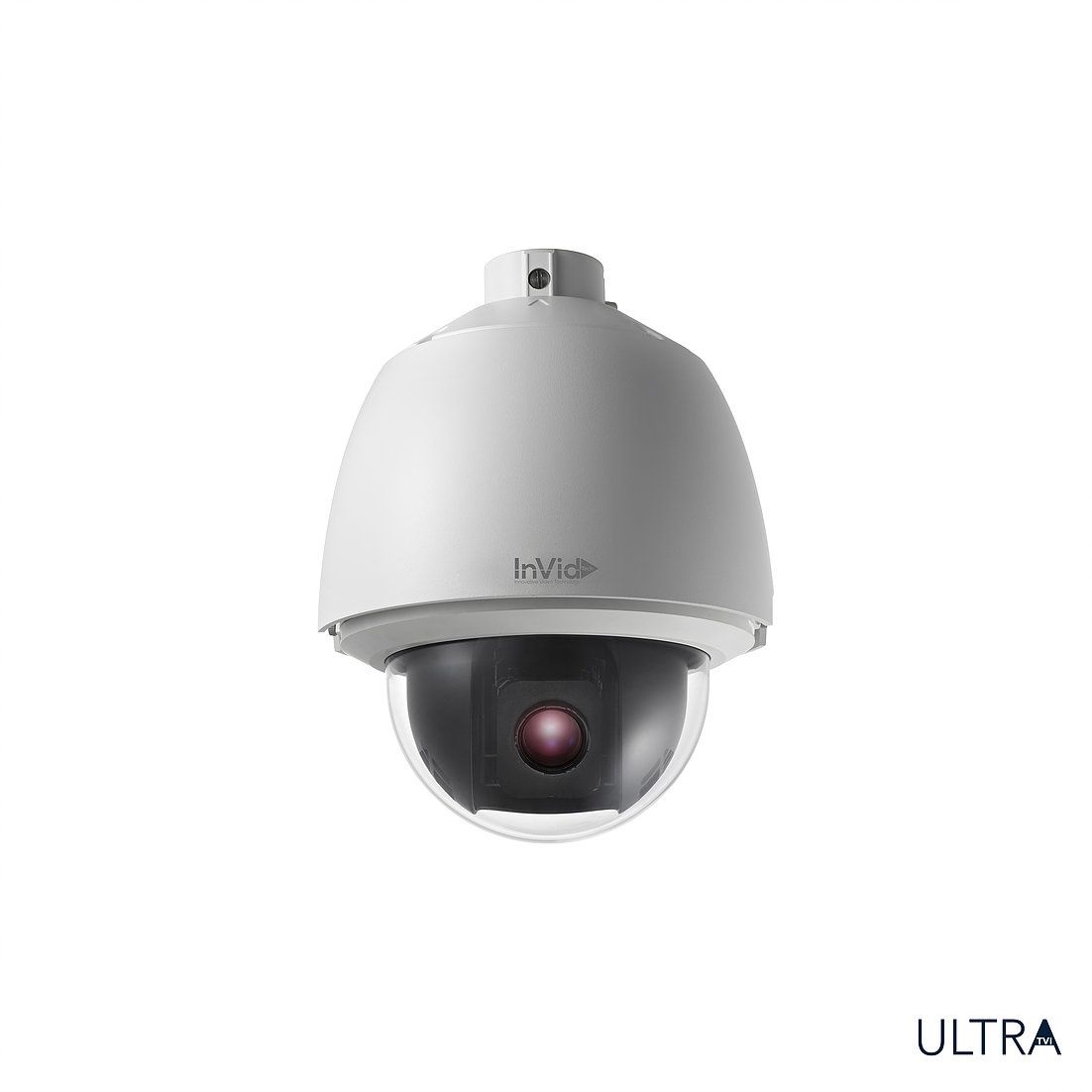

InVid ULT-C2PTZ23 2 Megapixel TVI Outdoor PTZ Camera, 23X Lens, White Housing
SKU
ULT-C2PTZ23
Model No
ULT-C2PTZ23
was $675.00 Special Price $585.00
Product Highlights
- 2 Megapixel (1920 x 1080) Resolution
- 23x Optical Zoom (16x Digital Zoom)
- Digital WDR
- CVBS Video Output
- IP66 Weather Resistant
Speak to an expert
The ULT-C2PTZ23 from Invid is a cutting-edge 2 Megapixel TVI Outdoor PTZ Camera featuring a powerful 23X lens, perfect for high-resolution surveillance in various conditions. Its robust build and advanced technology offer reliable performance and exceptional image clarity, making it ideal for outdoor security.
InVid ULT-C2PTZ23 Camera Features
- 2 Megapixel (1920 x 1080) Resolution: Experience crystal-clear video quality that captures fine details for enhanced security monitoring.
- 23x Optical Zoom (16x Digital Zoom): Zoom in on distant objects without losing image quality, allowing for precise observation of various areas.
- Digital WDR: Benefit from improved visibility in challenging lighting conditions, ensuring clarity in both bright and dark areas.
- CVBS Video Output: Provides versatility in connecting to various devices, making the installation and integration process seamless.
- IP66 Weather Resistant: Ensures durability against harsh weather conditions, making it suitable for outdoor use without worrying about damage.
- Operates to -22° F: Guarantees reliable operation in extreme cold, ensuring consistent performance for all-weather surveillance.
InVid ULT-C2PTZ23 Detailed Specifications
| Resolution | 2 Megapixel (1920 x 1080) |
| Optical Zoom | 23x |
| Digital Zoom | 16x |
| Digital WDR | Yes |
| Video Output | CVBS |
| Weather Resistance | IP66 |
| Operating Temperature | -22° F |
SKU  | ULT-C2PTZ23 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | InVid |
Camera Signal  | HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 1/3" CMOS |
| Lens Type | Motorized Zoom |
| Lens Size | 23X |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Mount Type | Pendant |
| Voltage | 24vAC |
| Electronic Shutter | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
| Image Device | 1/3" CMOS |
| Image Pixels-Effective | 1920 x 1080 |
| Minimum Scene Illumination | Color: 0.02Lux@(F1.6,AGC ON), B/W: 0.002Lux@(F1.6,AGC ON) |
| Operating Temperature | -30 °C-65°C(-22°F-149°F) |
| Dimensions (W x H) | φ220×353.4mm (φ8.66”×13.91”) |
| OSD Menu | English, Chinese |
| Power Consumption | Max. 20W |
| Privacy Zone | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
| S/N Ratio | ≥ 50dB |
| Signal System | NTSC/PAL |
| Video Output | 1 HD-TVI out (up to 1200ft with RG59U 95%) |
| Weatherproof | IP66 |
| Angle of View | 49-2.2 degree(Wide-Tele) |
| Backlight Compensation | Support |
| Automatic White Balance | Auto / Manual / ATW / Indoor / Outdoor |
| Auto Gain Control | Auto / Manual |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Digital Zoom | Yes |
