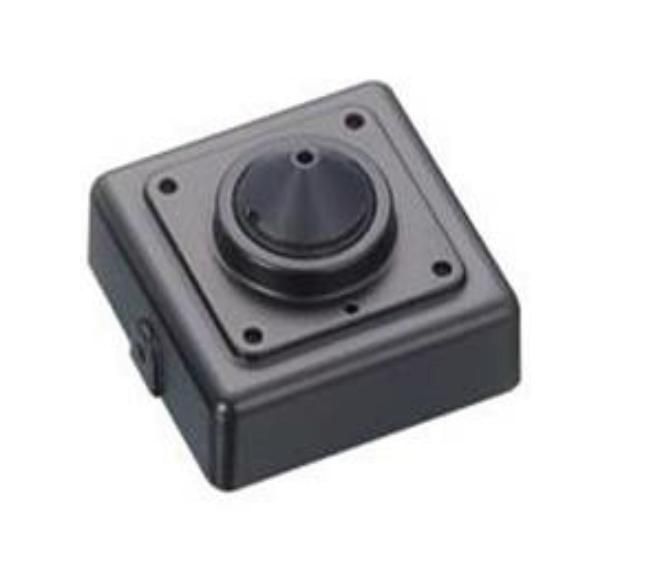

InVid ULT-ALLMIP43 1080p HD-TVI/CVI/AHD/Analog Miniature Conical Pinhole Camera, 4.3mm
SKU
ULT-ALLMIP43
Model No
ULT-ALLMIP43
$109.00
Product Highlights
- 1/3 Panasonic 2.2 Megapixel Progressive Scan CMOS
- 1080p Hybrid HD (TVI/CVI/AHD)
- CVBS (960H) Option
- 3D-DNR (Digital Noise Reduction)
- Sens-up

Speak to an expert
The ULT-ALLMIP43 from InVid is an all-in-one 2 megapixel/1080p TVI/CVI/AHD or analog miniature square camera, designed for high-definition video applications with a compact form factor that allows for discreet installation.
InVid ULT-ALLMIP43 Camera Features
- 1/3” Panasonic 2.2 Megapixel Progressive Scan CMOS: Provides high-resolution imaging, ensuring clear and detailed video capture.
- 1080p Hybrid HD (TVI/CVI/AHD): Offers versatile compatibility with various video formats for flexible integration into existing systems.
- CVBS (960H) Option: Supports legacy systems, increasing the camera's usability across different installations.
- 3D-DNR (Digital Noise Reduction): Enhances image quality by reducing noise in low-light conditions, resulting in sharper and clearer visuals.
- Sens-up: Improves performance in low-light environments, allowing for better visibility even in dark settings.
- D-WDR: Dynamic Wide Range Technology balances the light in challenging scenes, providing better detail in both bright and dark areas.
- OSD Remote (Attached to cable): Simplifies camera setup and configuration, making adjustments easy and efficient.
- 25 x 25mm Mini Square: Its compact design allows for inconspicuous placement in various environments without drawing attention.
- 12VDC Operation: Easily integrates with existing power systems, providing convenience in installation.
Detailed Specifications for InVid ULT-ALLMIP43
| Feature | Details |
| Camera Type | Miniature Pinhole Camera |
| Image Sensor | 1/3” Panasonic 2.2 Megapixel Progressive Scan CMOS |
| Resolution | 1080p HD |
| Video Format Support | TVI, CVI, AHD, CVBS (960H) |
| Digital Noise Reduction | 3D-DNR |
| Low-Light Enhancement | Sens-up Technology |
| Wide Dynamic Range | D-WDR |
| Dimensions | 25 x 25mm |
| Power Supply | 12VDC |
| SKU | ULT-ALLMIP43 |
|---|---|
| Features | Auto Gain Control, Digital Noise Reduction, On Screen Display Menu, Wide Dynamic Range |
| Manufacturer | InVid |
| Camera Signal | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 4.3mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| Electronic Shutter | 60Hz : 1/30~1/30,000sec, 50Hz : 1/25~1/30,000sec |
| Image Device | 1/3” type Panasonic MOS |
| Image Pixels Total | 1956(H) x1266(V) : 2.48Mega pixel |
| Image Pixels-Effective | 1944(H) x 1092(V) :2.12Mega pixel |
| Minimum Scene Illumination | [email protected] , 30IRE |
| Operating Humidity | Less than 80% |
| Operating Temperature | 14°~122° (-10℃~+50℃) |
| Power Consumption | DC12V(±10%), Max.130mA |
| Scanning System | Progressive Scan |
| Video Output | TVI/CVI/AHD/CVBS(960H) |
| Synchronization | Internal |
| Digital Noise Reduction | 3D-DNR |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
