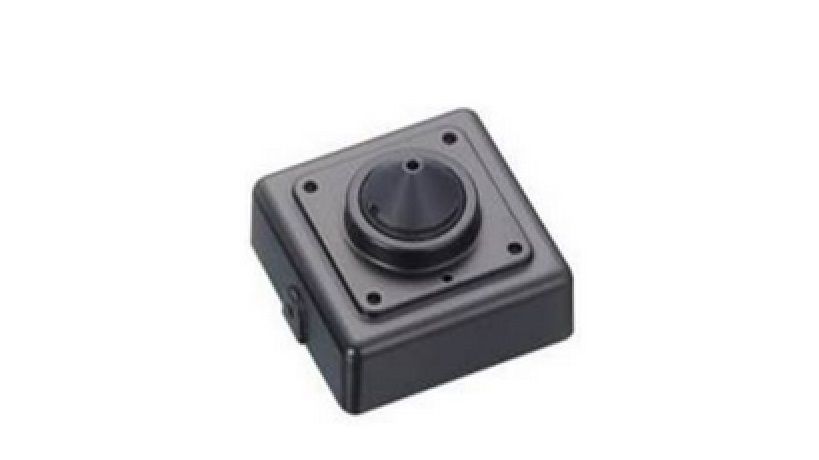

InVid ULT-ALLMIP28 2 Megapixel TVI / AHD / CVI / Analog, Indoor Mini Metal Case, 2.8mm Conical Pinhole Lens, Black Housing

SKU
ULT-ALLMIP28
Model No
ULT-ALLMIP28
$120.65
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/3″ Panasonic 2.2 Megapixel Progressive Scan CMOS
  • 1080p Hybrid HD (TVI/CVI/AHD)
  • CVBS (960H) Option
  • 3D-DNR (Digital Noise Reduction)
  • Sens-up

The ULT-ALLMIP28 from Invid is a highly versatile surveillance camera featuring a 2 Megapixel TVI/AHD/CVI/Analog system housed in a compact mini metal case. Equipped with a 2.8mm conical pinhole lens, this camera offers exceptional clarity and image quality while maintaining a discreet profile suitable for various indoor settings.

InVid ULT-ALLMIP28 Camera Features

  • 1/3” Panasonic 2.2 Megapixel Progressive Scan CMOS: Delivers high-resolution images with impressive detail, ideal for monitoring large areas.
  • 1080p Hybrid HD (TVI/CVI/AHD): Supports multiple formats ensuring compatibility with various DVRs and seamless integration into existing setups.
  • CVBS (960H) Option: Provides additional flexibility for compatibility with traditional analog systems.
  • 3D-DNR (Digital Noise Reduction): Enhances image quality in low-light conditions by reducing video noise, resulting in clearer images.
  • Sens-up: Increases sensitivity in low-light situations for improved visibility without additional lighting.
  • D-WDR: Dynamic Wide Dynamic Range processing ensures balanced exposure in scenes with bright and dark areas, enhancing detail.
  • OSD Remote (Attached to cable): Allows for easy adjustment of camera settings remotely, simplifying installation and configuration.
  • 25 x 25mm Mini Square: Compact design enables discreet installation in tight spaces without compromising functionality.
  • 12VDC Operation: Convenient power input that supports widespread voltage sources, facilitating straightforward installation.

InVid ULT-ALLMIP28 Detailed Specifications

Camera Type2 Megapixel TVI/AHD/CVI/Analog
Lens Type2.8mm Conical Pinhole Lens
Image Sensor1/3” Panasonic 2.2 Megapixel Progressive Scan CMOS
Video Output1080p Hybrid HD, CVBS (960H)
Noise Reduction3D-DNR (Digital Noise Reduction)
Dynamic RangeD-WDR
Dimensions25 x 25mm Mini Square
Power Supply12VDC Operation
SKU  ULT-ALLMIP28
Features  Auto Gain Control, Digital Noise Reduction, On Screen Display Menu, Wide Dynamic Range
Manufacturer  InVid
Camera Signal     HD-AHD, HD-CVI, HD-TVI
Resolution    2 Megapixel
Sensor Option    1/3" CMOS
Lens Type    Fixed
Lens Size    2.8mm
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Bracket Required
Voltage  12vDC
Image Device    1/3" CMOS
Minimum Scene Illumination  [email protected] , 30IRE
Operating Humidity    Less than 80%
Operating Temperature    14°~122° (-10°C~+50°C)
Power Consumption  Max.130mA
Scanning System    Progressive Scan
Video Output    TVI/CVI/AHD/CVBS(960H)
Synchronization  Internal
Angle of View    (125(H)/82(V)/56(D))
Digital Noise Reduction    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Auto Gain Control    Yes
