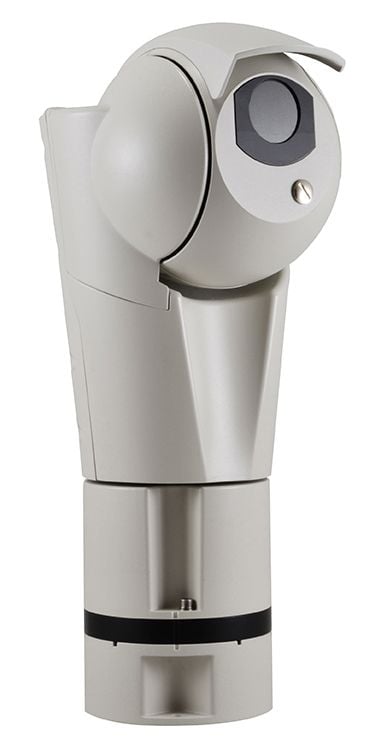

Pelco UET2GA000AH 640 X 512 Network Outdoor PTZ Thermal Camera with 13mm Lens
SKU
UET2GA000AH
Model No
UET2GA000AH
$12,764.00
Product Highlights
- Designed to resist and last
- Thermal camera with radiometric functions
- Unbeatable solution for outdoor applications
- PoE compatible with standard IEEE.802.3bt
Speak to an expert
640 X 512 Network Outdoor PTZ Thermal Camera
- The modern, linear design of ULISSE EVO THERMAL combines maximum strength and operational reliability with greatly reduced weight. This means easy and quick assembly and therefore lower installation costs and zero maintenance. It is designed to guarantee total reliability and continuous operations in the most challenging outdoor environments. It is ultra-resistant to corrosion and can withstand a wide temperature range (from -40°C to +65°C). The extra-sturdy structure is guaranteed by IK10, IP66/IP67/IP68, NEMA TYPE 4X and TYPE 6P protection ratings. Exceptional wind resistance up to 230km/h with PTZ moving at maximum speed.
- ULISSE EVO THERMAL has obtained Lloyd's Register Marine Type Approval for the maritime and shipping sector and complies with the standard for railway applications.The modern, linear design of ULISSE EVO THERMAL combines maximum strength and operational reliability with greatly reduced weight. This means easy and quick assemblyand therefore lower installation costs and zero maintenance. It can even be mounted upside down, in the typical speed domes position. The supports can be supplied withquick-fit connectors for Ethernet/PoE, power supply, and I/O. This means the unit can be replaced quickly and easily in case of on-site intervention. ULISSE EVO THERMAL can be powered with PoE 90W according to the IEEE.802.3bt standard. This guarantees compatibility with the most common power injectors available on the market, while maintaining backwards compatibility with PoH power injectors (OHEP90INJ or OHEP90INJO).
Camera Functions
Auto Gain Control
Digital Zoom
Motion Detection
On Screen Display Menu
Onvif
Vandal Resistant
Weather Resistant
Camera Features
| Designed to resist and last | Unbeatable solution for outdoor applications |
| Thermal camera with radiometric functions | PoE compatible with standard IEEE.802.3bt |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Pelco Products
SKU  | UET2GA000AH |
|---|---|
| Features | Auto Gain Control, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Vandal Resistant, Weather Resistant |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 512 |
| Lens Type | Fixed |
| Lens Size | 13mm |
| Mount Type | Pedestal |
| Compression Method | H.264, MPEG-4, M-JPEG, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC, 24vAC, PoE |
| Dimensions (W x H) | 27x30x50cm (10.6x11.8x19.6in) - |
| Electronic Shutter | Video stop <1s |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to -10°C (14°F) |
| Power Consumption | 90W |
| Protocols | ONVIF, Profile Q, Profile S and Profile T, ONVIF, TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, DSCP, IGMP (Multicast), SOAP, DNS, RTSP, RTCP, RTP/IPv4-IPv6, HTTP |
| Weatherproof | IP66/IP67/IP68 |
| Angle of View | 45° HFOV |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
