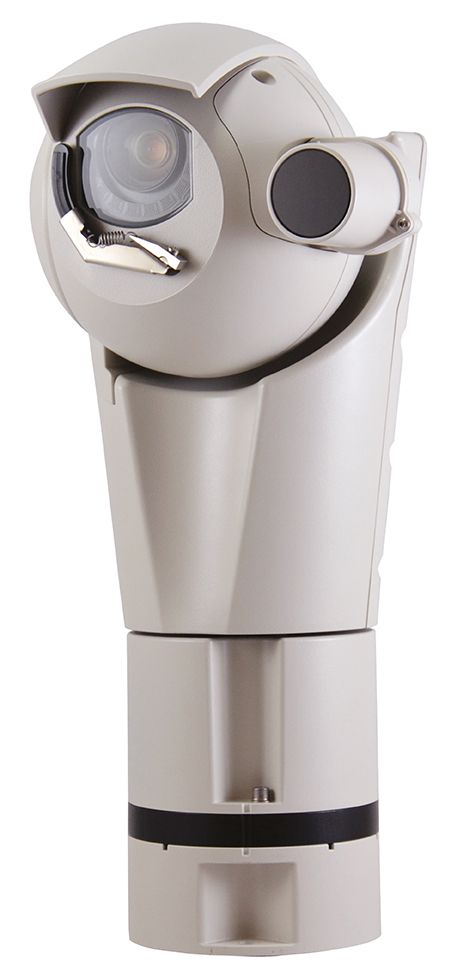

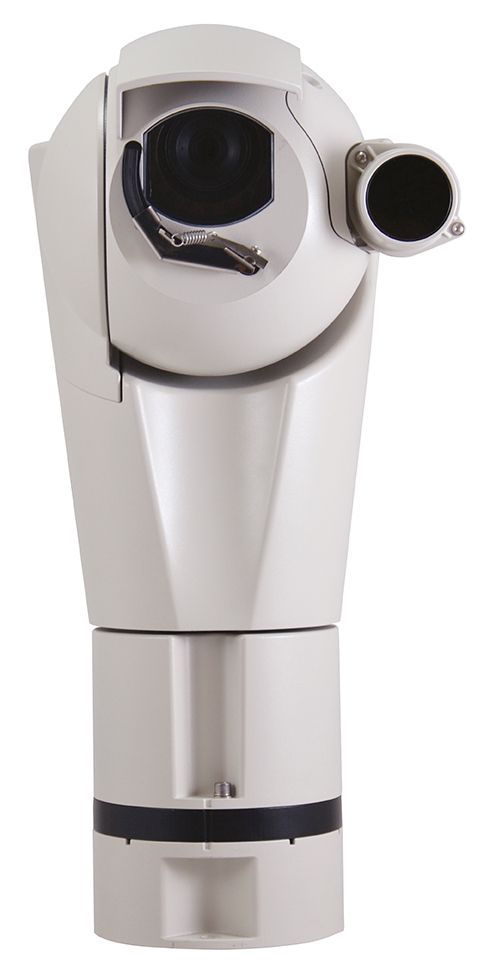

Pelco UED22LA000A 2 Megapixel Network Outdoor PTZ Camera with 30X Lens
SKU
UED22LA000A
Model No
UED22LA000A
$19,586.74
Product Highlights
- Unbeatable solution for video surveillance of perimeters and critical areas
- Designed to endure outdoor applications
- Maximum detection accuracy
- PoE compatible with standard IEEE.802.3bt
- Easy to install
Speak to an expert
The Pelco UED22LA000A 2 Megapixel Network Outdoor PTZ Camera is engineered for superior video surveillance in outdoor environments. With its impressive 30X optical zoom lens and robust design, this camera ensures maximum detection accuracy and reliability for monitoring critical areas. It's PoE compatible for easy installation, making it the ideal solution for perimeter security.
Pelco UED22LA000A Camera Features
- Outstanding Surveillance: Unbeatable solution for video surveillance of perimeters and critical areas, providing high-quality footage and reliable monitoring.
- Durable Design: Designed to endure outdoor applications, ensuring long-lasting performance in various weather conditions.
- High Detection Accuracy: Maximum detection accuracy facilitates precise monitoring, reducing false alarms and enhancing security effectiveness.
- Power Over Ethernet: PoE compatible with standard IEEE.802.3bt, allowing for simplified installation and reduced cabling requirements.
- Hassle-Free Setup: Easy to install, making it convenient for both professional and DIY users to set up without extensive technical knowledge.
Pelco UED22LA000A Detailed Specifications
| Camera Resolution | 2 Megapixels |
| Optical Zoom | 30X |
| Lens Type | PTZ (Pan-Tilt-Zoom) |
| Network Compatibility | PoE IEEE.802.3bt |
| Operating Environment | Outdoor |
| Installation Type | Easy installation, suitable for various mounting options |
| Application | Ideal for perimeter surveillance and critical area monitoring |
SKU  | UED22LA000A |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 27x30x50cm (10.6x11.8x19.6in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Image Pixels-Effective | 2.13 Megapixels |
| Minimum Scene Illumination | Colour: 0.0013lx (50 IRE, High sensitivity on), B/W: 0.0008lx (30 IRE, High sensitivity on) |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +60°C (140°F) (+65°C (149°F) |
| Power Consumption | 90W |
| Privacy Zone | Maximum 24 masks settable, maximum 8 simultaneously displayable |
| Protocols | ONVIF, Profile Q, Profile S and Profile T, TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS, RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Weatherproof | IP66, IP67, IP68 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | 360° |
| Back Light Compensation | On/Off |
| Automatic White Balance | Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
