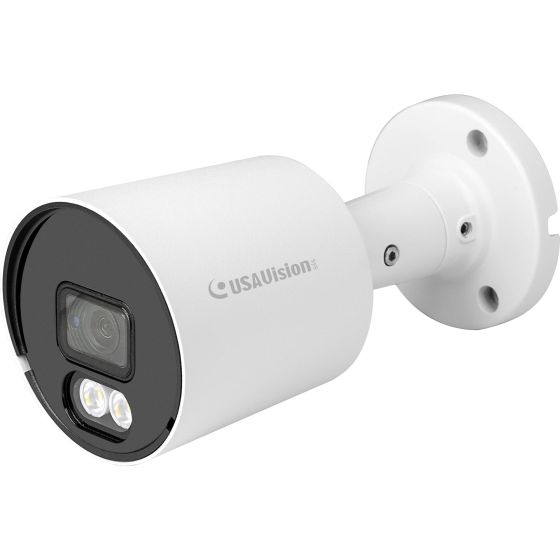

Geovision UA-CB550F3 5 Megapixel Outdoor Analog HD IR Bullet Camera with 3.6mm Lens
SKU
UA-CB550F3
Model No
UA-CB550F3
$34.66
Product Highlights
- 1/2.7" progressive scan CMOS sensor
- Full Color smart warm LED
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Ingress protection (IP66)
Speak to an expert
The Geovision UA-CB550F3 is a high-performance 5 Megapixel Outdoor Analog HD IR Bullet Camera designed for reliable surveillance both day and night. With its advanced features including automatic IR-cut filter, dual LED illumination for enhanced visibility, and robust IP66 weatherproof rating, this camera ensures superior video quality and durability. Ideal for outdoor use, it provides 24/7 security solutions with versatile video output options.
Geovision UA-CB550F3 Camera Features
- 1/2.7" Progressive Scan CMOS Sensor: Delivers clear and detailed images with excellent low-light performance, making it perfect for any surveillance environment.
- Full Color Smart Warm LED: Enhances night-time surveillance by providing additional lighting, ensuring colors are accurately captured even in low light.
- IR Distance Up to 30 m (100 ft): Allows for effective monitoring in complete darkness, providing security over large outdoor areas.
- Built-In Microphone: Captures audio along with video for comprehensive surveillance, helping to gather more context during events.
- Ingress Protection (IP66): Ensures the camera is fully protected against dust and powerful water jets, extending its usability in harsh weather conditions.
- 4 in 1 (TVI / AHD / CVI / CVBS): Offers flexibility in integration with various video systems, making it easier to deploy in existing setups.
Geovision UA-CB550F3 Detailed Camera Specifications
| Megapixels | 5 MP |
| Lens | 3.6 mm |
| IR Illumination | Up to 30 m (100 ft) |
| Warm LED Illumination | Up to 20 m (65 ft) |
| Video Output | 4-in-1 (TVI / AHD / CVI / CVBS) |
| Weather Rating | IP66 |
| Audio Input | Built-in microphone |
SKU  | UA-CB550F3 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Weather Resistant |
| Manufacturer | Geovision |
Camera Signal  | HD-AHD, HD-CVI, HD-TVI |
| Resolution | 5 Megapixel |
| Sensor Option | 1/2.7" CMOS |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/2.7" Progressive CMOS |
| IR Distance | 30m/100ft |
| Minimum Scene Illumination | Color: 0.05 Lux @ F1.2 (AGC ON), B/W: 0 Lux, IR ON: 0 Lux |
| Operating Humidity | Less than ≤ 95% RH |
| Operating Temperature | -30 ~ 55°C (‐22°F ~ 131°F) |
| Dimensions (W x H) | 151.3 x 74.1 x 74.1 mm (5.96”x 2.91” x 2.91”) |
| OSD Menu | English / Spanish / French / Japanese |
| Power Consumption | IR OFF ≤ 1W, IR ON ≤ 4.5W |
| Scanning System | Progressive CMOS |
| Video Output | TVI/AHD/CVI/CVBS |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D DNR |
| Mirror | Flip/Rotate/Mirror |
| Angle of View | Horizontal: 88.1°, Vertical: 47.5°, Diagonal: 104.1° |
| Backlight Compensation | Off / User BLC |
| Auto Gain Control | Auto |
| IR LEDs | 2 |
| Audio | Yes |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Auto Gain Control | Yes |
