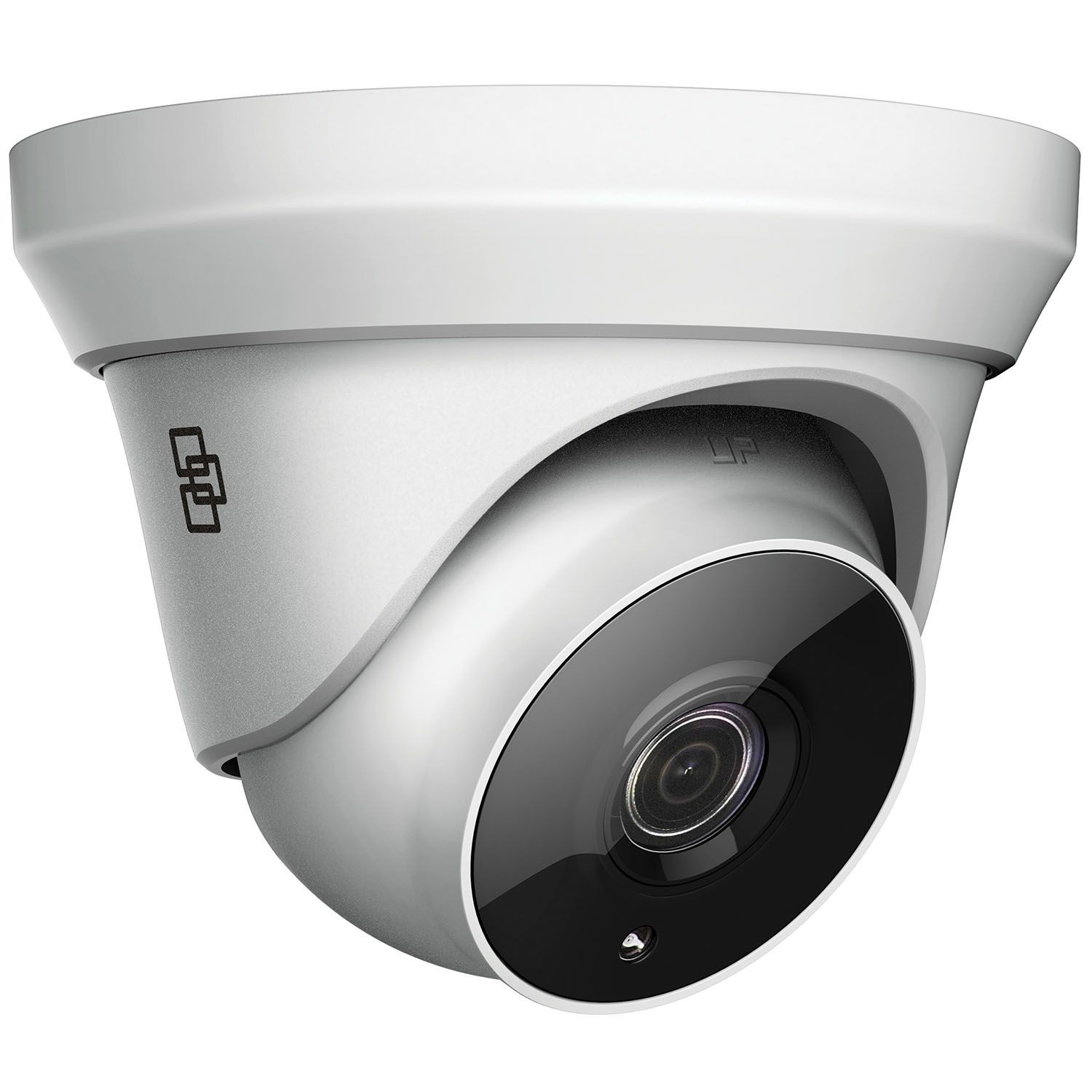

Interlogix TVT-4401 3MP TruVision HD-TVI Analog Turret Camera - 2.8mm
SKU
TVT-4401
Model No
TVT-4401
$75.29
Product Highlights
- 3MPx HD resolution
- HD-TVI or 960H output, selectable
- Fixed or motorized varifocal lens options
- HD-TVI technology for transmitting HD quality video over existing coax cable
- Wide Dynamic Range (WDR), 120 dB
Speak to an expert
The Interlogix TVT-4401 3MP TruVision HD-TVI Analog Turret Camera is a top-tier surveillance solution that combines high-definition video quality with user-friendly installation features. With its exceptional 3MP resolution, advanced IR technology, and adaptability to existing coaxial systems, this camera is perfect for both new and existing security setups, ensuring comprehensive protection and ease of use for any environment.
Interlogix TVT-4401 Camera Features
- 3MPx HD resolution: Captures clear and detailed footage, ensuring superior image quality for effective surveillance.
- HD-TVI or 960H output, selectable: Flexible output options provide compatibility with various DVR systems, maximizing usability.
- Fixed or motorized varifocal lens options: Customize your field of view to suit specific surveillance needs, offering flexibility in monitoring.
- HD-TVI technology: Transmits high-definition video over existing coax cable, saving on installation costs while enhancing video quality.
- Wide Dynamic Range (WDR), 120 dB: Ensures clear visibility in challenging lighting conditions, making it ideal for indoor and outdoor applications.
- True day/night functionality: Switches seamlessly between day and night modes for 24/7 surveillance with infrared illuminators equipped with Smart IR function.
- IP66 Environmental rating: Provides robust protection against dust and water, ensuring reliable performance in harsh conditions.
- Coax OSD control: Allows for easy configuration and adjustment of camera settings using existing coaxial cables.
- Cable protection/management: Enhances cable longevity and simplifies installation, ensuring a tidy setup.
- Multiple mounting options: Offers versatile installation possibilities for various locations and environments.
- Turret adapter mounting plate included: Facilitates quick installation and integration with TruVision mounts and accessories.
Detailed Camera Specifications - Interlogix TVT-4401
| Camera Type | 3MP TruVision HD-TVI Analog Turret |
| Resolution | 3MP (2048 x 1536) |
| Lens Options | Fixed or motorized varifocal |
| Dynamic Range | 120 dB Wide Dynamic Range (WDR) |
| Day/Night Mode | True day/night with Smart IR |
| Environmental Rating | IP66 |
| Output Format | HD-TVI or 960H selectable |
| Mounting Type | Turret adapter plus multiple options |
| IR Technology | Infrared illuminators for night surveillance |
| Coax Control | Coax OSD control feature |
SKU  | TVT-4401 |
|---|---|
| Features | Weather Resistant, Wide Dynamic Range |
| Manufacturer | Interlogix |
Camera Signal  | HD-TVI |
| Resolution | 3 Megapixel |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Wall |
| Voltage | 12vDC |
| Electronic Shutter | NTSC: 1/30 s to 1/50,000 s |
| Image Device | 1/3" CMOS |
| Image Pixels-Effective | 2052 (H) x 1536 (V) |
| IR Distance | 20m/66ft |
| Minimum Scene Illumination | 0.01 lux @ f1.2 (AGC On); 0 lux with IR |
| Operating Humidity | < 90% |
| Operating Temperature | -40°F~140°F (-40°C~60°C) |
| Dimensions (W x H) | 5 × 3.85 in. (226.7 × 97.84mm) |
| OSD Menu | English/Chinese |
| Power Consumption | 5W (Max.) |
| S/N Ratio | > 62 dB |
| Signal System | NTSC |
| Video Output | 3MPx TVI or 960H Analog |
| Weatherproof | IP66 |
| Synchronization | Internal |
| Day/Night | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
