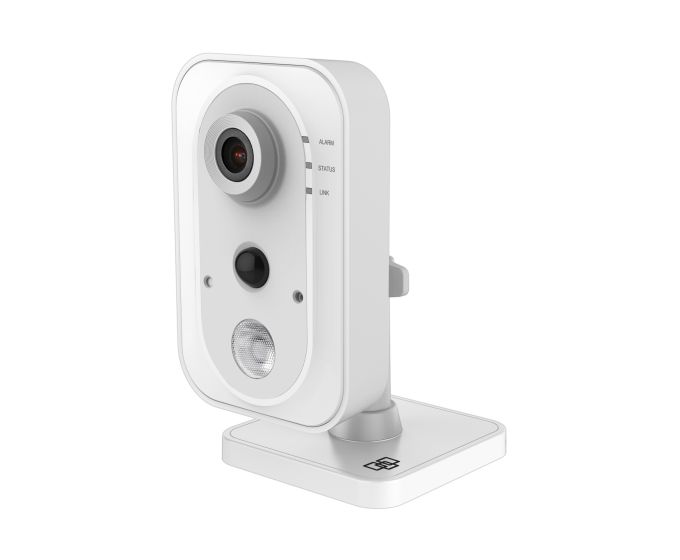

GE Security Interlogix TVQ-8101 1080p Indoor IP Wi-Fi Desktop IR Camera, 2mm Lens

SKU: TVQ-8101

Model #: TVQ-8101

  • GE Security Interlogix TVQ-8101 1080p Indoor IP Wi-Fi  Desktop IR Camera, 2mm Lens TVQ-8101 by Interlogix GE Security Interlogix TVQ-8101 1080p Indoor IP Wi-Fi  Desktop IR Camera, 2mm Lens TVQ-8101 by Interlogix

SKU: TVQ-8101

Model #: TVQ-8101

Availability: Usually ships within 4-5 business days

$103.59

Availability: In stock

Low Price Guarantee

  • Express Checkout:
  • Checkout with PayPal

Free Ground Shipping Free Ground Shipping
Free Lifetime Tech Support Free Lifetime Tech Support
Availability: Usually ships within 4-5 business days

Availability: Usually ships within 4-5 business days

  • Express Checkout:
  • Checkout with PayPal

Product Details

The TVQ-8101 TruVision IP Wi-Fi Desktop IR camera by Interlogix brings high definition 1080p images to the commercial security segment at a low cost. It is designed for use with TruVision Navigator and TruVision recorders. The Wi-Fi spec is based on the Wi-Fi Standards of IEEE 802.11 b/g/n and operates in the 2.4 GHz range. Transmission rates of up to 150Mbps are supported, and wireless security is achieved via 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, and WPS wireless encryption standards. The Wi-Fi Desktop IR camera also adheres to ONVIF Profile S open communications standards as well as support CGI command set for simple integration into standard IP systems.

Features

    Video

    • 1080p resolution
    • H.264 compression technology with dual-streaming capability accommodates multiple settings
    • Compatible with TruVision Navigator and TruVision recorders

    Video Enhancement

    • DWDR and/or real-time video streaming up to 1080p resolution to capture fine details
    • True day/night functionality and infrared illuminator for capturing images in various lighting scenarios
    • Up to 33 ft. (10m) IR range – with on/off settings

    Video Alarms

    • Motion Detection, Tamper Proof and Privacy Masking
    • Advanced cross-line and intrusion detection Recorded Clips
    • Recorded clips stored onboard using a micro SD/SDXC card (up to 128GB)

    Wireless (Wi-Fi)

    • Supports IEEE 802.11b/g/n Wi-Fi standards
    • Frequency range 2.4GHz
    • Encryption security support for 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK and WPS wireless encryption standards

    Environment and Installation

    • FCC, CE and UL
    • Magnetic base for flexible installation

Product Specs

SKU  TVQ-8101
Manufacturer  Interlogix
Features  Auto Gain Control, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range
Camera Signal    Network IP
Connection Type  Wireless
Infrared Distance   0~60 Feet
Resolution   2 Megapixel
Lens Type   Fixed
Lens Size   2mm
Mount Type  Ceiling, Wall
Compression Method   H.264, M-JPEG
Durability   Indoor
Voltage  12vDC, PoE
Dimensions (W x H)  4.25 x 2.75 x 1.5 in. (108 x 70 x 38mm)
Electronic Shutter   60 Hz: 1/3s ~ 1/100,000s, 50 Hz: 1/3s ~ 1/100,000
Image Device   1/2.8"
IR Wavelength  850nm
Minimum Scene Illumination  0.01 lux @ (f1.2, AGC On), 0 lux @ (IR On)
Operating Temperature   -4°~140°F (-20°~60°C)
Power Consumption  4.5W (Max.)
Protocols  TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, HTTPS, FTP, Qos, IPv6. Interoperability ONVIF (Profile G/S), PSIA (latest version), CGI, ISAPI
S/N Ratio  50 dB (AGC Off)
Signal System   NTSC/PAL
Digital Noise Reduction   3D-NR
IR Distance  10m/33ft
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Digital Noise Reduction   Yes
Motion Detection Tracking   Yes
On Screen Display Menu   Yes
Privacy Masking   Yes
Wide Dynamic Range   Yes
ONVIF  Yes
