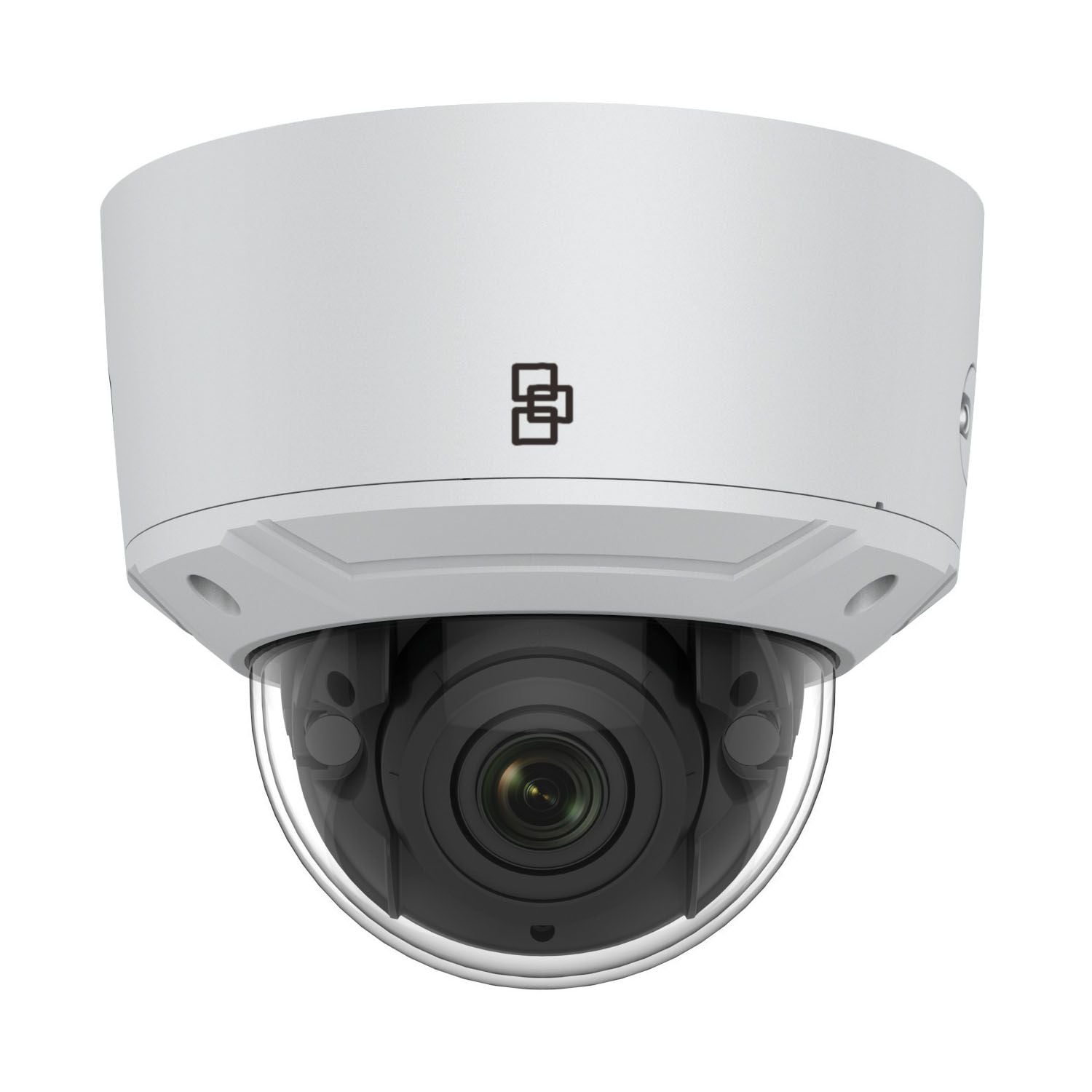

GE Security Interlogix TVD-5604 2 Megapixel Outdoor IR Network Dome Camera, 2.8-12mm Lens

SKU
TVD-5604
GE Security Interlogix TVD-5604 2 Megapixel Outdoor IR Network Dome Camera, 2.8-12mm Lens TVD-5604 by Interlogix
GE Security Interlogix TVD-5604 2 Megapixel Outdoor IR Network Dome Camera, 2.8-12mm Lens TVD-5604 by Interlogix
Model No
TVD-5604
$381.39
Qty:
Product Highlights
    • 2MPx resolution
    • H.265/H.264/MJPEG (on sub-stream) compression technology with triple-streaming capability
    • 2.8-12mm motorized varifocal lens
    • ONVIF Profile S and G open communications standards compatibility
    • True D/N functionality and infrared illuminators

TruVision IP Megapixel Dome IR Camera by Interlogix bring high definition images to the mass video surveillance market. With 2MPx resolution, this camera provide flexibility for a wide variety of applications.

The IP Megapixel Dome IR Camera adhere to ONVIF Profile S and G open communications standards as well as CGI command set support for simple integration into standard IP systems. By utilizing an integrated browser and micro SD memory card storage capability, this camera simplify remote, live monitoring/playback of edge recorded audio and video. Memory card recording also helps protect data in the event of network disruptions.

Cross line, intrusion, face detection, and privacy masking provide additional flexibility when monitoring key areas of a facility. These features alert the user when key exceptions are triggered, reducing the amount of time and effort required when responding to alarms. Network security features include network disconnect, IP address conflict and illegal login detection. These features in addition to integrated motion and tamper detection provide a secure video solution.

Features

Video

  • 2MPx resolution
  • H.265/H.264/MJPEG (on sub-stream) compression technology with triple-streaming capability
  • 2.8-12mm motorized varifocal lens
  • ONVIF Profile S and G open communications standards compatibility

Video Enhancements

  • WDR 120 dB
  • True D/N functionality and infrared illuminators
  • 98 ft. (30m) IR range

Alarm Intelligence

  • Integrated motion and tamper detection
  • Network disconnected and IP address conflict detection
  • Illegal login detection

Audio and Edge Recording

  • Edge recording on up to 128GB micro SD/SDHC/SDXC card for video playback (card not included)

Installation and Environment

  • IP67 Environmental rating
  • IK10 Impact rating on select models
  • TruVision Device Manager software to access newly added system devices
SKU  TVD-5604
Features  Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Interlogix
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   61~100 Feet
Resolution   2 Megapixel
Lens Type   Fixed
Lens Size   2.8-12mm
Mount Type  Ceiling, Wall
Compression Method   H.264, M-JPEG, H.265
Durability   Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  6.0 x 5.2 in. (153.4 x 133.1mm)
Electronic Shutter   1/3 s to 1/100,000 s
Image Device   1/2.8" Progressive Scan CMOS
Minimum Scene Illumination  Color: 0.01 lux @ (f1.2, AGC On), 0.018 lux @ (f1.6, AGC On), 0 lux with IR
Operating Humidity   95% or less (non-condensing)
Operating Temperature   -22°F to +140°F (-30°C to +60°C)
Power Consumption  12VDC: max. 10W, PoE: max. 12W
Protocols  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
S/N Ratio  50 dB (AGC Off)
Weatherproof   IP67
Digital Noise Reduction   3D DNR
Angle of View   Horizontal FOV: 110° to 31°, Vertical FOV: 58° to 18°, Diagonal FOV: 136° to 36°
IR Distance  30m/98ft
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Digital Noise Reduction   Yes
Motion Detection Tracking   Yes
On Screen Display Menu   Yes
Privacy Masking   Yes
Wide Dynamic Range   Yes
ONVIF  Yes
There are no related videos.
Downloads & Manuals
SKU
TVD-5604
Availability: In stock
