GE Security Interlogix TVD-5405 TruVision 2 Megapixel Low Light IP Outdoor Dome Camera

SKU
TVD-5405
Model No
TVD-5405
$702.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2MPx resolution options
  • H.265 and/or H.264 compression with triple-streaming capability
  • Extended zoom and IR range
  • Motorized varifocal lens technology that provides remote autofocus
  • PSIA and ONVIF Profile G and S open communications standards compatibility

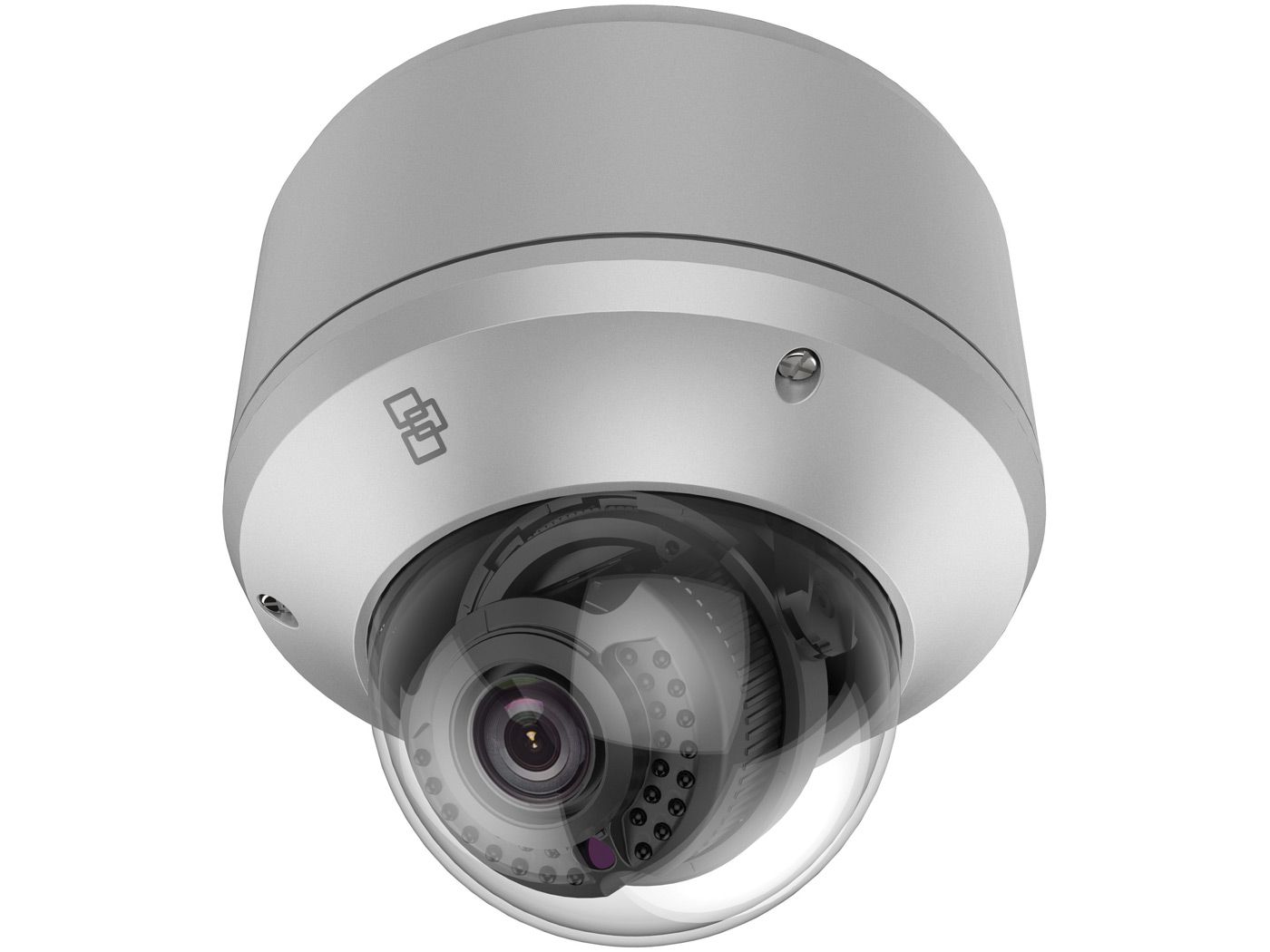

The GE Security Interlogix TVD-5405 TruVision is a cutting-edge 2 Megapixel Low Light IP Outdoor Dome Camera designed for high-definition video surveillance in various environments. With advanced H.265 compression technology, this camera offers exceptional video quality while managing bandwidth efficiently. Key features include remote motorized varifocal lens adjustment, robust motion detection capabilities, and enhanced performance in low-light conditions, making it a reliable choice for comprehensive security solutions.

GE Security Interlogix TVD-5405 Camera Features

  • Resolution: 2MPx resolution provides crystal clear images that excel in detail.
  • Video Compression: Supports H.265/H.264 with triple-streaming capability for flexible bandwidth management.
  • Zoom and Range: Extended zoom and IR range enhance visibility in various settings.
  • Motorized Lens: Remote autofocus with motorized varifocal lens technology ensures convenience and accuracy.
  • Compatibility: PSIA and ONVIF Profile G and S standards allow for seamless integration with existing systems.
  • True Day/Night Functionality: Infrared illuminators ensure clear imaging during low-light conditions.
  • WDR Performance: Up to 120 dB of Wide Dynamic Range optimizes performance in contrasting lighting.
  • ROI and Image Features: Features such as ROI, Hallway View, and Electronic Image Stabilization enhance image focus and stability.
  • Integrated Detection: Comprehensive motion detection capabilities ensure proactive security.
  • Alarm Inputs/Outputs: Easy event notification and management through alarm capabilities.
  • Edge Recording: Supports micro SD/SDXC cards up to 128GB for reliable video storage (Card not included).
  • Durable Housing: Vandal-resistant design and polycarbonate bubbles ensure longevity.
  • Analog Output: Features an Analog BNC video out connection for versatility.
  • Device Management: TruVision Device Manager offers fast access to system devices.
  • Safety Approval: UL approved for quality assurance.

Detailed Camera Specifications for GE Security Interlogix TVD-5405

Resolution2 Megapixel
Video CompressionH.265/H.264
Streaming CapabilityTriple-streaming
Zoom TechnologyMotorized varifocal lens
Wide Dynamic RangeUp to 120 dB
Detection FeaturesFace detection, intrusion detection, defocus detection, etc.
Edge RecordingUp to 128GB micro SD/SDXC
HousingVandal-resistant with polycarbonate bubble
Device CompatibilityPSIA and ONVIF standards
ApprovalUL Approved
SKU  TVD-5405
Features  Weather Resistant, Wide Dynamic Range
Manufacturer  Interlogix
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    8-32mm
Mount Type  Wall
Compression Method    H.265
Durability    Weather Resistant
Voltage  PoE
Dimensions (W x H)  Ø6.29 x 4.76 in. (Ø159.8 x 146mm)
Electronic Shutter    50Hz: 1/3s~1/100,000s; 60Hz: 1/3s~1/100,000s
Image Device    1/1.8 Progressive Scan CMOS
Minimum Scene Illumination  Color: 0.002 lux @ f1.2 (AGC On), 0 lux IR On
Operating Temperature    -40°F~140°F (-40°C~60°C)
Power Consumption  17W
Protocols  TCP/IP, HTTP, DHCP, DNS, DDNS, ezDDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos, IPv6, ONVIF, PSIA, CGI
S/N Ratio  52 dB (AGC Off)
Signal System    NTSC, PAL
Video Output    Composite (NTSC/PAL)
Weatherproof    IP66
Digital Noise Reduction    3DNR
IR Distance  50m/164ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
