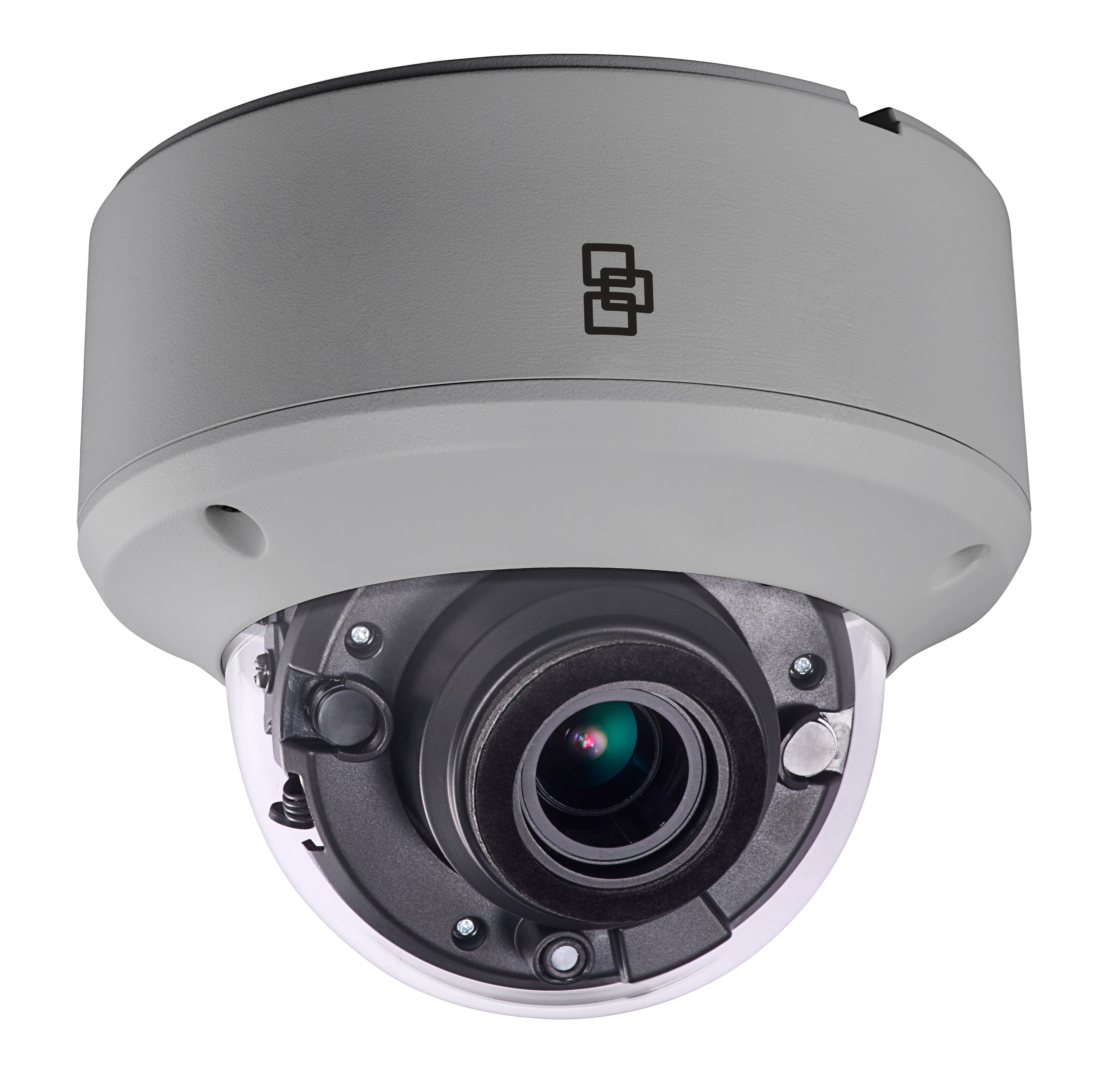

Interlogix TVD-2406 HD-TVI Dome Camera 5MPX 2.8-12mm Motorized Lens
SKU
TVD-2406
Model No
TVD-2406
$160.09
Product Highlights
- 5MPx resolution
- HD-TVI output
- HD-TVI technology for transmitting HD quality video over existing coax cable
- Provides Digital Wide Dynamic Range (DWDR)
- IK10 impact rating
Speak to an expert
The Interlogix TVD-2406 HD-TVI Dome Camera, featuring 5MPx resolution and a versatile 2.8-12mm motorized lens, is designed for effective and budget-conscious surveillance. Its advanced HD-TVI technology allows for high-definition video transmission using existing coaxial cables, making it perfect for both new installations and upgrades. Built to withstand outdoor conditions with IP67 and IK10 ratings, this camera offers reliable performance without compromising on image quality.
Features
Interlogix TVD-2406 Camera Features
- 5MPx Resolution: Provides exceptional clarity and detail, enhancing the overall effectiveness of security surveillance.
- HD-TVI Output: Ensures high-quality video transmission over existing coax cable, reducing installation costs.
- Motorized Lens: Offers flexibility in lens adjustments for optimal coverage and focus without physical handling.
- Digital Wide Dynamic Range (DWDR): Enhances image quality by balancing lighting in scenes with both bright and dark areas.
- True Day/Night Functionality: Allows for continuous monitoring with infrared illuminators, capturing clear images in low-light conditions.
- IP67 Environmental Rating: Ensures durability and performance in harsh outdoor environments.
- IK10 Impact Resistance: Protects the camera against vandalism and physical impact.
- Coax OSD Control: Simplifies camera configuration and management over coaxial connections.
- Cable Protection/Management: Helps maintain organized installations and prevents cable damage.
- Multiple Mounting Options: Provides flexibility for installation in different settings and locations.
Interlogix TVD-2406 Detailed Specifications
| Feature | Details |
|---|---|
| Resolution | 5MPx |
| Lens Type | 2.8-12mm Motorized Lens |
| Output Type | HD-TVI |
| Environmental Rating | IP67 |
| Impact Rating | IK10 |
| Video Enhancements | DWDR, True Day/Night, Smart IR |
| Compatibility | TruVision HD-TVI DVRs supporting 3MPx or higher |
| Installation | Coax OSD control and multiple mounting options |
SKU  | TVD-2406 |
|---|---|
| Features | Auto Gain Control, Day/Night, Infrared, Mirror, On Screen Display Menu, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Interlogix |
Camera Signal  | HD-TVI |
| Resolution | 5 Megapixel |
| Sensor Option | 5 MP CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 101 Feet + |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | PAL: 1/25 s to 1/50,000 s |
| Image Device | 5 MPx Progressive Scan CMOS |
| Image Pixels-Effective | 2592 (H) × 1944 (V) |
| IR Distance | 40m/132ft |
| Minimum Scene Illumination | 0.01Lux @ (f1.2, AGC On), 0 Lux with IR |
| Operating Humidity | <90% (non-condensing) |
| Operating Temperature | -40°F~140°F (-40°~60°) |
| Dimensions (W x H) | 5.72 × 4.89 in. (145.2 × 124.1mm) |
| OSD Menu | TruVision Coax OSD control on TVI or OSD menu button |
| Power Consumption | 12VDC: 7W (Max.); 24VAC: 7W (Max.) |
| S/N Ratio | > 62 dB |
| Signal System | PAL |
| Video Output | 1 - 75W BNC |
| Weatherproof | IP67 |
| Synchronization | Internal |
| Day/Night | Yes |
| Intelligent Infrared | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
