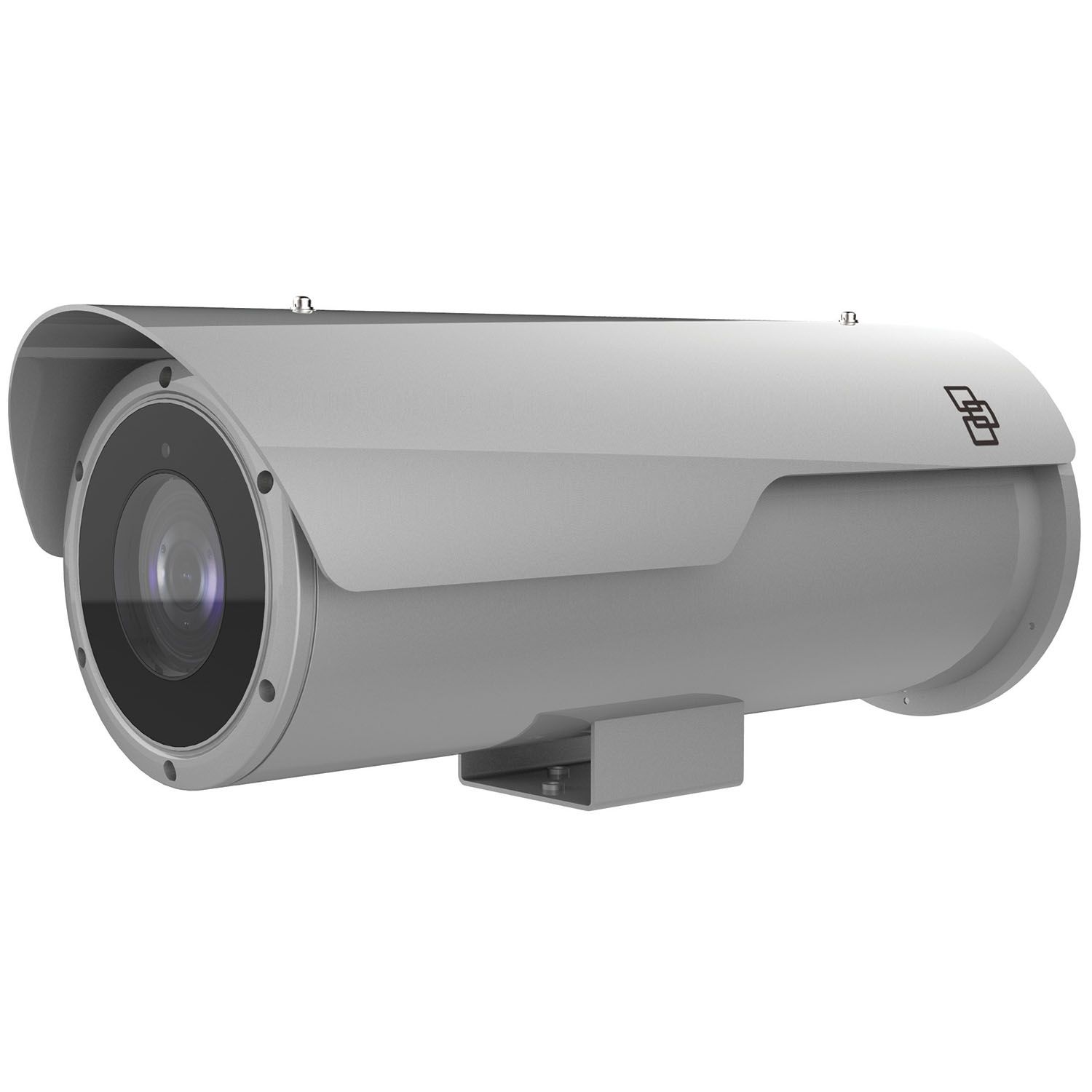

GE Security Interlogix TVB-5802 2 Megapixel Network IR Outdoor Box Camera, 11-40mm Lens
SKU
TVB-5802
Model No
TVB-5802
$1,708.20
Product Highlights
- 2MPx resolution
- H.264 / H.265 compression with triple streaming
- 11-40mm varifocal lens
- True day/night functionality
- ROI (Region of Interest), hallway view, mirror, defog, EIS (Electronic Image Stabilization)
Speak to an expert
The GE Security Interlogix TVB-5802 2 Megapixel Network IR Outdoor Box Camera combines high-performance imaging with robust design, making it ideal for outdoor surveillance in harsh environments. With a powerful 2MP resolution, advanced features such as WDR and EIS, and a durable stainless steel housing, this camera ensures reliable performance and clarity in any application.
GE Security Interlogix TVB-5802 Camera Features
- 2MPx resolution: Provides clear and detailed images, ideal for security monitoring.
- H.264 / H.265 compression: Efficient video streaming with triple-streaming capabilities, optimizing bandwidth usage.
- 11-40mm varifocal lens: Offers flexible focal length for versatile monitoring in various scenarios.
- True day/night functionality: Ensures high-quality images in both bright and low-light conditions.
- Advanced image enhancements: Features like ROI, hallway view, mirror, defog, and EIS improve image quality and monitoring capabilities.
- Integrated motion detection: Alerts users to movement, enhancing security response times.
- Comprehensive detection features: Includes face detection, audio exception detection, and various other detection options for thorough monitoring.
- Alarm inputs/outputs: Simplifies event notifications and control management, ensuring timely responses to incidents.
- Tubular stainless steel design: Provides added strength and protection against environmental damage.
- 100m IR range: Facilitates effective night vision capabilities, ensuring surveillance in complete darkness.
- Metal sun shield: Protects the camera lens from harsh sunlight and glare.
- Robust stainless steel housing: Ensures durability and resistance to corrosion in extreme conditions.
- Built-in fan and heater: Maintains optimal camera performance in varying temperatures.
- IP67 rated: Guarantees protection against dust and water ingress, making it suitable for outdoor use.
- Stainless steel junction box and wall mount available: Optional accessories ensure complete installation solutions.
Detailed Specifications for GE Security Interlogix TVB-5802
| Model | TVB-5802 |
| Resolution | 2 Megapixel |
| Lens Type | 11-40mm Varifocal Lens |
| Infrared Range | 100m |
| Camera Housing | Stainless Steel |
| IR Illuminators | 328 ft. (100m) |
| Image Enhancements | True D/N, WDR, Defog, EIS |
| Environmental Rating | IP67 |
| Power Source | 12V DC |
| Additional Features | Integrated motion detection, privacy masking, and alarm inputs/outputs |
SKU  | TVB-5802 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Heater & Fan, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Interlogix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 11-40mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Dimensions (W x H) | 18.3 x 7.5 x 7.1 in. (465 × 189.7 x 180mm) |
| Electronic Shutter | 50Hz: 1/3 s to 1/100,000 s; 60Hz: 1/3 s to 1/100,000 s |
| Image Device | 1/1.8" Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.002 lux @ (f1.2, AGC On); B/W: 0.0002 lux at (f1.2, AGC On) |
| Operating Temperature | -40°F to 140°F (-40° to 60°C) |
| Power Consumption | 100W |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, ezDDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos, IPv6 |
| S/N Ratio | 52 dB (AGC Off) |
| Signal System | NTSC/PAL |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3DNR |
| IR Distance | 100m/328ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
