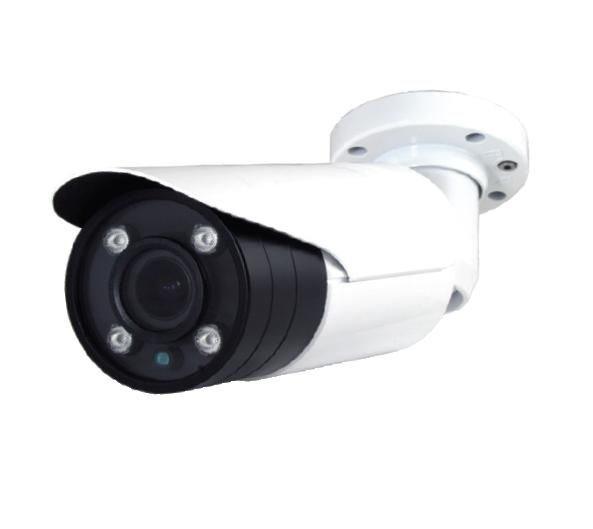

Cantek TT802VRHM HD Hybrid TVI / 960H IR Bullet Camera
SKU
TT802VRHM
Model No
TT802VRHM
$105.60
Product Highlights
- 1/2.8” SONY Exmor CMOS 2.4MP
- Vari-focal 2.8 - 12 mm Motorized Zoom Auto-Focus Lens
- True WDR, 8x Digital Zoom
- Zoom & OSD Function by COC(Control Over Coax)
- 1080p Resolution
The TT802VRHM from Cantek is a HD Hybrid TVI / 960H IR Bullet Camera.
CCTV Resolution Comparison
Features
- 1/2.8” SONY Exmor CMOS 2.4MP
- Vari-focal 2.8 - 12 mm Motorized Zoom Auto-Focus Lens
- True WDR, 8x Digital Zoom
- Zoom & OSD Function by COC(Control Over Coax)
- 1080p Resolution
- 0.1 Lux at F1.2 (Color), 0.0001 Lux (B/W)
- 3 DNR (Dynamic Noise Reduction)
- Defog, Motion Detection, Privacy Mask
- 4pcs IR Array LEDS (Distance up to 170ft)
- Single Voltage (DC12V)
- Auto-Detection RPS
- Auto Gain Control (AGC)
- Smart IR – 4pcs IR Array LEDS
- IP67 Complete Weatherproof
SKU  |
TT802VRHM |
|---|---|
| Features |
Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Wide Dynamic Range |
| Manufacturer |
Cantek |
Camera Signal  |
HD-TVI |
| Resolution |
1080p |
| Sensor Option |
1/2.8" CMOS |
| Lens Type |
Varifocal |
| Lens Size |
2.8-12mm |
| Infrared Distance |
101 Feet + |
| Durability |
Weather Resistant |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC, 24vAC |
| Electronic Shutter |
NTSC: AUTO (1/30 sec ~ 1/60,000 sec) |
| Image Device |
1/2.8” SONY EXMOR CMOS |
| Image Pixels-Effective | 1920(H) x 1080(V) 2.4Mega Pixels |
| IR Distance |
51.81m/170ft |
| Minimum Scene Illumination |
0.1 Lux at F1.2 (color) / 0.001 Lux (B/W) |
| Operating Humidity |
95% RH |
| Operating Temperature |
-10°C ~ 50°C (14°F ~ 131°F) |
| Power Consumption |
650mA (12VDC), 280mA (24VAC) |
| S/N Ratio |
More than 50 dB (AGC Off) |
| Scanning System |
Progressive Scan |
| Video Output |
TVI (BNC) + 960H (BNC) |
| Weatherproof |
IP67 |
| Backlight Compensation |
WDR |
| Automatic White Balance |
ATW |
| Auto Gain Control |
AUTO |
| IR LEDs |
4 |
| Back Light Compensation |
Yes |
| Day/Night |
Yes |
| Digital Noise Reduction |
Yes |
| Wide Dynamic Range |
Yes |
| Auto Gain Control |
Yes |
| Digital Zoom | Yes |
