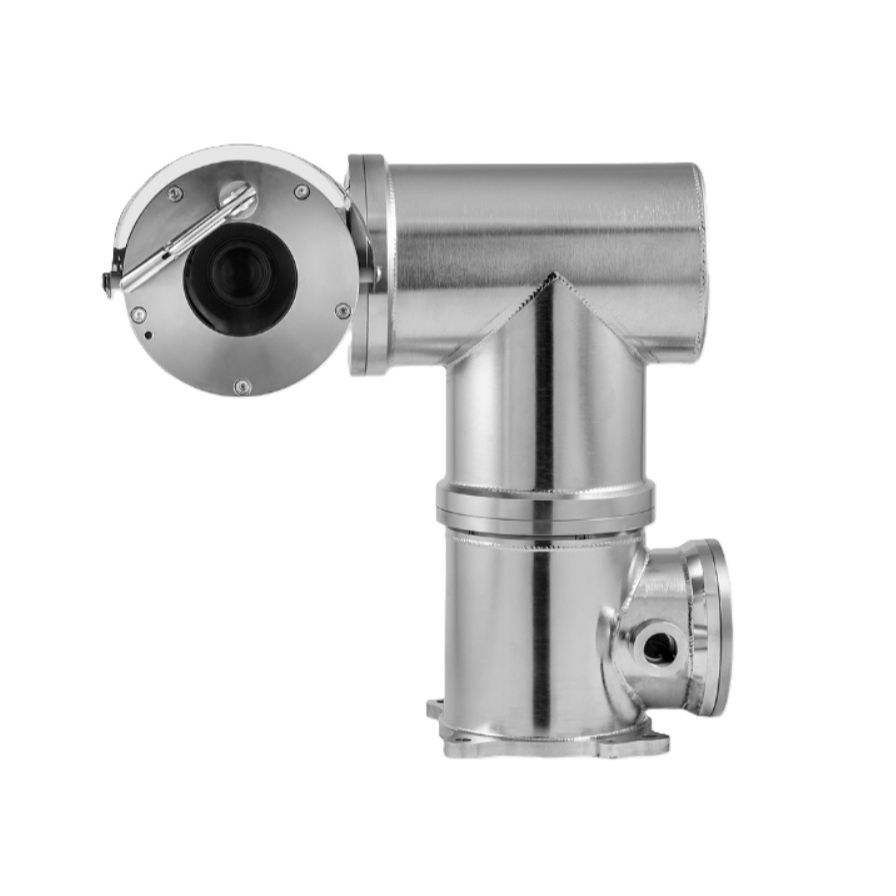

Hanwha Vision TNU-X6320A2F2WT1-M 2 Megapixel Network Outdoor PTZ Camera with 32X Lens
SKU
TNU-X6320A2F2WT1-M
Model No
TNU-X6320A2F2WT1-M
$22,467.25
Product Highlights
- 2MP (1920 x 1080) resolution
- 4.44-142.6mm (32x) optical zoom, 16x digital zoom
- H.265, H.264, MJPEG triple codec, WiseStream II
- DIS with built-in Gyro sensor
- Day & Night (ICR), WDR (120dB)
Speak to an expert
The Hanwha Vision TNU-X6320A2F2WT1-M is a cutting-edge 2 Megapixel Network Outdoor PTZ Camera designed for high performance in hazardous environments. With its robust features such as a 32x optical zoom and advanced video analytics, it is perfect for onshore, offshore, marine, and heavy industrial applications. Its durable construction ensures reliability, while its dual codec support delivers exceptional video quality.
Hanwha Vision TNU-X6320A2F2WT1-M + Camera Features
- 2MP (1920 x 1080) resolution: Provides clear and detailed images for effective surveillance.
- 4.44-142.6mm (32x) optical zoom, 16x digital zoom: Allows for detailed observation from a distance, enhancing situational awareness.
- H.265, H.264, MJPEG triple codec, WiseStream II: Offers flexible video compression options to optimize bandwidth and storage.
- DIS with built-in Gyro sensor: Reduces video blurriness, ensuring stable and clear footage even in challenging conditions.
- Day & Night (ICR), WDR (120dB): Delivers excellent performance in varying light conditions, ensuring clear images day or night.
- Video Analytics, dual SDXC memory slots: Enhances security monitoring capabilities while providing ample storage for recorded footage.
- cLCus C1/D1, cLC CSA certified: Meets stringent safety standards for use in hazardous locations.
- Electro-polished 316L stainless steel on all welded assemblies: Ensures corrosion resistance and durability in harsh environments.
- Camera station window in toughened glass: Provides protection against impacts while allowing clear visibility.
- Integrated Wiper: Keeps the lens clear from rain or debris, ensuring constant visibility.
- 24VAC Supply voltage: Compatible with a variety of power systems for easy installation.
- -40°C ~ +60°C (-40°F ~ +140°F) Operating temperature: Designed to operate in extreme temperatures, making it versatile for various climates.
- IP66/IP67 rated: Offers protection against dust and water, ensuring reliable performance in outdoor environments.
Hanwha Vision TNU-X6320A2F2WT1-M Detailed Camera Specifications
| Camera Resolution | 2 Megapixel (1920 x 1080) |
| Optical Zoom | 32x (4.44-142.6mm) |
| Digital Zoom | 16x |
| Video Compression | H.265, H.264, MJPEG |
| Wide Dynamic Range | 120dB |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Protection Rating | IP66/IP67 |
| Material | Electro-polished 316L stainless steel |
| Power Supply | 24VAC |
| Video Analytics | Yes |
| Memory Slots | Dual SDXC |
SKU  | TNU-X6320A2F2WT1-M |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 32X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 110vAC |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec) |
| Image Device | 1/2.8" 2.4 MP CMOS |
| Image Pixels Total | 1981(H) x 1288(V), 2.55 MP |
| Image Pixels-Effective | 1944(H) x 1212(V), 2.35 MP |
| Minimum Scene Illumination | Color : 0.05Lux (1/30sec, F1.6, 50IRE), B/W : 0.005Lux (1/30sec, F1.6, 50IRE) |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Power Consumption | Up to 80W Maximum |
| Privacy Zone | On / Off (24 Zones of rectangle zone) - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
| Protocols | ONVIF Pro le S, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS,DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| S/N Ratio | 50dB |
| Scanning Horizontal | Progressive scan |
| Weatherproof | IP66/IP67 |
| Digital Noise Reduction | SSNR5 (2D+3D noise filter) (On / Off) |
| Mirror | On / Of |
| Angle of View | H : 64.66Ëš(Wide) ~ 2.29Ëš(Tele) / V : 38.08Ëš(Wide) ~ 1.30Ëš(Tele) |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | Off / WDR / BLC / HLC |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
