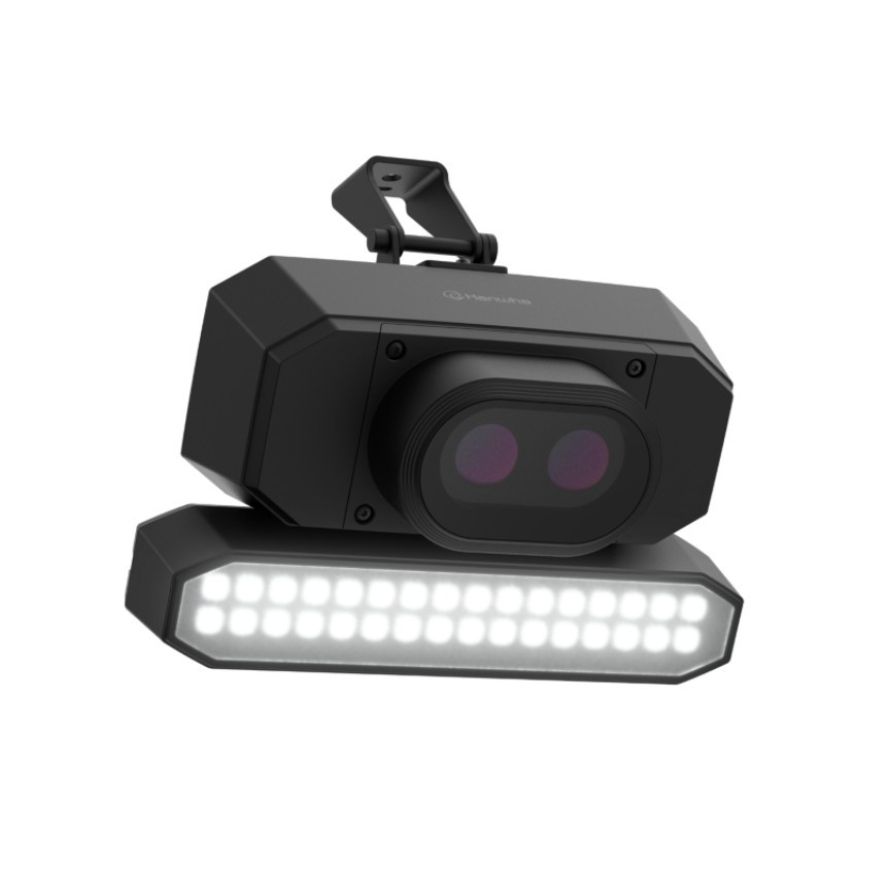

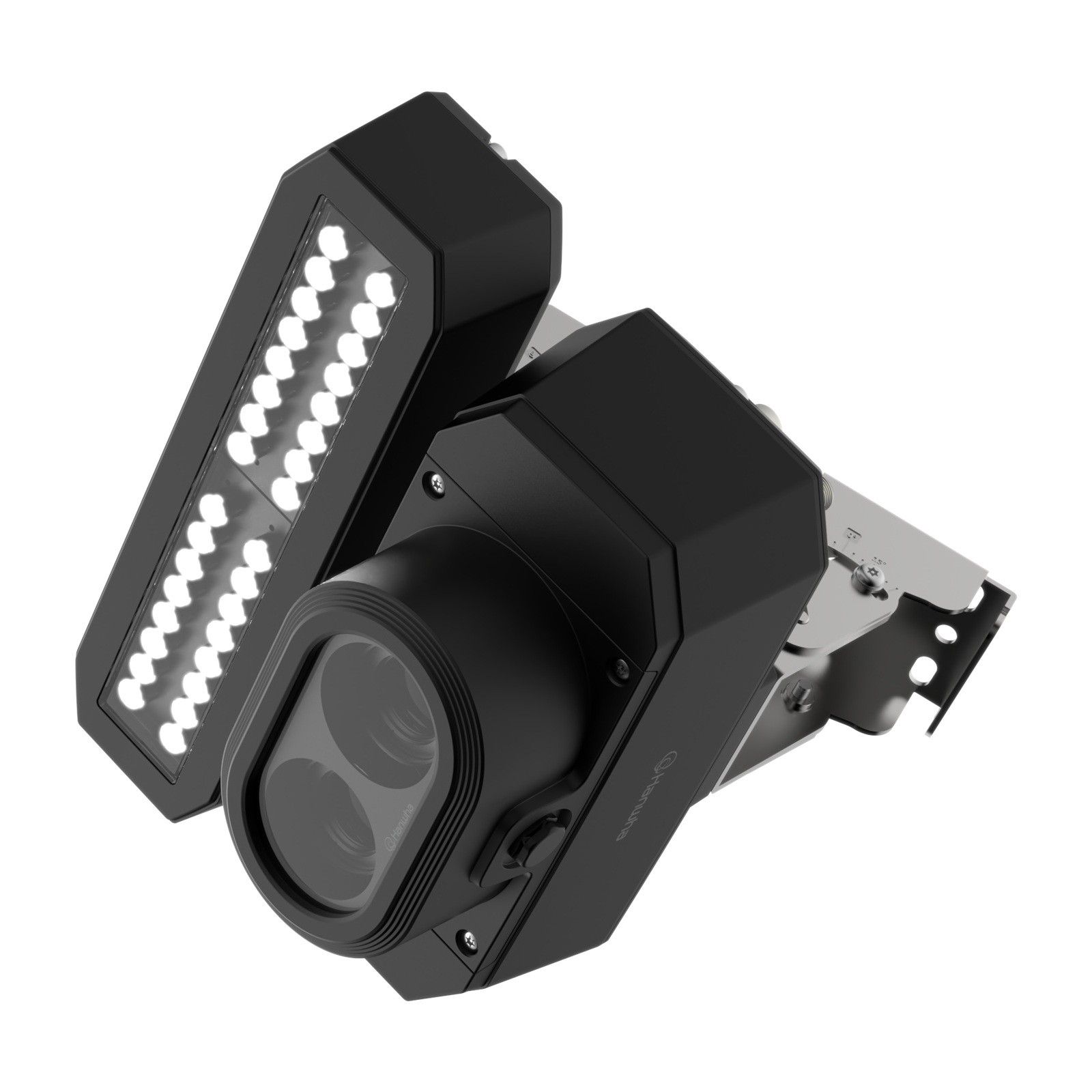

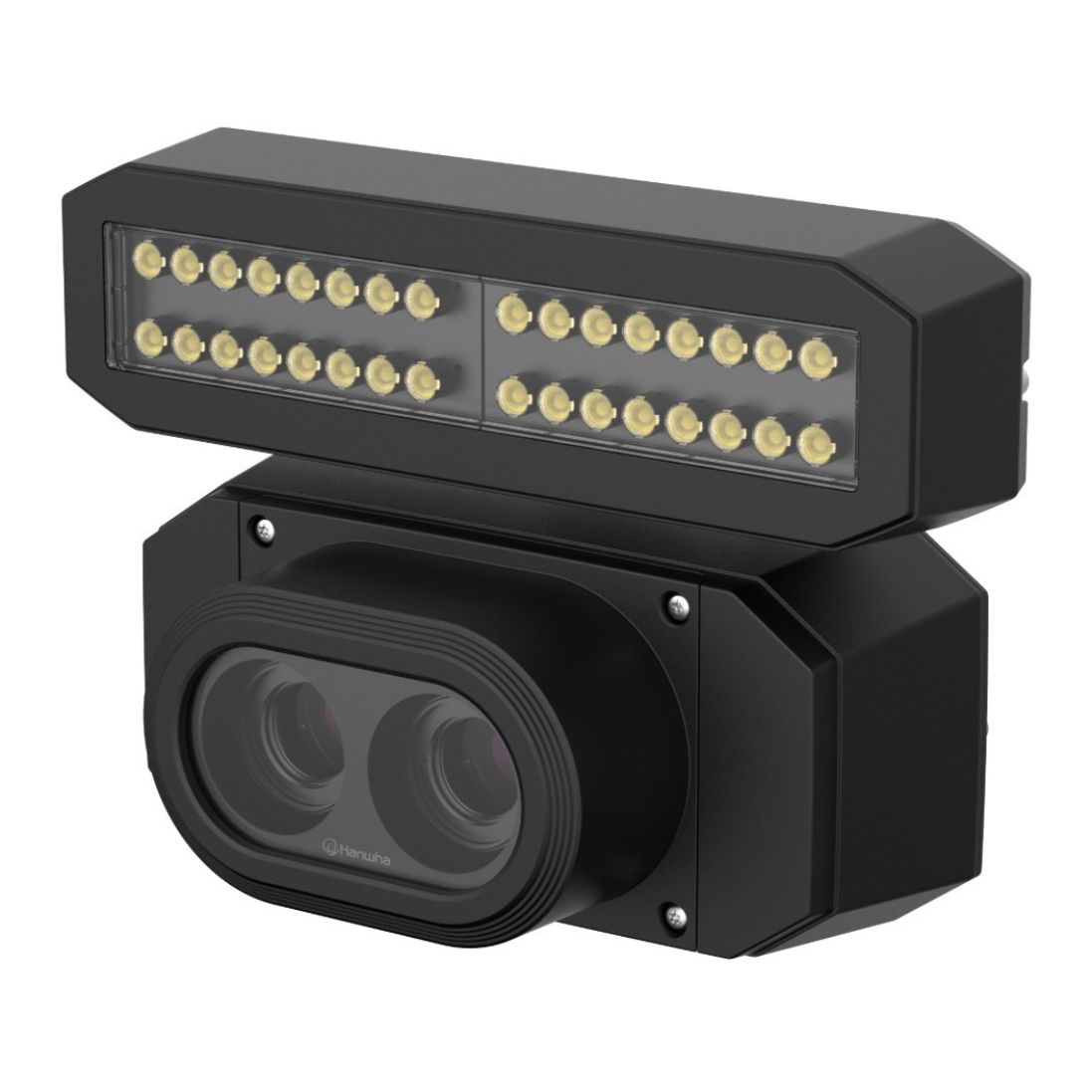

Hanwha Vision TNS-9050IBC-KEX 4096 X 2160 Network IP Barcode Reader Camera with 25mm Lens
SKU
TNS-9050IBC-KEX
Model No
TNS-9050IBC-KEX
$7,030.00
Product Highlights
- Wisenet T network BCR (Barcode Reader Camera) for Barcode Reading and Video Monitoring
- Mono: 4K, Color: 4K. Max 20fps @ 4K MONO/COLOR each. 25mm machine vision lens
- Removable and replaceable LED module (32 LEDs module is default)
- Track barcodes on high speed conveyor belt moving at 2m/s (6.5ft/s)
- Preinstalled WiseBCR App support Barcode recognition
Speak to an expert
4096 X 2160 Network IP Barcode Reader Camera with 25mm Lens
- The world's first dual-sensor BCR camera combining barcode recognition, video capture, parcel tracking and logistics management all in a single AI device.
Camera Functions
Auto Gain Control
Automatic White Balance
3D DNR
Mirror
ONVIF
Vandal Resistant
Weather Resistant
Camera Features
| Wisenet T network BCR (Barcode Reader Camera) for Barcode Reading and Video Monitoring | Currently 1D/2D Bar Code can be recognized (Code128 / Codabar / Interleaved 2 of 5) |
| Mono: 4K, Color: 4K. Max 20fps @ 4K MONO/COLOR each. 25mm machine vision lens | M12 8pin Ethernet connect, Humidity control with AIR vent |
| Removable and replaceable LED module (32 LEDs module is default) | EN 60068-2-6 (vibration resistance) , EN 60068-2-27 (shock resistance) |
| Track barcodes on high speed conveyor belt moving at 2m/s (6.5ft/s) | Operating temperature -40°C~+55°C |
| Preinstalled WiseBCR App support Barcode recognition | IP67, IK10, 24VDC |
Additional Hanwha Vision Products
SKU  | TNS-9050IBC-KEX |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Noise Reduction, Mirror, ONVIF, Vandal Resistant, Weather Resistant |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 9 Megapixel |
| Lens Type | Fixed |
| Lens Size | 25mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC |
| Automatic Gain Control (AGC) | Manual, 0~48dB |
| Electronic Shutter | 1/10,000~1/30s (100us ~ 33.33ms) |
| Image Device | Global Shutter Mono 1" CMOS , Global Shutter Color 1" CMOS |
| Operating Humidity | 0~95% RH |
| Operating Temperature | -40°C~+55°C(-40°F ~ +131°F) |
| Power Consumption | Max 28.6W, Typical 13.7W Max: LED On , Typical: LED Off |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast), MQTT |
| Weatherproof | IP66, IK10 |
| Digital Noise Reduction | SSNRⅤ |
| Angle of View | Mono: H30.4° / V16.6° / D34.2° , Color: H30.4° / V16.6° / D34.2° |
| Automatic White Balance | AWC / Manual |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| ONVIF | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
TNS-9050IBC-KEX-Specsheet TNS-9050IBC-KEX-Quick-Start-Guide TNS-9050IBC-KEX-User-Manual
