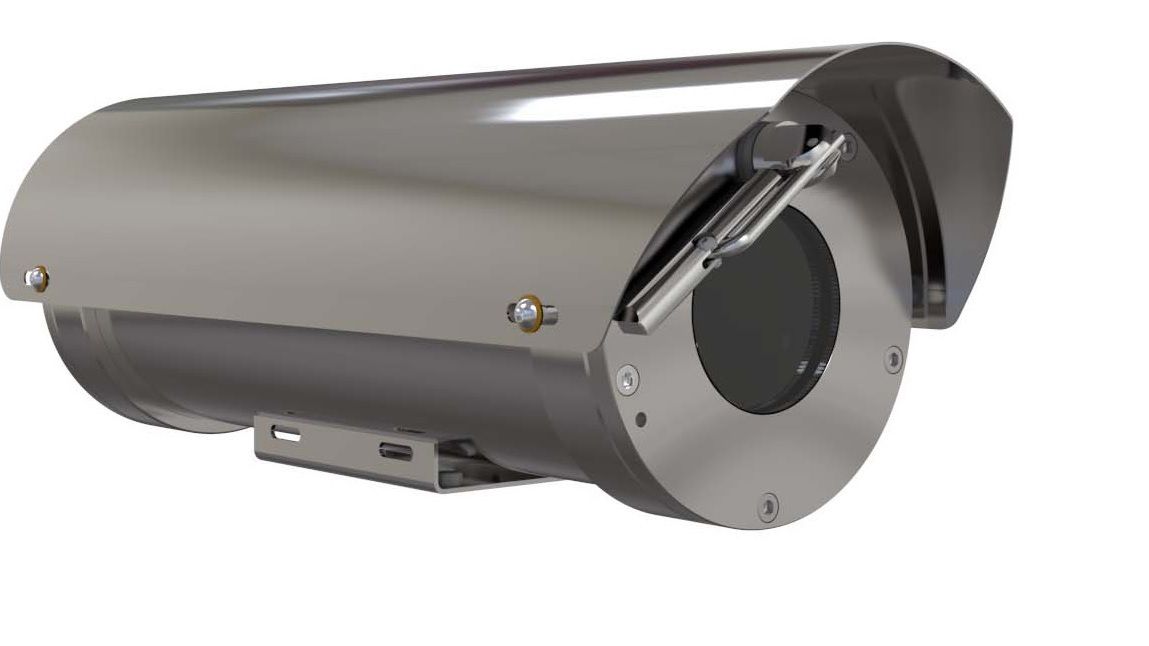

Samsung TNO-X6320E2F2WT1-M 2 Megapixel Explosion Proof Zoom Camera, 32x Lens
SKU
TNO-X6320E2F2WT1-M
Model No
TNO-X6320E2F2WT1-M
$9,961.25
Product Highlights
- 2 MP (1920 x 1080) resolution
- 4.44-142.6mm (32x) optical zoom, 16x digital zoom
- H.265, H.264, MJPEG triple codec, WiseStream II
- DIS with built-in Gyro sensor
- Day & Night (ICR), WDR (150dB)
Speak to an expert
The Hanwha Vision TNO-X6320E2F2WT1-M is a robust 2 Megapixel Explosion Proof Zoom Camera designed for demanding environments. With a powerful 32x optical zoom lens and advanced features like triple codec support and built-in video analytics, this camera offers exceptional performance while ensuring safety and reliability in hazardous conditions.
Hanwha Vision TNO-X6320E2F2WT1-M Camera Features
- 2 MP (1920 x 1080) resolution for crystal-clear imaging, ensuring high-quality surveillance.
- 4.44-142.6mm (32x) optical zoom and 16x digital zoom for versatile viewing options, allowing detailed monitoring from a distance.
- H.265, H.264, MJPEG triple codec support enhances video compression efficiency, saving bandwidth without compromising quality.
- Built-in DIS with Gyro sensor provides stability in video recording, reducing motion blur for clearer footage.
- Day & Night (ICR) functionality with WDR (150dB) ensures optimal performance in varying light conditions, enhancing visibility.
- Advanced Video Analytics allows for intelligent monitoring, helping to detect and respond to incidents swiftly.
- Dual SDXC memory slots facilitate extensive storage options for continuous recording and easy retrieval of footage.
- Electro-polished 316L stainless steel construction ensures durability and resistance to corrosion, suitable for harsh environments.
- Camera window made of toughened glass protects the lens from impact and environmental damage.
- Integrated Fiber Optics and optional wiper enhance functionality in adverse weather conditions, maintaining clear visuals.
- Operates on a supply voltage of 110 VAC, making it compatible with standard power systems.
Detailed Camera Specifications
| Model | TNO-X6320E2F2WT1-M |
| Resolution | 2 Megapixel (1920 x 1080) |
| Optical Zoom | 32x (4.44-142.6mm) |
| Digital Zoom | 16x |
| Codec Support | H.265, H.264, MJPEG |
| Stabilization | DIS with Gyro sensor |
| WDR | 150dB |
| Video Analytics | Yes |
| Memory Slots | Dual SDXC |
| Material | Electro-polished 316L stainless steel |
| Window Material | Toughened glass |
| Power Supply | 110 VAC |
| Temperature Range | -40°C ~ +60°C (-40°F ~ +140°F) |
| IP Rating | IP66/IP67, IP68 |
| Certification | cLCus C1/D1, INMETRO |
SKU  | TNO-X6320E2F2WT1-M |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 32X |
| Mount Type | Bracket Required, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 110vAC |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec) |
| Image Device | 1/2.8" 2.4 MP CMOS |
| Image Pixels Total | 1981(H) x 1288(V), 2.55 MP |
| Image Pixels-Effective | 1944(H) x 1212(V), 2.35 MP |
| Minimum Scene Illumination | Color : 0.05 Lux (1/30 sec, F1.6), B/W : 0.005 Lux (1/30 sec, F1.6) |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | 37W Maximum |
| Privacy Zone | 24 Zones of rectangle zone |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive scan |
| Weatherproof | IP66/67, IP68 |
| Zoom Ratio | Optical 32x |
| Digital Noise Reduction | 2D+3D noise filter |
| Mirror | Off |
| Angle of View | H : 61.8?(Wide) ~ 2.19?(Tele) / V : 36.2?(Wide) ~ 1.24?(Tele) |
| Motion Detection Tracking | 8ea, Polygonal |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
