Samsung TNO-X6320E2F2WT1-C 2 Megapixel Explosion Proof Zoom Camera, 32x Lens
SKU
TNO-X6320E2F2WT1-C
Model No
TNO-X6320E2F2WT1-C
$11,020.55
Product Highlights
- 2 MP (1920 x 1080) resolution
- 4.44-142.6mm (32x) optical zoom, 16x digital zoom
- H.265, H.264, MJPEG triple codec, WiseStream II
- DIS with built-in Gyro sensor
- Day & Night (ICR), WDR (150dB)
Speak to an expert

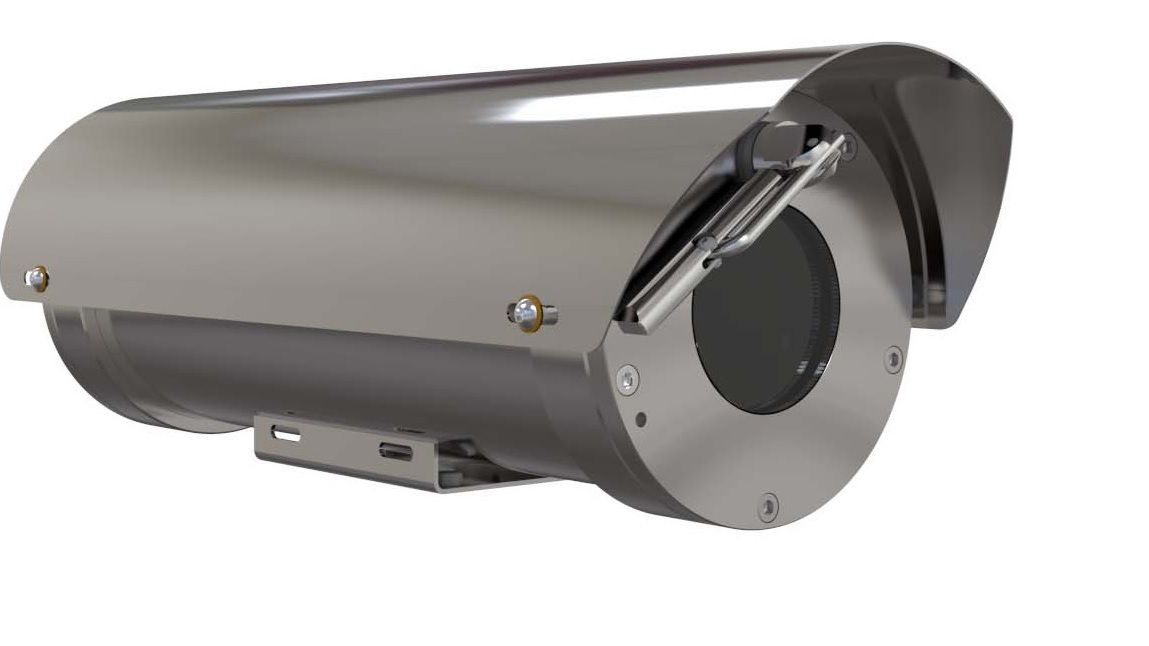

2 Megapixel Explosion Proof Zoom Camera, 32x Lens
- The TNO-X6320E2F2WT1-C from Hanwha Vision is a high-performance 2 Megapixel Explosion Proof Zoom Camera featuring a powerful 32x optical lens. Designed for extreme environments, this camera offers superior image quality and reliability with robust construction, making it ideal for hazardous locations. Its advanced features such as H.265 compression and built-in gyro sensor ensure exceptional performance and clarity in various conditions.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Digital Zoom
Flickerless
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Weather Resistant
WDR
Camera Features
| 2 MP (1920 x 1080) resolution | Video Analytics, dual SDXC memory slots |
| 4.44-142.6mm (32x) optical zoom, 16x digital zoom | Electro-polished 316L stainless steel on all welded assemblies |
| H.265, H.264, MJPEG triple codec, WiseStream II | Camera window in toughened glass |
| DIS with built-in Gyro sensor | Integrated Fiber Optics & Optional Wiper |
| Day & Night (ICR), WDR (150dB) | Supply voltage 110 VAC |
Additional Hanwha Vision Products
SKU  | TNO-X6320E2F2WT1-C |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 32X |
| Mount Type | Bracket Required, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 110vAC |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec) |
| Image Device | 1/2.8" 2.4 MP CMOS |
| Image Pixels Total | 1981(H) x 1288(V), 2.55 MP |
| Image Pixels-Effective | 1944(H) x 1212(V), 2.35 MP |
| Minimum Scene Illumination | Color : 0.05 Lux (1/30 sec, F1.6), B/W : 0.005 Lux (1/30 sec, F1.6) |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| OSD Menu | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Power Consumption | 37W Maximum |
| Privacy Zone | 24 Zones of rectangle zone |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive scan |
| Weatherproof | IP66/67, IP68 |
| Zoom Ratio | Optical 32x |
| Digital Noise Reduction | 2D+3D noise filter |
| Mirror | Off |
| Angle of View | H : 61.8?(Wide) ~ 2.19?(Tele) / V : 36.2?(Wide) ~ 1.24?(Tele) |
| Motion Detection Tracking | 8ea, Polygonal |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
