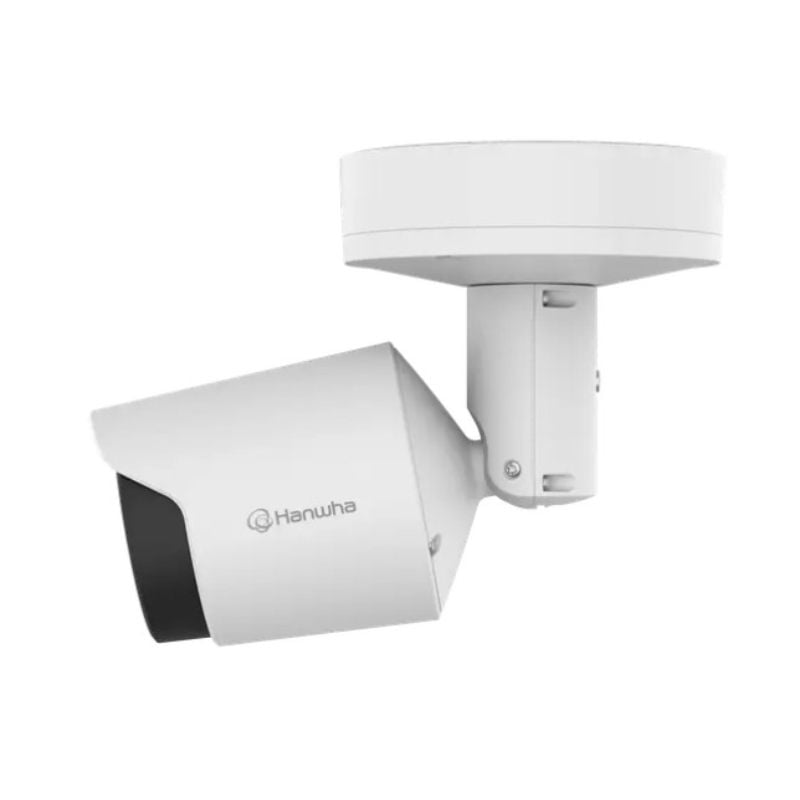

Hanwha Vision TNO-C4080T 1280 X 960 Network IP VGA AI Tele Lens Thermal Camera with 60mm Lens, White
SKU
TNO-C4080T
Model No
TNO-C4080T
$12,075.00
Product Highlights
- Upscaling up to 1280x960 resolution
- Max. 30fps@all resolutions (H.265/H.264, MJPEG)
- MIL-STD, NEMA 4X, NEMA TS Rated
Speak to an expert
Powered by WN8, Network AI Thermal Compact Bullet Camera, 640 x 480 (uncooled); ＜16mK (NETD), Max 1280 x 960 @ 30fps resolution support, 60mm fixed focal lens (HFoV: 10.3°), Triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support, Analytics events based on AI engine: Object detection (Person/Vehicle/Vessel), Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Analytics events: Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), PTZ handover, built-in SD card slot (1x1TB), integrated back box, IP66/IP67, NEMA4X, NEMA TS2 (2.2.7~2.2.9), MIL-STD-810H, IK10, PoE/12VDC, white color.
Features
- Upscaling up to 1280x960 resolution
- Max. 30fps@all resolutions (H.265/H.264, MJPEG)
- MIL-STD, NEMA 4X, NEMA TS Rated
SKU  | TNO-C4080T |
|---|---|
| Features | Audio, Auto Gain Control, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 1.2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 60mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | ø107.3 x 275mm(ø4.22/10.83") |
| Image Device | Uncooled micro bolometer (640x480) |
| Operating Humidity | 0~95% RH(non-condensing) |
| Operating Temperature | -40°C~+60°C(-40°F~+140°F) |
| Power Consumption | Max. 7.8W, typical 7.4W, Max. 8.1W, typical 7.8W |
| Privacy Zone | 8point Polygonal zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog |
| Weatherproof | IP66, IP67 |
| Angle of View | Horizontal: 49.1°, Vertical: 36.4°, Diagonal: 62.3° |
| Motion Detection Tracking | 8point Polygonal zones |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
