Hanwha Vision TNO-6010M 2 Megapixel Outdoor Mobile Front Facing Network Camera, 2.8mm Lens
SKU
TNO-6010M
Model No
TNO-6010M
$489.00
Product Highlights
- 2 Megapixel (1920 x 1080) resolution
- 60fps@all resolutions (H.265 / H.264)
- [email protected] (Color), [email protected] (B/W)
- Built-in 2.8mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
Speak to an expert

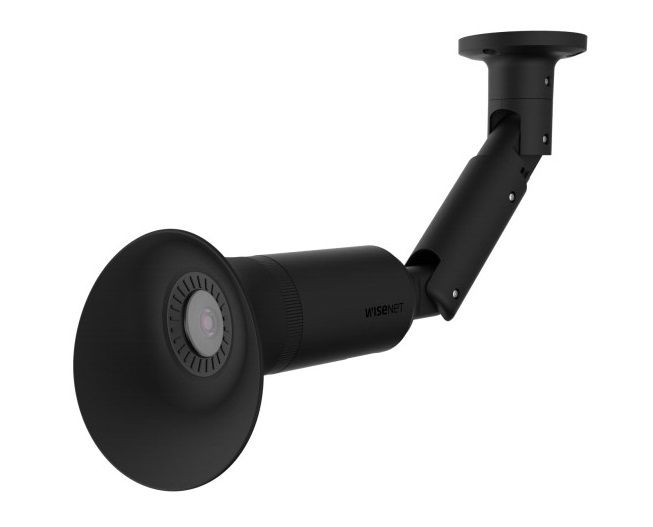

2 Megapixel Outdoor Mobile Front Facing Network Camera, 2.8mm Lens
- The Hanwha Vision TNO-6010M is a high-performance 2 Megapixel outdoor mobile front-facing network camera specifically designed for in-vehicle applications. This camera excels with its 60fps video capability, advanced video analytics, and robust construction, making it ideal for a variety of environments. With features like True Day/Night functionality and fog detection, it provides clear and reliable surveillance, ensuring safety and security on the road.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 2 Megapixel (1920 x 1080) resolution | Vibration resistant, railway rolling stock certified, EN045545-2, NFPA 130, BSS 7239, DIS with built-in gyro sensor, Serration and Nylock for release prevention |
| 60fps@all resolutions (H.265 / H.264) | SD/SDHC/SDCX memory slot (Maximum 256GB) |
| [email protected] (Color), [email protected] (B/W) | IP66, NEMA4X, IK10 |
| Built-in 2.8mm fixed lens | PoE, LDC, M12 connector with PoE |
| H.265, H.264, MJPEG codec supported, Multiple streaming | Adjustable length & dual joint design to adapt to vehicle |
| Day & Night (ICR), WDR (150dB) | Rubber lens hood to prevent windshield glare |
| Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Enter/Exit, (Dis) Appear, Face detection, Digital auto tracking, Motion detection |
Additional Hanwha Vision Products
SKU  | TNO-6010M |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø62 x 372mm (2.44Øx14.65") w/o hood, Adjustable length +0-63mm |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2 MP CMOS |
| Image Pixels Total | 1,945(H) x 1,097(V) 2.16M |
| Minimum Scene Illumination | Color: 0.04Lux (F2.0), B/W: 0.004Lux (F2.0) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) |
| Power Consumption | 8W (Maximum), 4.3W (Typical) |
| Privacy Zone | Off / On (32ea, polygonal zones), Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive Scan |
| Weatherproof | IP66 |
| Digital Noise Reduction | SSNR V (2D + 3D noise filter) (Off / On) |
| Mirror | Off / On |
| Angle of View | H: 113.7Ëš / V: 61.5Ëš / D: 134.5Ëš |
| Rotation Angle | ±90˚ |
| Motion Detection Tracking | Off / On (8ea, 8point polygonal zones) |
| Back Light Compensation | WDR / BLC / HLC (Masking / Dimming) |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Including mercury & sodium) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
