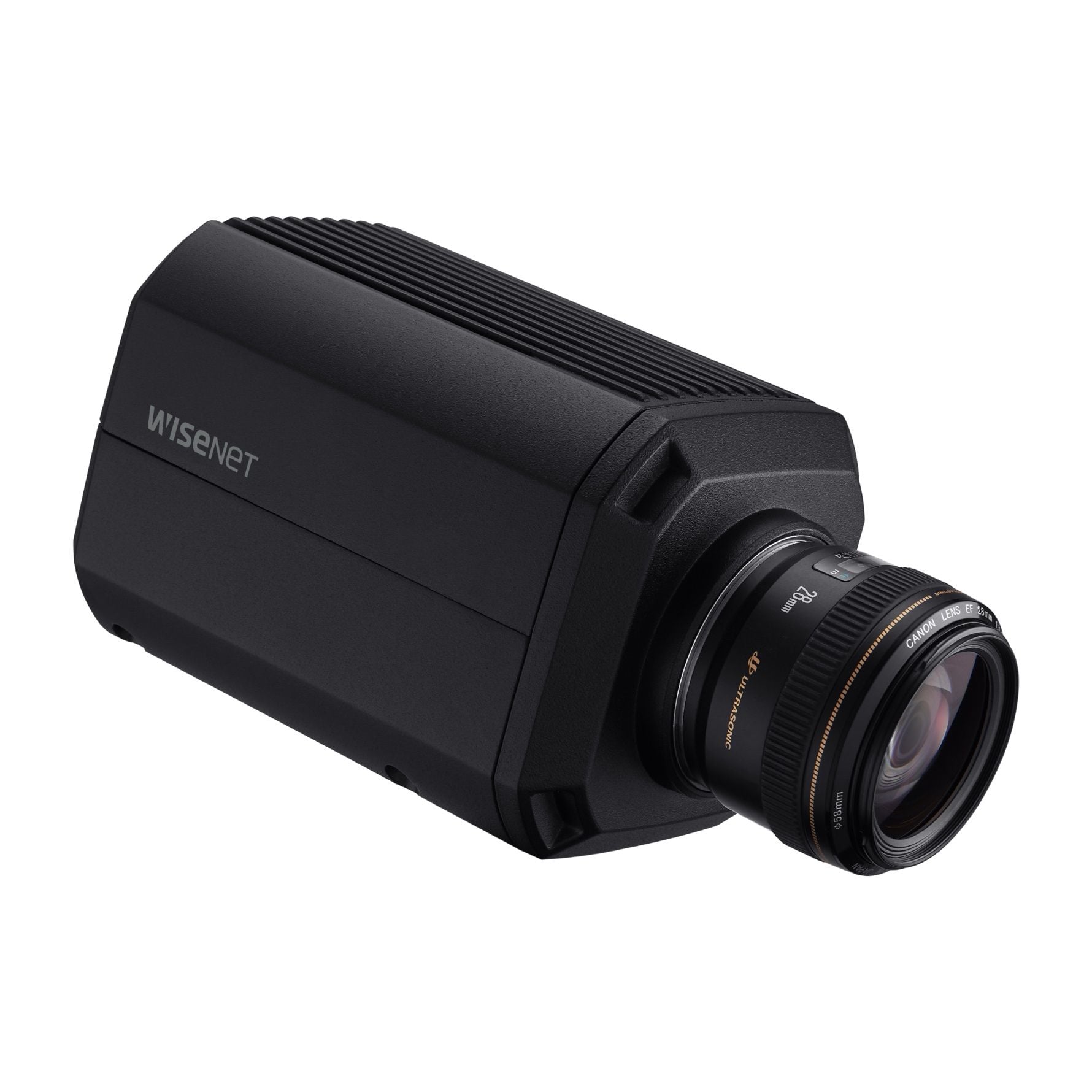

Samsung TNB-9000 8K and 33 Megapixel Network Camera
SKU
TNB-9000
Model No
TNB-9000
$7,800.00
Product Highlights
- 43.3mm full-frame CMOS Image Sensor
- 15fps@8K, 20fps@24MP, 30fps@15MP, 60fps@4K
- Compatible with Canon EF mount Lens
- HDMI (1080p 30fps) Video Output
- H.265/H.264 : Main/High, MJPEG triple codec streaming
Speak to an expert
8K and 33 Megapixel Network Camera
- The Hanwha Vision TNB-9000 8K UHD Network Camera is a cutting-edge surveillance solution that combines remarkable image quality with advanced features. With an impressive 33 Megapixel output from its 43.3mm full-frame CMOS Image Sensor, this camera captures even the finest details. It supports high frame rates, intelligent AI-driven analytics, and compatibility with Canon EF mount lenses, making it versatile for various professional applications. Its superior streaming capabilities and robust connectivity enhance its effectiveness for surveillance needs.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Motion Detection
ONVIF
Privacy Masking
WDR
Camera Features
| 43.3mm full-frame CMOS Image Sensor | H.265/H.264: Main/High, MJPEG triple codec streaming |
| 15fps@8K, 20fps@24MP, 30fps@15MP, 60fps@4K | Single Micro SD slot (Up to 256GB) |
| Compatible with Canon EF mount Lens | WiseStream? support |
| Intelligent video analytics based on AI (Object detection/classification, Attribute, BestShot) | RJ-45, SFP slot (100/1000Mbps) |
| HDMI (1080p 30fps) Video Output | HPoE (IEEE802.3bt, Class5), 12VDC |
Additional Hanwha Vision Products
SKU  | TNB-9000 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 33 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | 120(W)x118.1(H)x179(D)mm |
| Electronic Shutter | Minimum / Maximum / Anti flicker (1/5 ~ 1/12,000sec) |
| Image Device | 43.3mm Full-frame CMOS |
| Image Pixels-Effective | 7680(H)x4320(V) |
| Minimum Scene Illumination | Color : 0.015Lux(F1.4, 1/30sec), B/W : 0.0015Lux(F1.4, 1/30sec) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | 0°C ~ +45°C(32°F ~ +122°F) |
| Power Consumption | PoE: Maximum 30W, typical 20W, 12VDC: Maximum 26W, typical 18W |
| Privacy Zone | 6ea, Rectangular |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
