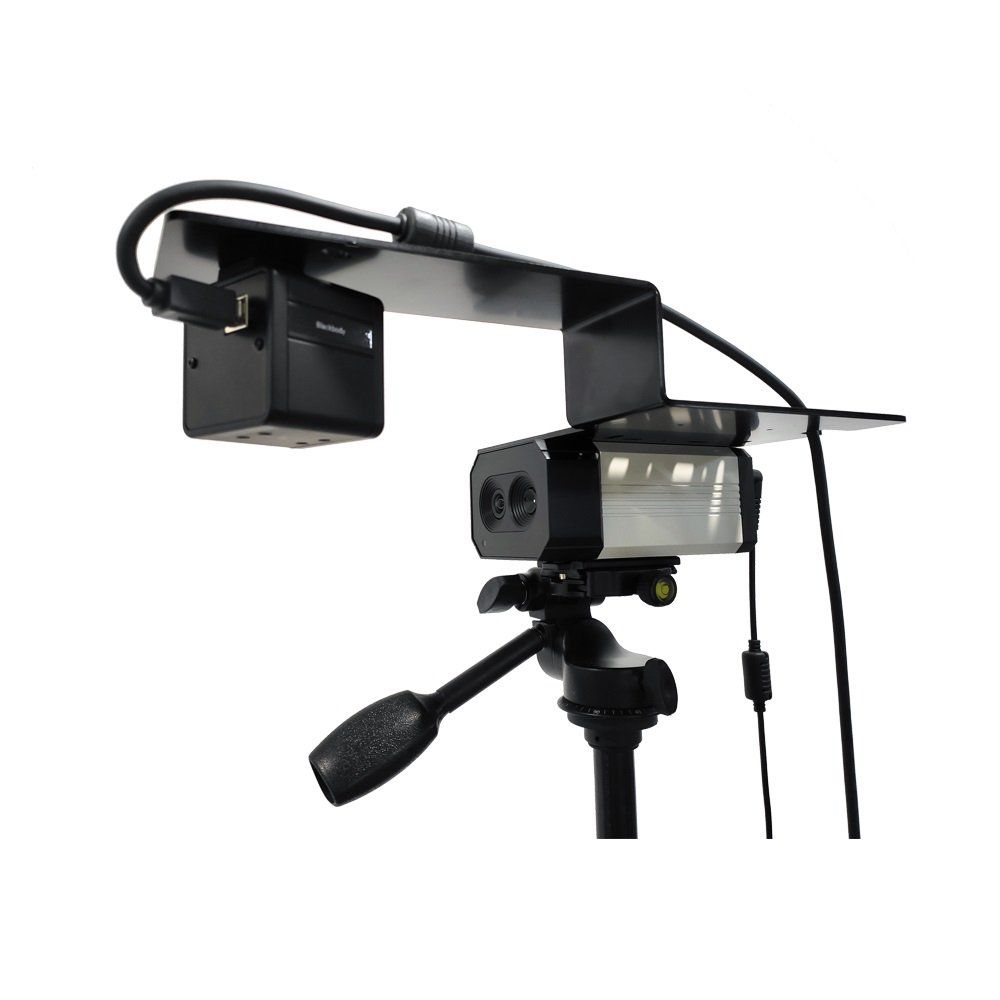

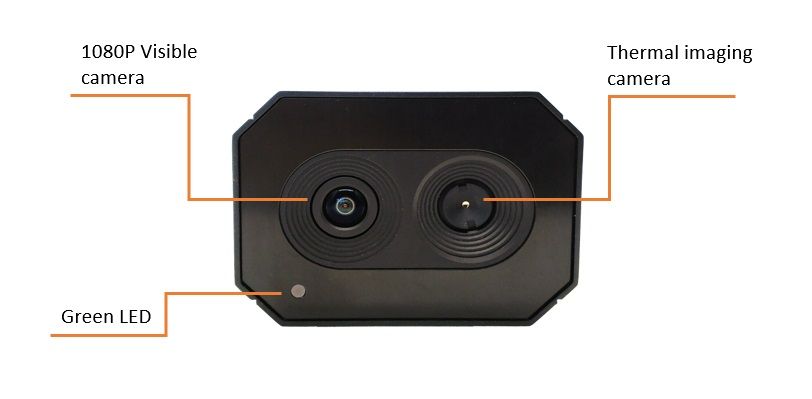

KJB TMT30BB 30 Person Thermal Image Body Temperature Camera
SKU
TMT30BB
Model No
TMT30BB
$2,999.00
Product Highlights
- High Temperature Screening Accuracy ± 0.3°C with Blackbox 0.1°C (0.18°F)
- The thermal imaging camera can automatically measure the human body without any configuration, with or without Face mask
- People just walk through without stopping and the system will detect the body temperatures
- Increase Temperature screening accuracy with the Blackbox Modual
- Ethernet and HDMI port
Speak to an expert
The KJB TMT30BB 30 Person Thermal Image Body Temperature Camera is an advanced thermal imaging solution designed for quick, safe, and accurate detection of human body temperatures. Ideal for high-traffic locations, this camera can screen up to 30 individuals simultaneously without any software setup. Equipped with a blackbody module for continuous calibration, it ensures precise temperature measurement, alerts for fevers, and captures images of individuals, promoting safety in various environments.
KJB TMT30BB Camera Features
- High Temperature Screening Accuracy: ± 0.3? with Blackbox 0.1°C (0.18°F) for reliable measurements.
- Automatic Functionality: Can measure body temperatures with or without face masks without prior configuration, enhancing accessibility.
- Non-Stop Detection: Allows individuals to walk through without stopping, increasing efficiency in busy areas.
- Enhanced Screening Accuracy: The Blackbox module improves temperature detection for better safety assurance.
- Connectivity Options: Equipped with Ethernet and HDMI ports for versatile integration and connectivity.
- Wide Temperature Range: Measures temperatures from 86F to 113F for broad applicability.

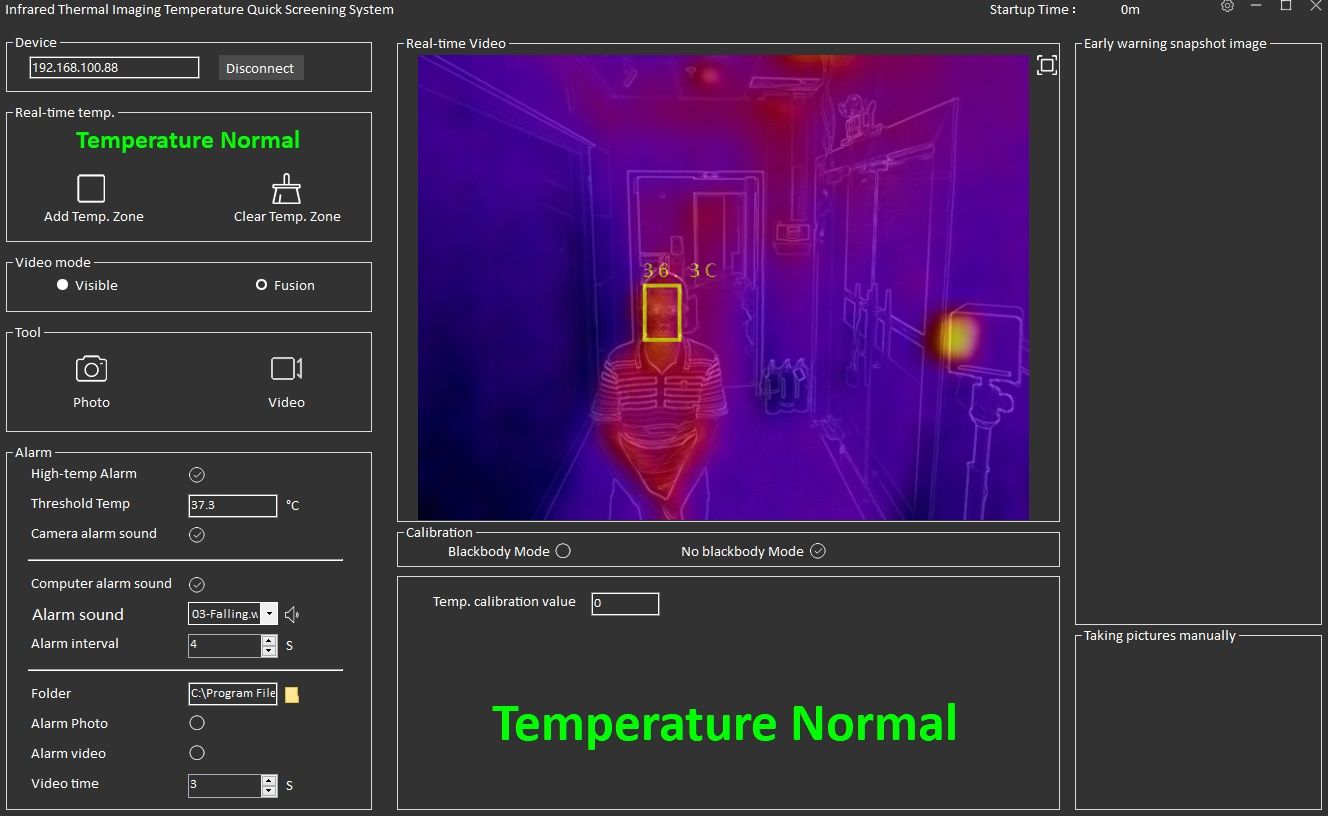

- Comprehensive Monitoring: Displays temperature readings, abnormal temperature warnings, and recording capabilities for thorough oversight.
- Cost-Effective Solution: Reduces costs and infection risks associated with temperature screening in workplaces.
- Operational Efficiency: Automates detection to minimize manpower and cross-contamination risk.
- Versatile Interface: Includes Power 12V, Network RJ45, HDMI, Alarm Out, and USB 2.0 for extensive functionalities.
- Data Storage: Saves detection results to a local drive or USB flash drive for easy access.

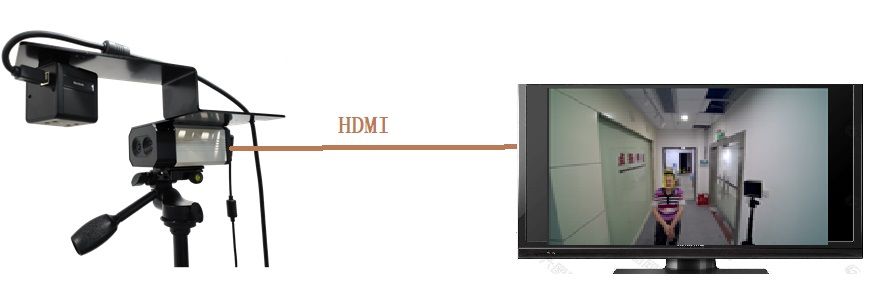

- Flexible Viewing Options: Monitor via web interface (Internet Explorer only), dedicated software, or HDMI for TV viewing.

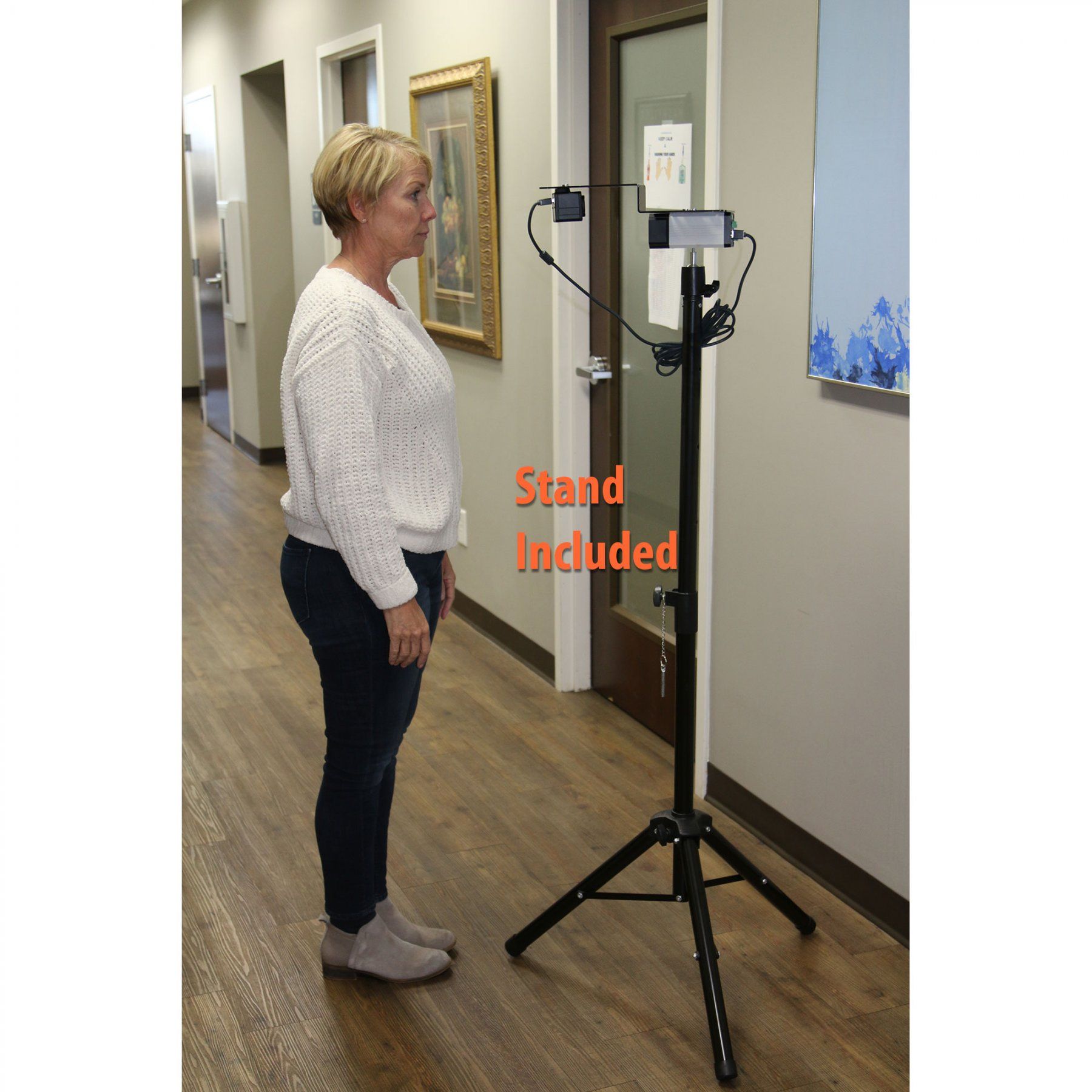

- Included Tripod: Comes with a tripod for easy positioning and stability during operation.
KJB TMT30BB Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | KJB TMT30BB |
| Screening Capacity | Up to 30 individuals simultaneously |
| Measurement Accuracy | ± 0.3? with Blackbox 0.1°C (0.18°F) |
| Temperature Range | 86F to 113F |
| Connectivity | Ethernet, HDMI, RJ45, USB 2.0, Alarm Out |
| Power Input | 12V |
| Recording Capability | Captures images and records video of detected individuals |
| Calibration | Automatic with Blackbody module |
| Alarm Function | Visual and auditory alert for abnormal temperatures |
| Software Compatibility | Web interface for monitoring (Internet Explorer required) |
| Included Accessories | Tripod |
SKU  | TMT30BB |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Digital Noise Reduction, Facial Recognition |
| Manufacturer | KJB |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Mount Type | Bracket Required |
| Durability | Indoor |
| Voltage | 12vDC |
| Dimensions (W x H) | 129mm x 73mm x 61mm (L x W x H) |
| Minimum Scene Illumination | 0.5 L ux @ (F1.8, AGC ON) |
| Operating Temperature | +10°C ~ +50°C （50°F ~122°F |
| S/N Ratio | ≥55dB |
| Digital Noise Reduction | 2D & 3D |
| Back Light Compensation | Supported |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
