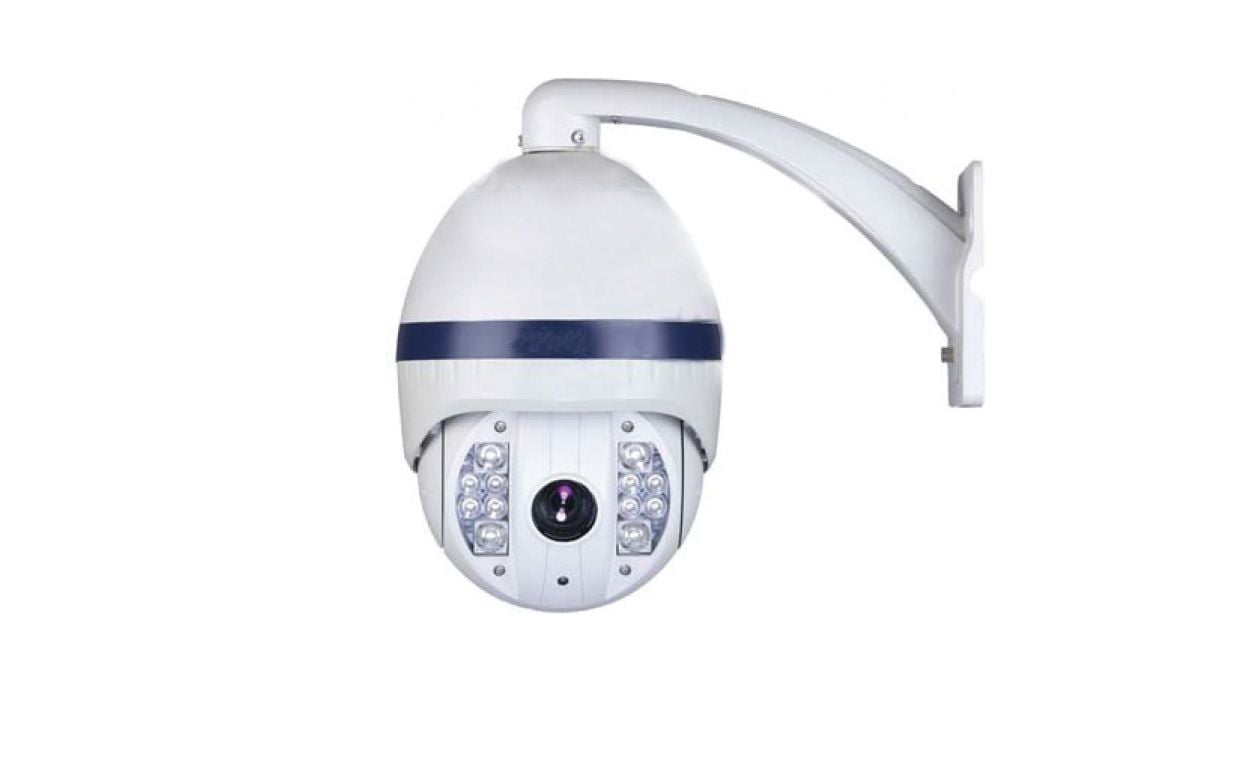

Dedicated Micros SV-SD8-1080-22-IR 2 Megapixel Network IR Outdoor PTZ Camera, 22x Lens

Model No
Product Highlights
    • 1920x1080p HD Resolution
    • 22x Optical Zoom
    • 100m IR Distance
    • MPEG4 / JPEG Compression
    • Closed IPTV – Via Switch

The SV-SD8-1080-22-IR from Dedicated Micros is a smartVu PTZ dome camera is a high definition IP Camera offering up to 2 megapixel image streams in a choice of compression formats. With direct configuration from associated Network video recorder (SD Advanced NVR), the SmartVu PTZ contains a powerful suite of enterprise-scale capabilities and The new HD SmartVu product range is also designed for Dedicated Micros next generation of video surveillance - Closed IPTV. Perfect for monitoring large areas Dedicated Micros SmartVu PTZ features 22x optical zoom and 100m IR distance ensuring vital details are not missed, even at large distances.


  • 1920x1080p HD Resolution
  • 22x Optical Zoom
  • 100m IR Distance
  • MPEG4 / JPEG Compression
  • Closed IPTV – Via Switch
  • MultiMode – Save Up To 50% On Recording
  • TransCode – Optimised Remote Playback
  • Alarm Handling (With SD Advanced DVR/NVR)
  • IK10 Vandal Resistant
  • IP66 Rated
  • Up To 10 Streams Generated
  • Video Motion Detection (VMD)
SKU  SV-SD8-1080-22-IR
Features  Motion Detection Tracking, Weather Resistant
Manufacturer  Dedicated Micros
Camera Signal     Network IP
Connection Type  Wired
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    22X
Mount Type  Wall
Compression Method    JPEG
Durability    Weather Resistant
Voltage  24vAC
Automatic Gain Control (AGC)    Auto / Fixed 8~102dB
Dimensions (W x H)  396.5(w)x368(h)mm
Electronic Shutter    Auto/user 1/5 – 1/50,0000 ; 50/60Hz software selectable
Image Device    1/4” 2.0 MP CMOS
Image Pixels-Effective1920(h)x1080(v)p
IR LEDs  12
IR Wavelength  850mm
Minimum Scene Illumination  0.1 Lux @ F1.2 ( Colour ), (0 lux with IR) IR LEDs
Operating Humidity    10~85%RH
Operating Temperature    -40°C To 60°C
Protocols  HTTP, TCP/IP, UDP/IP, RTSP, FTP, PoE, NTP. Unicast And Multicast Supported
Weatherproof    IP66
Angle of View    55° ~ 2.9°
Rotation Angle360°
Back Light Compensation  BLC /HLC
IR Distance  100m/328.08ft
Auto Gain Control    Yes
Day/Night    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
There are no related videos.
Downloads & Manuals
Availability: In stock
