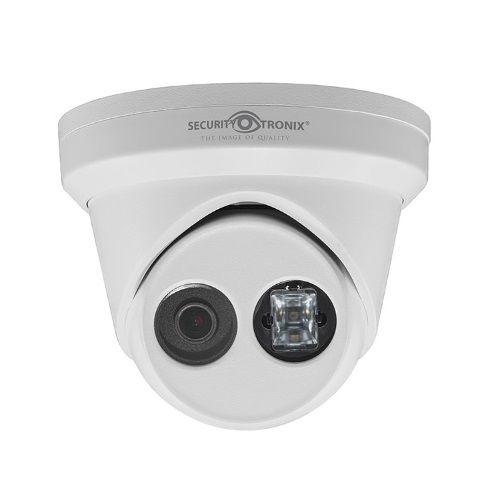

SecurityTronix ST-IP8FTD 8 Megapixel IR Outdoor Dome Camera with 4mm Lens
SKU
ST-IP8FTD
Model No
ST-IP8FTD
$227.67
Product Highlights
- 1/2.5″ Progressive Scan CMOS
- 3840 x 2160@15 fps
- 4mm fixed lens
- Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- H.265+, H.265, H.264+, H.264
Speak to an expert
The ST-IP8FTD from SecurityTronix is a top-tier 8 megapixel outdoor IR dome camera featuring a 4mm lens, designed for exceptional clarity and security. With Ultra HD resolution and advanced video analytics capabilities, this camera enables precise monitoring and detailed playback. The robust design includes an IP67 weather rating, ensuring durability in harsh conditions, while advanced infrared technology allows for clear visibility even in total darkness. Enhanced connection features ensure seamless integration for remote access and incident management.
SecurityTronix ST-IP8FTD Camera Features
- High Resolution: 8 Megapixel clarity ensures crisp images for detailed monitoring and analysis.
- Advanced IR Technology: IR LEDs allow visibility up to 98 feet in complete darkness, enhancing security during nighttime.
- IP67 Weather Rating: Designed to withstand harsh outdoor conditions, ensuring reliability in any environment.
- Remote Configuration: Easily configure camera settings and access footage remotely, promoting efficient security management.
- Multiple Video Streams: Supports various streaming options for NVR recording and mobile device access, ensuring flexible monitoring solutions.
- Video Analytics: Features like object detection and face recognition enhance security through advanced surveillance capabilities.
- Poe Support: Allows for power and data transmission through a single cable, simplifying installation and reducing wiring costs.
- Wide Dynamic Range (WDR): Minimizes lighting issues by providing clear images despite varying light conditions, enhancing overall image quality.
- Micro SD Support: Built-in card slot for local storage options, allowing for easy video retention and access.
SecurityTronix ST-IP8FTD Detailed Camera Specifications
| Sensor | 1/2.5” Progressive Scan CMOS |
| Max Resolution | 3840 x 2160@15 fps |
| Lens | 4mm fixed lens |
| Low Light Color Performance | 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Behavior Analyses | 2 types available |
| Wide Dynamic Range | 120dB WDR |
| Noise Reduction | BLC/3D DNR/ROI |
| Ingress Protection | IP67 rated |
| Storage Capacity | Built-in micro SD/SDHC/SDXC card slot, up to 128 GB |
SKU  | ST-IP8FTD |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Infrared, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Camera: 5"× 3.8" (Φ 127.3 x 95.9 mm), Package: 5.9" x 5.9" x 5.6" (150 x 150 x 141 mm) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/2.5" Progressive Scan CMOS |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22 °F to +140 °F (-30 °C to +60 °C) |
| Power Consumption | 112 VDC, 0.5 A, max. 6.0W PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 7.5 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, Q oS, IPv6, Bonjour |
| Video Output | RJ45 |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
