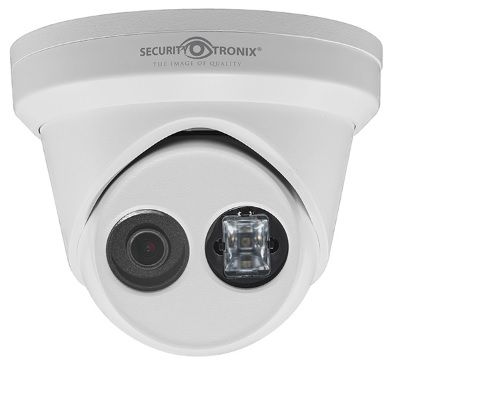

SecurityTronix ST-IP8FTD-2-8 8 Megapixel IR Outdoor Dome Camera with 2.8mm Lens
SKU
ST-IP8FTD-2-8
Model No
ST-IP8FTD-2-8
$226.54
Product Highlights
- 1/2.5″ Progressive Scan CMOS
- 3840 x 2160@15 fps
- 2.8mm fixed lens
- Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- H.265+, H.265, H.264+, H.264
Speak to an expert
The ST-IP8FTD-2-8 from SecurityTronix is an advanced 8 megapixel outdoor IR dome camera featuring a 2.8mm lens, designed to deliver exceptional video quality with Ultra HD resolution. It offers real-time monitoring and sophisticated video analytics capabilities, allowing users to engage in detailed live view and playback of recorded footage. With PoE functionality, robust weatherproofing, and infrared capabilities for low-light environments, this camera is perfect for enhancing security in various outdoor settings.
SecurityTronix ST-IP8FTD-2-8 Camera Features
- High Resolution: The 8 Megapixel (3840 x 2160) sensor allows for exceptionally detailed imagery, ideal for clear identification during surveillance.
- Color Sensitivity: Operates at 0.01 lux for color images and 0 lux with IR, enabling visibility at night with a reach of up to 98 feet.
- Power Over Ethernet: Simplifies installation by allowing power and data to be transmitted over a single cable, reducing wiring clutter.
- Weather-Resistant: With an IP67 rating, it is built to withstand harsh outdoor conditions, ensuring durability and longevity.
- Behavioral Analytics: Equipped with advanced features for object placement, removal detection, and more, enhancing the security monitoring experience.
- Multiple Video Streams: Provides flexibility for recording and viewing directly on mobile devices or through NVR systems.
- Compact Design: The streamlined dome design makes it suitable for a variety of settings without being intrusive.
- Wide Dynamic Range: The 120dB WDR technology ensures clear imaging in varying lighting conditions, particularly in bright backlight scenarios.
- Local Storage: Integrated micro SD card slot supports up to 128 GB storage, allowing for direct recording without reliance on external devices.
- Video Compression: Supports H.265+, H.265, H.264+, and H.264 formats for efficient video encoding and reduced bandwidth usage.
Detailed Specifications for SecurityTronix ST-IP8FTD-2-8
| Image Sensor | 1/2.5” Progressive Scan CMOS |
| Resolution | 3840 x 2160 @ 15 fps |
| Lens | 2.8mm fixed lens |
| Color Sensitivity | 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Video Compression Formats | H.265+, H.265, H.264+, H.264 |
| Behavior Analyses | 2 Behavior analyses |
| Wide Dynamic Range | 120dB WDR |
| Image Adjustments | BLC/3D DNR/ROI |
| Weather Rating | IP67 |
| Storage Capacity | Built-in micro SD/SDHC/SDXC card slot, up to 128 GB |
SKU  | ST-IP8FTD-2-8 |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Infrared, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Camera: 5"× 3.8" (Φ 127.3 x 95.9 mm), Package: 5.9" x 5.9" x 5.6" (150 x 150 x 141 mm) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/2.5" Progressive Scan CMOS |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -22 °F to +140 °F (-30 °C to +60 °C) |
| Power Consumption | 112 VDC, 0.5 A, max. 6.0W PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 7.5 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, Q oS, IPv6, Bonjour |
| Video Output | RJ45 |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
