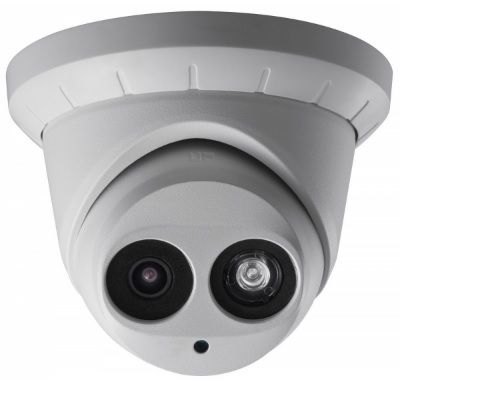

SecurityTronix ST-IP4FTD 4 Megapixel IR Outdoor Dome Camera with 4mm Lens
SKU
ST-IP4FTD
Model No
ST-IP4FTD
$185.00
Product Highlights
- Up to 4 megapixel high resolution
- Full HD 2560 x 1440 @ 30fps video
- Three streams
- 4mm fixed lens
- 120dB Wide Dynamic Range
Speak to an expert
The ST-IP4FTD from SecurityTronix is a 4 Megapixel IR Outdoor Dome Camera designed to enhance your security setup with its robust features. Offering high-resolution imaging, advanced video compression, and reliable performance in challenging lighting conditions, this camera ensures clear footage and superior monitoring capabilities, making it an ideal choice for outdoor surveillance.
SecurityTronix ST-IP4FTD Camera Features
- Resolution: Up to 4 megapixel high resolution for crystal-clear images.
- Video Quality: Full HD 2560 x 1440 @ 30fps video ensures high-quality video capture.
- Multi-Stream Technology: Supports three streams, providing flexibility in viewing options.
- Lens Type: 4mm fixed lens for a designated field of view.
- Dynamic Range: 120dB Wide Dynamic Range allows for detailed images in varied lighting conditions.
- Noise Reduction: 3D Digital Noise Reduction minimizes graininess in low light.
- Backlight Compensation: Enhances video clarity in challenging lighting environments.
- Region of Interest: Customize viewing areas for optimized surveillance.
- Power Options: Compatible with DC12V & PoE for easy installation.
- Video Compression: Supports H.265+, H.265, H.264+, H.264 to optimize storage and network bandwidth.
- IR Technology: High performance EXIR LED provides up to 98’ IR range for nighttime visibility.
- Camera Adjustability: 3-axis adjustment for precise camera angle positioning.
- Weather Protection: IP67 weather-proof protection to withstand harsh outdoor conditions.
- Advanced Features: 2 Behavior analysis and face detection for enhanced security monitoring.
- Storage Capacity: Micro SD/SDHC/SDXC card slot supports up to 128 GB for convenient local storage.
SecurityTronix ST-IP4FTD Detailed Specifications
| Resolution | Up to 4 Megapixels |
| Video Output | 2560 x 1440 @ 30fps |
| Lens Type | 4mm Fixed Lens |
| Wide Dynamic Range | 120dB |
| IR Range | Up to 98 Feet |
| Noise Reduction | 3D Digital Noise Reduction |
| Power Supply | DC12V & PoE |
| Weather Rating | IP67 |
| Storage | Micro SD/SDHC/SDXC up to 128GB |
SKU  | ST-IP4FTD |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Infrared, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | SecurityTronix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Camera: 127.3 × 95.9mm (5.0 × 3.8”), Package: 150 x 150 x 141mm (5.9 x 5.9 x 5.6”) |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/3” Progressive Scan CMOS |
| Minimum Scene Illumination | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C – 60 °C (-22 °F – 140 °F) |
| Power Consumption | max. 6W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Video Output | RJ45 |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal FOV: 78°, Vertical FOV: 42°, Diagonal FOV: 93° |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
